Altronix AL1012XB220 12VDC 10A Power Supply Board
Overview

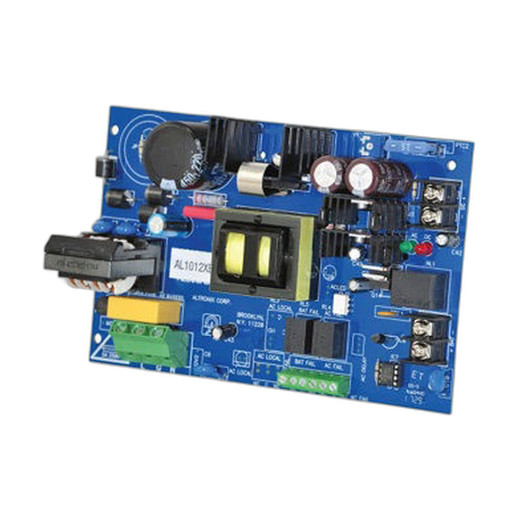

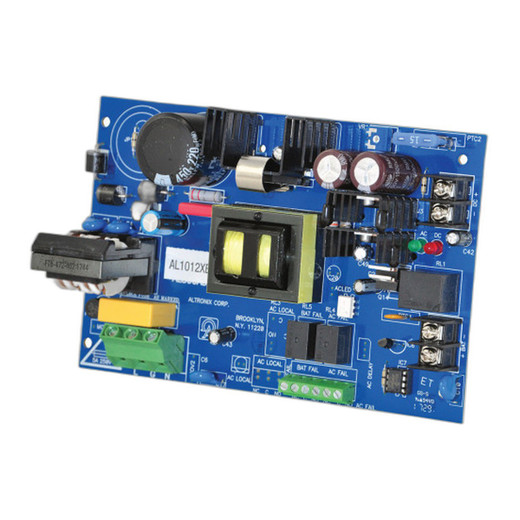

The Altronix AL1012XB220 is a compact AC-to-DC power supply and battery charger designed for 220VAC input environments — common in European, Middle Eastern, and Asian deployments. This board converts 220VAC (working range 198–256VAC) at 50/60Hz into regulated 12VDC at 10A continuous output, with integrated battery charging, AC failure supervision, and automatic switchover to backup power. The sealed form factor (7.25" × 4.5" × 1.75") mounts directly in enclosures or equipment racks without requiring separate power modules, reducing BOM complexity in distributed surveillance and access control installations.
Key Features & Benefits
- 12VDC 10A continuous output: Supplies sufficient power for multiple networked cameras, door controllers, or access readers simultaneously. At 10A, you can typically run 6–8 standard IP cameras or 2–3 higher-draw PTZ units from a single board, avoiding cascaded power supplies in compact deployments.
- 220VAC input (198–256VAC), 50/60Hz: Direct compatibility with standard AC mains in regions outside North America (IEC 60038 Annex A). No step-down transformer required, eliminating an extra failure point. Input current draw maxes at 1.3A, meaning a standard 16A circuit can safely feed multiple AL1012XB220 boards.
- Integrated sealed lead-acid or gel battery charging: Automatically charges a connected backup battery (SLA or gel-type) during normal AC operation. When AC fails, the board switches instantaneously to battery power via Form C relay contacts, maintaining power to critical devices with zero handoff delay — essential for access control during mains loss.
- AC failure detection with Form C contacts: Provides dry contacts that signal when mains power is lost, allowing integration with alarm panels, building management systems, or remote monitoring. Enables alerts or automated shutdown sequences if extended outage is detected.
- Battery presence detection with Form C contacts: Confirms a battery is connected and healthy before relying on backup power. Prevents silent failures where a disconnected or failed battery leaves the system unprotected during an outage.
- Short circuit and thermal overload protection: Built-in fusing and thermal cutoff prevent cascading failures if a connected device shorts or draws excessive current. Input fusing at 5A/250V protects the AC side; battery fuse rated 15A/32V protects the backup circuit. Recoverable after the fault clears — no field replacement of the board required if a camera or reader briefly draws too much current.
- Filtered and regulated output: Noise and ripple suppression ensure connected cameras, controllers, and sensors receive clean 12VDC, reducing false triggers in motion detection or erratic behavior in access readers. Regulation maintains nominal voltage even as load varies.
- Compact board format: At 0.75 lb, it integrates into small enclosures, DIN rail mounts, or distributed outdoor cabinets without taking up significant space. The small footprint makes it practical for remote or pole-mounted installations where real estate is limited.
Integration & Compatibility
The AL1012XB220 is designed for integration into surveillance and access control enclosures where 12VDC distributed power is required. The regulated output and battery charging capability make it suitable for power supply backbone roles in mid-size installations — typically feeding multiple 12VDC cameras, IR illuminators, PTZ controllers, or door strikes. The Form C relay contacts for AC failure and battery presence integrate with networked video recorders or access control panels that require mains supervision and backup power status indication. The board's compact dimensions and integrated charger reduce the need for separate UPS modules in field deployments, lowering total cost of ownership and simplifying commissioning in power distribution planning for distributed camera networks.
Operating Conditions
Temperature range of 0°C to 49°C (32°F to 120°F) suits indoor enclosures and well-ventilated outdoor cabinets in temperate climates. If sustained ambient temperatures exceed 49°C, consider thermal management or site relocation to prevent output drift or thermal shutdown. The board carries a Lifetime Limited Warranty, covering manufacturing defects.
Frequently Asked Questions
Q: Can the AL1012XB220 charge a lithium-ion battery backup instead of sealed lead-acid?
A: No. The charge circuit is designed specifically for sealed lead-acid (SLA) and gel-type batteries. Lithium chemistries require different charge profiles and protection circuits. Using a lithium battery with this board may damage the battery or create safety hazards.
Q: What happens if both AC mains and the backup battery fail simultaneously?
A: Output voltage will collapse immediately. Connected equipment will lose power. The battery presence and AC failure contacts will alert downstream monitoring systems, but there is no secondary backup — the AL1012XB220 is a single-stage supply. Design your architecture with redundant power paths (dual feeds, dual boards) if critical uptime is required.
Q: Does the AL1012XB220 integrate with ONVIF cameras directly, or do I need a separate controller?
A: The AL1012XB220 is a power supply only — it has no network interface or ONVIF stack. It supplies 12VDC power to ONVIF cameras; the cameras communicate over Ethernet independently. Use the AC failure and battery presence contacts to signal a building management system or NVR if mains loss occurs.
Q: Can I parallel multiple AL1012XB220 boards for higher current output?
A: Parallel operation is not recommended without a current-sharing circuit. Mismatched output voltages between boards can cause one board to back-feed the other, risking component damage. For deployments exceeding 10A, specify a higher-capacity single supply or use isolated distribution boards designed for parallel operation.
Q: What is the typical battery charging time with the AL1012XB220?
A: Charge time depends on battery capacity (Ah) and charge current. The board does not specify a maximum charge current — it is determined by the battery's C-rate and the board's internal design. Refer to the datasheet or contact the manufacturer with your battery specifications for estimated charge time.
Q: Is the AL1012XB220 suitable for outdoor cabinet mounting, or does it need climate control?
A: The operating temperature range of 0°C to 49°C limits use to mild climates or climate-controlled enclosures. Outdoor cabinets in high-temperature regions (desert, equatorial) will exceed the 49°C upper limit, degrading output regulation and triggering thermal shutdown. Size your enclosure with thermal management (ventilation, shade) or upgrade to a higher-temp-rated alternative.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The AL1012XB220 solves a specific but common pain point: powering 12VDC distributed equipment in 220VAC regions without field-assembling transformer + charger + relay stacks. At 10A continuous output with integrated battery charging and Form C mains supervision, this board consolidates three separate functions into one compact DIN-rail mount. If you're commissioning access control or surveillance nodes in European or Asian facilities, the 220VAC input (198–256VAC working range) eliminates a failure mode — no step-down transformer to fail, fewer connections, fewer points of service call.
Technical Highlights:
- 10A @ 12VDC continuous: Sufficient for 6–8 standard IP cameras or 2–3 PTZ units sharing a single board. Current draw is predictable; budget 1.5–2W per megapixel camera as a rough guide, and the AL1012XB220 will handle 5–6 MP units or lower without stress.
- Instantaneous AC-to-battery switchover: Form C relay contacts detect mains loss and signal downstream systems with zero delay. No "blink" or momentary dropout when the board transitions to battery power — critical for door strikes and access readers that must hold state during brief outages.
- 5A/250V input fusing + 15A/32V battery fuse: Separate protection paths prevent a shorted camera or reader from nuking both the AC and battery circuits simultaneously. If a field unit draws excessive current, the battery circuit remains alive to power other devices while the input fuse trips.
- Filtered and regulated output: Low ripple keeps motion detection and IR illuminator control stable — noisy 12VDC can cause false alerts or erratic PTZ movement.
Deployment Considerations:
- Sealed lead-acid battery charging is reliable but slow at room temperature — budget 8–12 hours for a 12Ah SLA from a deep-discharge state. Plan commissioning timelines accordingly; do not expect a fully discharged battery to charge in under 4 hours.
- Operating temperature ceiling of 49°C (120°F) is a real constraint. Outdoor pole-mounted cabinets in southern Europe or Middle East can exceed this in summer; thermal management (ventilation, shade cloth, or a larger enclosure) is not optional — it's a design requirement. Exceeding the limit triggers thermal shutdown and output dropout.
- Form C relay contacts are supervisory only — they signal AC loss and battery presence but do not provide isolation. If a downstream device fails short, it can back-feed the supply rails. Use appropriate fusing or circuit protection on each load branch.
- No parallel-operation support without external current-sharing modules. If you need more than 10A and are tempted to gang two boards, resist; the voltage regulation mismatch will cause one board to try to "support" the other, burning out internal components.
The AL1012XB220 is the right choice for mid-tier distributed power backups in 220VAC facilities — particularly access control nodes, small camera clusters, or outdoor lighting controllers where the combination of mains voltage conversion and integrated battery charging eliminates a cluttered power architecture. It is not a UPS replacement for servers or NVRs (those need higher capacity and multi-stage regulation), nor is it suitable for high-temperature outdoor deployments without active cooling. But for a compact, sealed, field-proven board that handles AC supervision and battery charging in one package, this board earns its place in the power infrastructure lineup.
