Altronix T2AXK3F8S 8-Door Access Power Integration Kit
Overview
The Altronix T2AXK3F8S is a pre-assembled kit designed to simplify the integration of Axis Communications access control hardware with Altronix power distribution. This specific configuration, the Trove2AX2, includes an enclosure, a backplane, a 24VDC @ 6A power supply/charger (eFlow6NB), an 8-fuse protected access control module (ACMS8), a 12VDC voltage regulator (VR6), and an 8-fuse protected power distribution module (PDS8). It is engineered to accommodate an AXIS A1810-B module, allowing for up to eight doors to be managed within a single enclosure. This solution streamlines board layout and wire management, directly reducing installation time and labor costs for multi-door access control deployments.
Compatibility
This kit is specifically designed for integration with Axis Communications A1810-B access control modules. The Altronix Trove2 enclosure and backplane system are built to house these Axis components alongside Altronix power and distribution modules, creating a unified system for up to eight doors.
Installation Notes
The eFlow6NB power supply within this kit operates on 120VAC input and provides a 24VDC output at 6A continuous current. It features Class 2 power-limited outputs and overvoltage protection. The system supports up to four 12VDC/12AH sealed lead acid or gel type batteries for failover upon AC loss, with larger battery capacities requiring separate enclosures. The operating temperature range for the unit is 0° C to 49° C.
What's in the Box

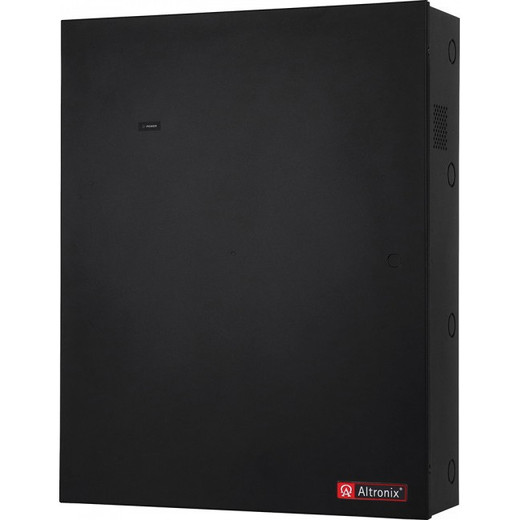

- 1x Trove2 Enclosure
- 1x TAX2 Axis Communications/Altronix Backplane
- 1x eFlow6NB 24VDC @ 6A Power Supply/Charger
- 1x ACMS8 8-Fuse Protected Access Control Module
- 1x VR6 12VDC Voltage Regulator
- 1x PDS8 8-Fuse Protected Power Distribution Module
