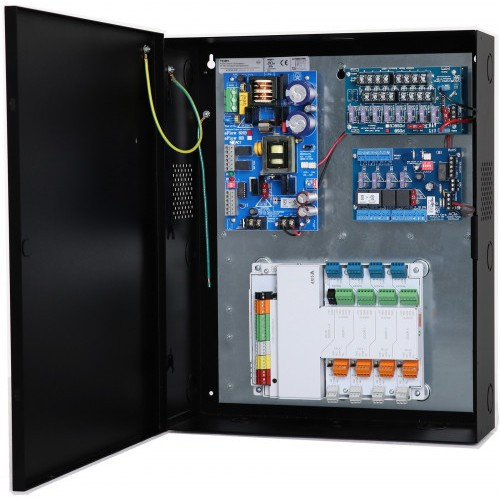

Altronix T1AXK3F4 Selectable Output Power Supply
Overview
The Altronix T1AXK3F4 is a configurable power supply designed for access control systems, providing reliable 12VDC or 24VDC output with battery backup. This unit is suitable for installations requiring a continuous 6A power draw, such as powering multiple door controllers, card readers, and electric locks. Its integrated battery backup ensures system operation during AC power outages, a critical requirement for security applications. The enclosure is designed for secure wall mounting.
Compatibility
This power supply is engineered for use with various access control systems that require selectable 12VDC or 24VDC power. It supports up to 6A continuous output and includes a 1A auxiliary output for additional devices. The unit is compatible with standard 7AH/12VDC backup batteries. It features AC fail and battery supervision with Form "C" contacts, allowing integration with alarm panels or monitoring systems for immediate notification of power status changes.
Installation Notes
Input voltage is 120VAC at a maximum of 3.5A. Output voltage is selectable between 12VDC and 24VDC. The unit provides 6A continuous maximum output and an additional 1A unswitched auxiliary output. Operating temperature range is 0ºC to 49ºC. Storage temperature is -20ºC to 70ºC. Relative humidity should be maintained at 85% +/- 5%. Low DC power shutdown engages at 71-75% of battery capacity to preserve battery life. The enclosure dimensions are 18” x 14.5” x 4.62”.
What's in the Box
- 1x Altronix T1AXK3F4 Power Supply Unit
- 1x Mounting Template
