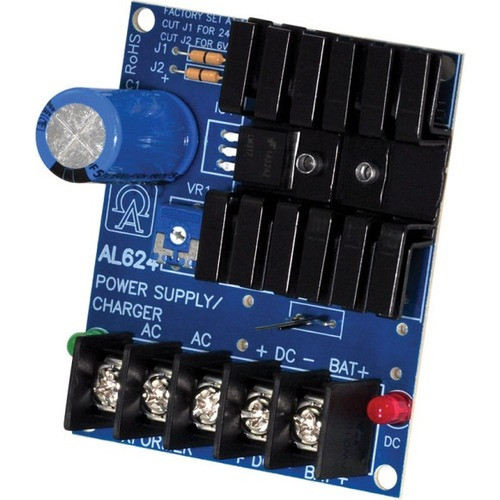

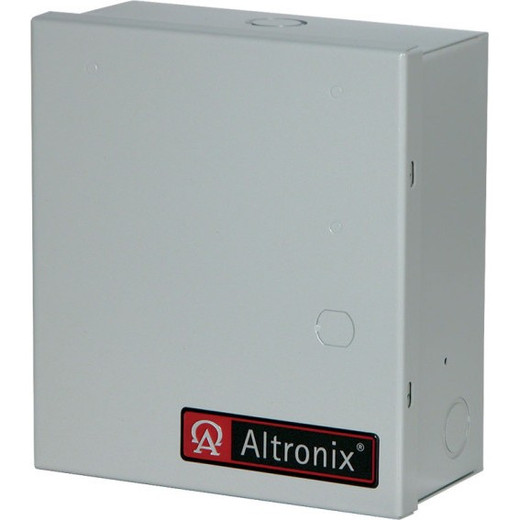

Altronix AL624TE220 Power Distribution Module
Overview
The Altronix AL624TE220 is a power distribution module designed to efficiently distribute AC power to multiple surveillance or access control devices. It is particularly useful in installations where a single, higher-capacity AC power source needs to be segmented and delivered to various endpoints, simplifying wiring and management. This unit is intended for use within a larger power system, such as Altronix's own power distribution cabinets, to provide localized, fused outputs for cameras, encoders, or door controllers. The AL624TE220 model specifically offers 24VAC outputs, suitable for a wide range of common security devices.
Compatibility
This module is designed to integrate with Altronix power distribution enclosures and power supplies. It is compatible with systems requiring multiple fused 24VAC outputs, commonly found in CCTV installations utilizing traditional AC-powered cameras or IR illuminators, and access control systems with 24VAC powered components. It is intended to be used in conjunction with a primary AC power source, such as a transformer or a larger Altronix power supply unit, to provide individual fusing for up to 16 devices.
Installation Notes
The AL624TE220 requires a main AC input voltage source (typically 220VAC as indicated by the model suffix) and provides sixteen fused 24VAC outputs. Each output is individually fused, allowing for isolation of faults and preventing a single device failure from impacting others. The unit requires connection to a suitable AC power source and the installation of appropriate fuses (not included) based on the current draw of the connected devices. Ensure proper grounding and adherence to local electrical codes during installation.
What's in the Box
- 1x AL624TE220 Power Distribution Module
