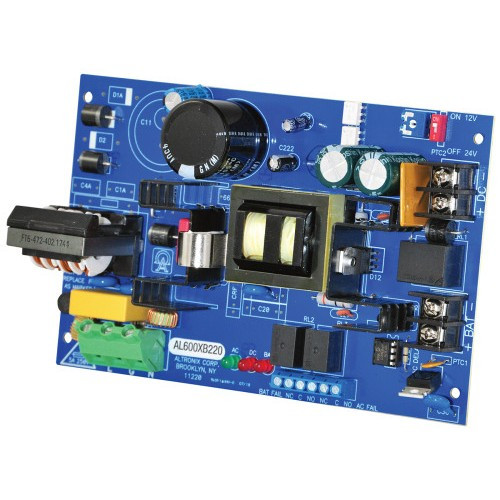

Altronix AL600XB220 PWR SPLY & ACM8 - AL600ACMJ220

Altronix AL600ACMJ220 Power Supply & ACM8 Module

Overview

The Altronix AL600ACMJ220 is a combined power supply and access control module designed to manage up to eight doors. It integrates a 24VDC power output with the Altronix ACM8 module, simplifying installation and reducing wiring complexity for access control systems. This unit is suitable for applications requiring centralized power and control for multiple entry points.

Compatibility

This unit is designed to integrate with Altronix power distribution systems and is compatible with most standard access control systems that require 24VDC power and relay outputs for door control. It specifically works with the Altronix ACM8 module for managing up to eight individual doors, each with its own relay output and status LEDs.

Installation Notes

The AL600ACMJ220 requires a 220VAC input. Ensure proper ventilation around the unit as it generates heat during operation. Wiring for each door should be run back to the module's terminal blocks. The module utilizes standard dry contact relay outputs, requiring appropriate interface wiring for the connected access control panels or locking devices.

What's in the Box

• 1x Altronix AL600ACMJ220 Power Supply & ACM8 Module
