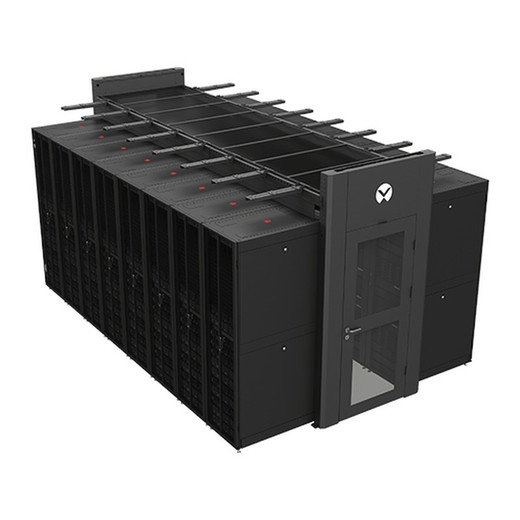

Vertiv VC-RF-0005 Aisle Containment Roof Panel
Overview
The Vertiv VC-RF-0005 is a 600mm x 1200mm (2 ft x 4 ft) black aisle containment roof panel engineered for hot-aisle and cold-aisle separation systems in data center environments. Aisle containment is one of the highest-impact, lowest-cost thermal efficiency upgrades available to a data center operator — and the roof panel is the component that closes off the top of the contained aisle, preventing conditioned air from mixing with exhaust air before it reaches server intakes. Without effective containment, your CRAC or CRAH units work significantly harder to maintain target inlet temperatures, driving up PUE and energy costs.
The VC-RF-0005 (often searched as VC RF 0005) covers a standard 2x4 ft ceiling grid opening. Its black finish is consistent with the majority of Vertiv aisle containment system aesthetics, and the 600mm width aligns with standard 600mm-wide rack row footprints common across enterprise and colocation deployments.
Key Features
- 600mm x 1200mm panel footprint: Sized to span a standard two-rack-unit row width and a typical 4 ft ceiling grid bay — drops into existing Vertiv aisle containment frame infrastructure without cutting or shimming.
- Black finish: Matches standard Vertiv containment system aesthetics, keeping the installation visually consistent across the aisle row without mixed hardware appearances.
- Shrink panel design: Functions as a fill or closure panel within a modular containment roof system, allowing you to tile multiple panels across long aisle runs and close off any remaining open ceiling area not covered by active HVAC diffusers or lighting fixtures.
- Modular deployment: Panels are installed as part of a larger data center infrastructure containment system rather than as standalone units — calculate the number of panels needed based on total aisle ceiling area divided by the 0.72 m² panel coverage per unit.
Integration & Compatibility
The VC-RF-0005 is part of Vertiv's aisle containment product line. It is designed to integrate with Vertiv's containment frame and structure components. Before ordering, confirm your containment frame system accepts 600mm x 1200mm fill panels, and verify that your row spacing and ceiling grid module dimensions match the panel's nominal footprint. Vertiv offers a range of power and cooling infrastructure products — this panel is one component within a broader containment kit; additional structural framing, end caps, and door assemblies are typically specified alongside it.
If your aisle width differs from 600mm (e.g., 800mm rows are common in high-density GPU/compute deployments), a different panel width variant will be required. Do not assume this panel covers wider row configurations without confirming the aisle frame specification with your containment system documentation.
Frequently Asked Questions
Q: What are the exact dimensions of the VC-RF-0005?
A: The VC-RF-0005 measures 600mm wide by 1200mm deep (approximately 2 ft x 4 ft), covering 0.72 m² of ceiling area per panel.
Q: Is the VC-RF-0005 a standalone product or part of a system?
A: It is a component panel within a modular aisle containment system. Additional framing, end panels, and structural components from the Vertiv containment line are typically required to complete an aisle containment installation.
Q: What color is the VC-RF-0005?
A: The panel is black, consistent with standard Vertiv aisle containment system hardware aesthetics.
Q: Does the VC-RF-0005 fit standard 600mm rack rows?
A: Yes — the 600mm width is matched to standard 600mm-wide rack row footprints. If your row uses a different width (e.g., 800mm), a different panel variant is required.
Q: How many VC-RF-0005 panels do I need for my aisle?
A: Calculate your total aisle ceiling area (aisle length x aisle width) and divide by 0.72 m² (the coverage per panel). Round up to the nearest whole panel to ensure full coverage.
The VC-RF-0005 is a 600mm x 1200mm black fill panel — a straightforward but critical piece in any hot-aisle or cold-aisle containment build. On paper it looks like a commodity item, but the reality is that gaps in your containment roof are often the single largest source of bypass airflow in an otherwise well-designed raised-floor or overhead-supply environment. Getting the right panel count right the first time matters.
Technical Highlights:
- 600mm width: Matched to the most common enterprise rack row width — no field modification needed for standard 600mm row configurations, which accelerates installation and avoids custom fabrication costs.
- 1200mm depth: Covers a full 4 ft grid bay, the standard ceiling tile module dimension in most North American data center raised-floor designs, meaning panels tile predictably without partial cuts in typical deployments.
- Black finish: Consistent with Vertiv containment system hardware — important in colocation environments where mixed-finish panels can flag non-compliance with facility standards during audits.
Deployment Considerations:
- Confirm your containment frame system variant before ordering — Vertiv produces multiple containment frame families, and panel compatibility is frame-specific. Verify the VC-RF-0005 is listed for your frame SKU in the Vertiv containment system documentation.
- The 600mm width means this panel is not suitable for 800mm-wide aisle configurations without a matching 800mm variant — using a narrower panel leaves a 200mm gap that will bypass a meaningful portion of your containment benefit.
This panel is the right call for a standard 600mm-row cold-aisle or hot-aisle containment build in an enterprise data center or colocation cage where Vertiv containment framing is already in place — particularly where ceiling grid modules are on the standard 1200mm pitch and a black-finish system aesthetic is required.
