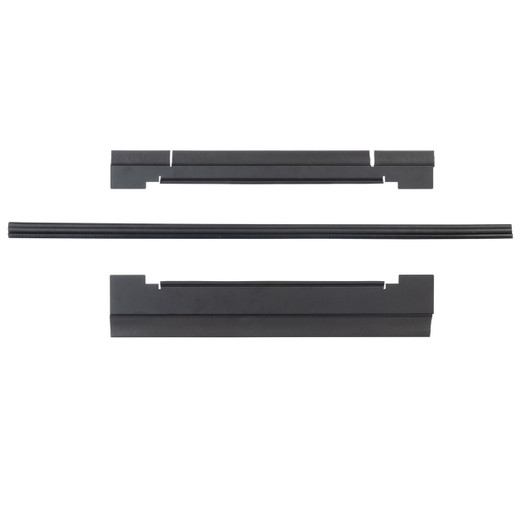

Panduit XG-ADS6B Air Dam Seal Kit

The Panduit XG-ADS6B air dam seal kit addresses a critical thermal management challenge in high-density data center environments: hot air recirculation. Designed specifically for 600mm-wide FlexFusion™ cabinets, this seal kit creates a continuous barrier along the entire perimeter where equipment rails meet side panels, the top cap, and floor. By eliminating bypass airflow paths, the XG-ADS6B ensures conditioned air reaches active equipment while preventing hot exhaust from mixing back into cold aisles—a common failure point in containment strategies that can spike equipment temperatures by 10-15°F and drive unnecessary CRAC unit cycling.

Key Features

Complete perimeter seal for 600mm FlexFusion™ cabinet equipment rails

Blocks bypass airflow at side panels, top cap, and floor interfaces

Black finish integrates with standard rack aesthetics

Single-kit coverage for full-height cabinet installation

RoHS compliant for environmental procurement requirements

Tool-free installation via compression fit

Air dams function as flexible barriers that conform to the irregular gaps created when rack-mounted equipment doesn't fill the entire cabinet width or when cable bundles create air paths around mounting rails. The XG-ADS6B addresses the specific dimensional tolerances of Panduit's 600mm FlexFusion cabinet line—where the equipment mounting rail sits inset from the cabinet's outer frame. Without this seal, conditioned air from raised-floor plenums or overhead diffusers follows the path of least resistance through these gaps rather than being drawn through equipment intakes. In a typical 42U cabinet populated at 60-70% capacity, unsealed perimeters can waste 20-30% of supplied CFM on bypass air that never contacts heat-generating components. The seal material compresses to accommodate the frame-to-rail tolerances while maintaining positive contact across temperature variations and cabinet loading cycles.

This seal kit is essential when implementing hot aisle/cold aisle containment in facilities where rack-level thermal discipline impacts PUE (Power Usage Effectiveness) targets. Data center operators upgrading legacy racks to contained environments will see immediate delta-T improvements across the cabinet face when bypass paths are eliminated. The kit is particularly critical in mixed-use rows where cabinet depths and equipment densities vary—conditions that defeat passive containment strategies. Installation occurs during the cabinet build phase or as a retrofit during equipment refresh cycles. The flexible seal material seats between frame interfaces without fasteners, allowing for quick deployment across multiple cabinets during maintenance windows. Facilities running compute, storage, and network gear that collectively generate 8-12kW per rack will see measurable improvements in equipment inlet temperatures when bypass air is blocked at the source.

The XG-ADS6B supports ASHRAE TC 9.9 thermal guidelines by maintaining intended air separation between supply and return streams. For integrators managing high-density deployments in enterprise data centers, colocation facilities, or on-premise server rooms, this seal kit is a foundational component that ensures cooling infrastructure investments actually reach the equipment they're meant to protect. RoHS compliance aligns with sustainability and environmental procurement standards required in regulated industries and green-certified facilities.
