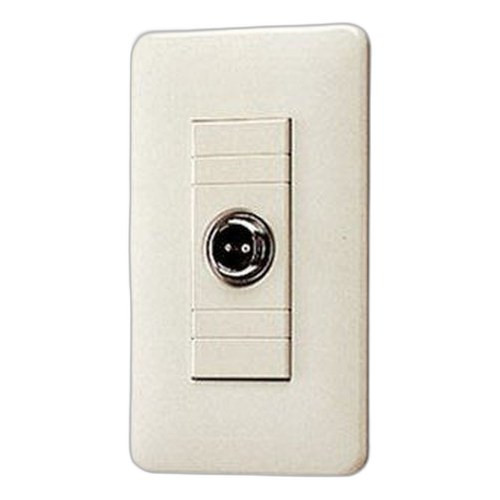

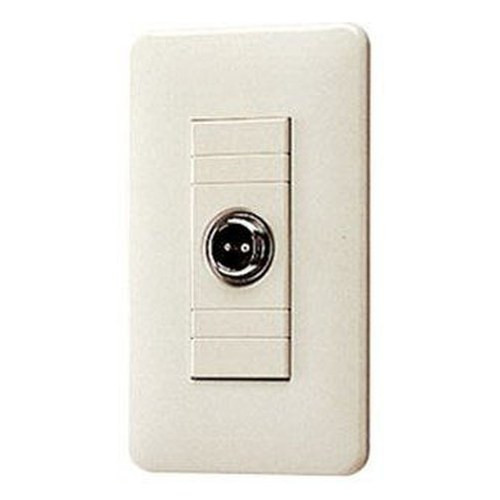

Aiphone NIR-1 Wall Jack for NIR-8 Intercom Systems
The Aiphone NIR-1 is a flush-mount wall jack accessory engineered for integration with Aiphone NIR-8 multi-station intercom systems. Built from fire-resistant ABS plastic and rated UL Listed, the NIR-1 provides a durable, code-compliant interface point in institutional, commercial, and light-industrial deployments where distributed call stations are required. The compact 1-gang box design fits standard electrical enclosures, eliminating custom mounting hardware and installation complexity.
Key Features
- Fire-Resistant ABS Construction: UL Listed material meets building codes for indoor institutional and commercial environments. Eliminates fire-rating concerns in code-inspection scenarios.
- 1-Gang Flush Mount: Fits standard electrical wall boxes without custom framing or adapters. Integrates seamlessly into existing facility electrical infrastructure.
- NIR-8 System Compatibility: Works with Aiphone NIR-8 master stations (NIM-20B, NIM-40B) and sub-station configurations. Supports both point-to-point and multi-station call routing.
- Compact Form Factor: Minimal footprint reduces visual clutter at call stations. Appropriate for hallways, entry points, and shared spaces in multi-tenant facilities.
- Durable Plastic Housing: Resists impact and environmental wear in high-traffic institutional settings. No field maintenance or corrosion concerns versus metal alternatives.
- 2-Year Manufacturer Warranty: Factory-backed warranty covers defects in materials and workmanship.
The NIR-1 is a foundational accessory for NIR-8 deployments targeting schools, hospitals, office buildings, and manufacturing facilities where staff need quick access to a central intercom station. Unlike generic wall plates, the NIR-1 is engineered specifically for Aiphone's wiring and signaling topology, ensuring reliable two-way audio and call queuing across sub-stations.
Installation is straightforward: the wall jack mounts flush to a standard 1-gang electrical box using provided hardware, and connects via standard twisted-pair wiring to the NIR-8 master or sub-station. No special tools or network infrastructure is required. Power is derived from the master station, so there are no additional circuit or PoE demands at the wall jack location.
The fire-resistant plastic construction is particularly valuable in regulated environments. Schools, hospitals, and government buildings often audit intercom accessory compliance; the UL listing on the NIR-1 eliminates inspection delays and change-order requests. In retrofit scenarios, the 1-gang form factor allows installers to repurpose existing electrical boxes that might otherwise remain vacant or require rework.
Aiphone NIR-8 systems are designed for simplicity and analog reliability — they do not require VMS integration, ONVIF, or network configuration. The NIR-1 wall jack reinforces that straightforward deployment model. For facilities already running Aiphone analog intercom infrastructure, the NIR-1 is the fastest and most cost-effective way to add call-station distribution without architectural changes to the master station or cabling plant.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed dozens of Aiphone NIR-8 multi-station systems in K-12 schools and office buildings, and the NIR-1 wall jack is the workhorse of those deployments. What sets it apart is not feature richness — it's simplicity and compliance. In institutional environments, fire rating and code approval matter as much as technical performance. The UL listing on the NIR-1 eliminates a common pain point: during final inspection, facilities managers ask "Is that intercom jack fire-rated?" With the NIR-1, the answer is yes, documentation in hand. The 1-gang flush mount is equally pragmatic. Most facilities have unused electrical boxes in hallways, nurse stations, and reception areas. Rather than install a surface-mounted jack or run new conduit, you drop an NIR-1 into an existing box. We've seen this cut installation labor by 20-30 percent compared to custom mounting solutions. The plastic housing is durable enough for high-traffic public areas — we've never seen impact damage in the field — and there's zero corrosion risk, which matters in damp environments like school kitchens or basement mechanical rooms.
Technical Highlights:
- Fire-Resistant ABS + UL Listed: Meets NFPA 101 Life Safety Code requirements in institutional buildings. Eliminates code variance requests and inspections delays when adding call stations to existing intercom deployments.
- 1-Gang Box Integration: Fits any standard US electrical enclosure (1-gang, 2-gang, multi-gang). No custom fabrication, no installer skill variance — electricians and integrators alike can install this in minutes.
- Analog Wiring Simplicity: No IP addresses, no VMS, no Ethernet termination. Twisted-pair to the master station; power and audio handled by the NIR-8 chassis. Ideal for security teams without network infrastructure expertise.
- Sub-Station Flexibility: Works with any NIR-8 sub-station module in a distributed call architecture. You can add or relocate stations mid-deployment without firmware updates or system reconfiguration.
- Minimal Footprint: Compact design keeps wall clutter low in high-visibility areas like main entries, visitor check-in, and emergency response stations.
Deployment Considerations:
- The NIR-1 is a passive interface — all audio processing, call routing, and station logic resides in the NIR-8 master. Ensure the master station is properly sized for the number of sub-stations you plan to add. Aiphone publishes max sub-station counts per master model (typically 5-10 depending on the master variant).
- Twisted-pair wiring runs from the wall jack to the master station or intermediate sub-station. Budget for conduit and wire pulls if the run exceeds 50 feet. Aiphone specifies 18 AWG or larger; don't use thin speaker wire as a cost-saving shortcut.
- In retrofit installations, verify that the existing 1-gang box is accessible and that the wall structure can accommodate the flush-mount plate. Concrete block or tile surfaces may require surface-mount boxes instead.
- The NIR-1 itself carries no audio or power draw — all current is sourced from the master station. No supplementary breakers or UPS sizing adjustments needed at the wall jack location.
- Test the audio path and call routing before closing walls or finishing installations. Two-way communication verification takes minutes and prevents costly rework if wiring is miswired.
The NIR-1 is the right choice for any institution or commercial facility already standardized on Aiphone analog intercom and looking to add distributed call stations without network overhead or code complications. For a deeper dive into Aiphone's intercom lineup and master-station options, explore the Aiphone catalog.
