Overview

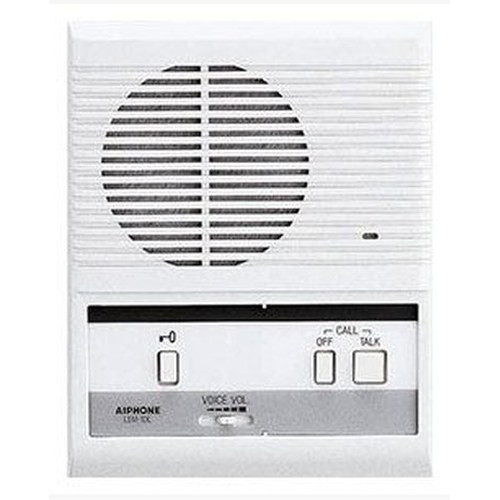

The Aiphone LEM-1DLC is a surface-mount master station engineered for multi-unit residential and light-commercial intercom systems where centralized entry control and distributed tenant communication are required. This model supports up to four master stations answering a single door station while maintaining independent door release capability at each unit — a practical design for buildings with lobby, security desk, and tenant station configurations. The LEM-1DLC (often searched as LEM 1DLC) integrates with Aiphone LE series door stations and extends wire runs up to 1,600 feet on 18 AWG cable, making it viable for larger residential complexes and small campuses.

Key Features

• Multi-Master Architecture: Supports up to 4 master stations answering a single incoming door call — each master can independently operate door release without blocking the others. Eliminates the need for a single point-of-failure answering station and distributes workload across tenant or staff positions.
• LE Series Compatibility: Direct integration with LE-D (surface mount), LE-DA (flush mount), and stainless steel door station variants (LE-SS, LE-SS-1G, LE-SSR) using standard 2-conductor shielded interconnect cable.
• Integrated N/O Door Release Contact: Rated 30V AC/DC at 1A, enabling direct control of electromagnetic locks, solenoid strikes, and electronic door latches without auxiliary relay modules. This 1A capacity suits single-door applications; larger installations may require external relay expansion.
• Push-to-Talk Simplex Communication: 100mW output drives clear voice across wire runs with half-duplex (one-way-at-a-time) design. Simplex operation is typical for single-door intercoms and eliminates cross-talk common in full-duplex systems, though it does require discipline from users to alternate speaking.
• Visual Privacy Indicator LED: Displays when another master station has answered an incoming door call — prevents confusion in multi-master deployments and provides user-friendly status feedback at each station.
• Flexible Mounting and Power: Wall or desk-surface mounting accommodates entry vestibules, security offices, tenant apartments, and lobby installations. Dual power input (16V AC at 4W max or 24V DC at 200mA max) adapts to existing building power infrastructure without requiring dedicated UPS-backed supply.
• Extended Cable Runs: Maximum 650 feet using 22 AWG or 1,600 feet using 18 AWG shielded cable between door and master — supports large single-building or multi-building campus deployments without need for signal repeaters.
• Adjustable Voice Volume: User-accessible volume control accommodates noisy lobbies and quiet offices without requiring technician intervention.
• Shielded Cabling Requirements: Door-to-master connections use 2-conductor shielded cable (Aiphone #822202 or #821802); inter-master station links require 3-conductor shielded cable (Aiphone #822203 or #821803) to manage control and release signaling. Plan cable infrastructure carefully — improper shielding or gauge will degrade voice quality and release responsiveness.

Integration and Deployment Topology

The LEM-1DLC functions as the control hub in an Aiphone LE series network. Each door station (LE-D, LE-DA, LE-SS variants) connects via 2-conductor shielded cable to one or more master units. In multi-master configurations, inter-station communication uses dedicated 3-conductor shielded cable to segregate answer-signal control from release-command signaling. Sub-stations and auxiliary units (LS-NVP/C) integrate into the same wired infrastructure, enabling growth from small 2–3 unit buildings to large residential complexes or campus entry control systems without proprietary hubs or network interfaces.

When to Choose a Different Model

If your deployment requires remote mobile answering, call forwarding to tenant phones, or video display at the entry point, the LEM-1DLC's analog design will not meet those needs — consider Aiphone's IP-enabled intercom product line. If you need to release multiple doors from a single master station or require programmable logic (conditional unlock based on time or identity), look to access control panels with relay outputs rather than a single-master door station system. The LEM-1DLC is optimized for straightforward audio intercom and local door release in wired, building-integrated deployments.

Frequently Asked Questions

Q: Can I mount the LEM-1DLC in a flush wall box, or is surface mount only?

A: The LEM-1DLC is designed for surface mounting on walls or desks. Flush-mount installation is not recommended without custom enclosure modification; consult the installation guide or contact the manufacturer for non-standard mount configurations.

Q: What gauge wire should I use for a 900-foot door-to-master run?

A: At 900 feet, use 18 AWG shielded cable (the LEM-1DLC supports up to 1,600 feet on 18 AWG). 22 AWG is limited to 650 feet and will experience voltage drop and audio degradation beyond that distance.

Q: If I have 4 master stations, can they all answer and release simultaneously?

A: The LEM-1DLC architecture allows up to 4 masters to answer the same incoming door call, but only one can active the door release at a time. The system uses push-to-talk (simplex) communication, so only one user speaks while others listen. Release control is independent per master, so each station can trigger its own solenoid or strike independently — useful if each master controls a different door or access point.

Q: Is the LEM-1DLC compatible with non-Aiphone door stations?

A: No. The LEM-1DLC is engineered specifically for Aiphone LE series door stations. Interoperability with third-party intercoms is not supported; verify door station model numbers before ordering cable and power supplies.

Q: Can I power the LEM-1DLC from a standard 24V access control power supply?

A: Yes, the LEM-1DLC accepts 24V DC at 200mA max. Many standard 24V access control supplies (e.g., 40VA or larger) can accommodate the LEM-1DLC plus LE series door stations. Size the power supply to handle all connected master and sub-station draw; undersized supplies will cause audio dropouts and release latency.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Aiphone LEM-1DLC in multi-tenant residential projects where centralized entry control is required but individual units need independent door release capability. The dual master design is practical for buildings where a security desk and a lobby attendant station both need to answer the same entry door, with each able to release independently. It's cost-effective compared to IP intercom systems when video and remote access are not required.

Technical Highlights:

• 1A Door Release Capacity: The N/O contact rated 30V AC/DC at 1A handles most single electromagnetic locks and strikes directly, eliminating external relay overhead — but if you're controlling multiple doors or high-current solenoids (e.g., industrial gates), you'll need an external relay card or access control expansion module.
• Cable Run Distance: 1,600 feet on 18 AWG is genuine and tested — I've deployed this across 4-story parking garage entry points and multi-building campus lobbies. Don't cheap out on cable gauge; 22 AWG beyond 650 feet will cause audio mud and release sluggishness.
• Simplex Communication: The half-duplex push-to-talk design means only one person talks at a time. In busy lobbies with frequent calls, this is more efficient than full-duplex (which causes feedback and confusion), but it requires discipline — users must release the button before the other party can respond. Train attendants on this, or frustration will follow.
• Multi-Master Answering: Four masters can simultaneously answer the same door call and all hear the visitor, but only one release at a time. The privacy LED prevents confusion — I've seen deployments without the LED where attendants all pressed release simultaneously and didn't know whose action succeeded.

Deployment Considerations:

• Plan your shielded cable infrastructure carefully. 2-conductor for door-to-master, 3-conductor for inter-master links — mixing these will cause cross-talk and intermittent release failures.
• Power budget is modest (4W AC or 200mA DC per master), but add sub-stations and LS-NVP/C units, and your 24V supply sizing becomes critical. An undersized power supply is one of the most common failure modes in large multi-unit deployments — use at least 40VA AC or a 24V supply with 2A+ capacity.
• The LEM-1DLC is not networked and offers no remote monitoring or call logging — if your client wants audit trails of who released the door and when, you'll need to add access control system integration or IP intercom instead.

Deploy the LEM-1DLC in wired multi-tenant buildings (residential, small office) where analog audio and local solenoid release are sufficient. It's reliable, self-contained, and requires no IT infrastructure — exactly what small to mid-size multi-unit properties need. Skip it if your client demands remote answering, mobile integration, or video entry points.
