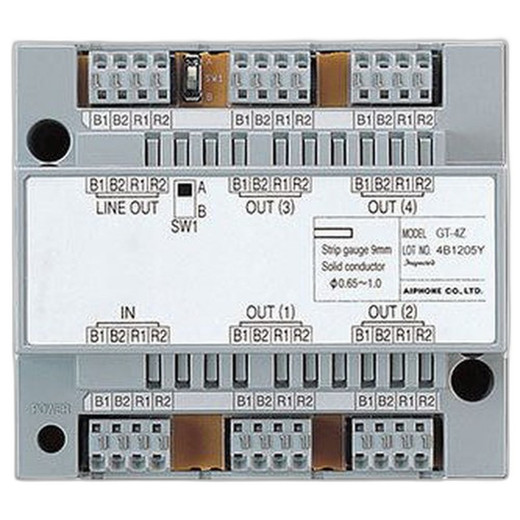

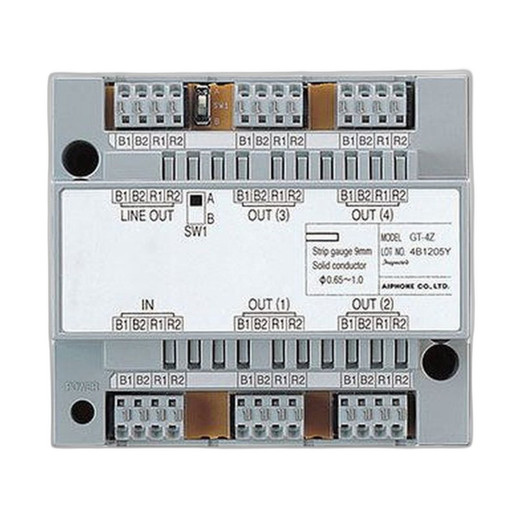

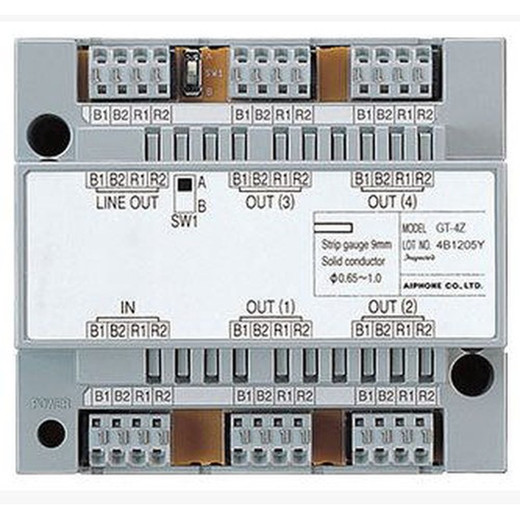

Aiphone GT-4Z 4-Tenant Video Distribution Adaptor
Overview
The GT-4Z is a trunk line distribution adaptor purpose-built for multi-tenant video intercom installations within the Aiphone GT series. It solves a common wiring problem in apartment buildings, office complexes, and residential communities: instead of running separate trunk lines to serve each tenant station, the GT-4Z consolidates four tenant endpoints onto a single trunk line, reducing infrastructure cost and simplifying panel management. The unit handles both video and two-way audio distribution, making it essential infrastructure for scaled-out GT intercom deployments.
Key Features
- 4-Tenant Distribution on 1 Trunk Line: Eliminates the need for four separate trunk runs between main stations and tenant call boxes. This cuts cabling, labor, and future troubleshooting complexity — critical in retrofit scenarios where running new cable is expensive or disruptive.
- 8MP Video Clarity: Supports 8MP resolution across all distributed endpoints, meaning each tenant station receives full-resolution video feeds from entry-point cameras. At 8MP, facial recognition and ID verification remain sharp even on small display screens at tenant units.
- Two-Way Audio Input Connectivity: Dedicated audio input terminals allow integration of external microphones or intercom audio feeds at distributed points. This enables tenant units to both see and hear visitors in real time without routing audio back through main equipment.
- DC 24V Power from GT-VBC Supply: Draws power directly from the Aiphone GT-VBC power supply, eliminating the need for additional power infrastructure at distribution points. A single GT-VBC can supply multiple GT-4Z units if load is within specification.
- Compact Wall or DIN Rail Mount: Dimensions of 122.5mm width × 104.5mm height (4-13/16" × 4-1/8") fit easily into vertical or horizontal DIN rail standard (W-DIN11), or directly onto a wall. Self-extinguishing ABS in middle gray finish withstands typical indoor mechanical abuse without additional enclosure cost.
- Sub-Trunk Line Terminal Block Configuration: Four residential output terminals (1–4) with input/output switching logic allow each tenant station to be assigned independently. This granular control means you can disable or reassign tenant endpoints without recabling the entire system.
Integration & Compatibility
The GT-4Z integrates seamlessly with GT series video tenant stations: GT-1C7, GT-1C7W (weatherproof variants), and GT-1M3 models, as well as audio-only GT intercom stations. It requires DC 24V supply from the GT-VBC power unit. When planning multi-building or campus deployments, use the GT-4Z to map multiple tenant zones to a single main station trunk, reducing the count of main-to-field cable runs and simplifying expansion as new tenant units are added.
Deployment Context
Choose the GT-4Z when you have a single main intercom panel serving multiple tenant call boxes and want to avoid running four separate trunk cables from panel to field. Typical scenarios include apartment building retrofits, office building visitor management, and residential community entry systems where cabling paths are constrained or where future scalability requires easy field reconfiguration. The unit handles no signal processing or recording — it is purely a passive distribution device — so reliability depends on cable quality and clean DC 24V supply from the GT-VBC.
What's in the Box
Product supplied as unit only. Installation requires terminal block connections to trunk line input/output and sub-tenant line outputs, and DC 24V from GT-VBC power supply. Mounting to wall or DIN rail requires appropriate fasteners, not included.
Frequently Asked Questions
Q: Can I cascade multiple GT-4Z units to serve more than 4 tenant stations on one trunk?
A: The GT-4Z is designed to distribute one trunk line to four tenant endpoints. Cascading multiple units on a single trunk line exceeds the product design and is not supported by Aiphone. Consult Aiphone system engineering for campus deployments requiring more than 4 tenant endpoints per trunk.
Q: What happens if the DC 24V supply is interrupted?
A: The GT-4Z is a powered distribution device. Loss of DC 24V will disable all four tenant outputs. Ensure GT-VBC power supply is on a dedicated circuit or UPS-backed supply if intercom availability is critical.
Q: Can I use the GT-4Z with non-Aiphone tenant stations?
A: No. The GT-4Z is designed for the GT series ecosystem only. Compatibility is limited to GT-1C7, GT-1C7W, GT-1M3, and audio-only GT models. Mixing with other brands' intercom equipment is not supported.
Q: How do I assign which tenant station connects to which GT-4Z output?
A: Each output (1–4) is configured via terminal block wiring during installation. There is no software assignment; each physical output connects to its assigned tenant unit via the sub-trunk line cabling. Reconfiguration requires physical rewiring.
Q: Does the GT-4Z support video recording or analytics?
A: No. The GT-4Z is a passive distribution adaptor only. It does not record, store, or process video. Recording and analytics are handled by the main Aiphone intercom panel or external NVR if integrated.
Q: What is the maximum cable distance between the GT-4Z and tenant stations?
A: Cable run specifications are determined by the GT intercom panel and tenant station requirements, not the GT-4Z itself. Consult the panel documentation for maximum trunk and sub-trunk line distances; twisted-pair cabling is required.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The GT-4Z (often searched as GT 4Z) is a straightforward but mission-critical device for multi-tenant intercom installations. If you're deploying Aiphone GT stations across a building and want to avoid running four separate trunk cables from your main panel to the field, this adaptor pays for itself in labor and conduit cost alone. The 8MP video support across all four distributed endpoints means you're not sacrificing image quality at the tenant unit — crucial when tenants need to see faces clearly before buzzing someone in.
Technical Highlights:
- 8MP Video Distribution: All four tenant endpoints receive full 8MP resolution from main panel cameras, eliminating the common problem of fuzzy or low-res feeds at distributed call boxes. At apartment entry points, this clarity matters for tenant confidence in the identification process.
- 4:1 Trunk Line Consolidation: Reduces cabling from four separate runs to one, cutting installation time and future troubleshooting steps. In retrofit projects with existing conduit constraints, this is the difference between feasibility and cost overrun.
- DC 24V Powered: Draws power from the GT-VBC supply — no separate PSU needed at the distribution point. Just verify the GT-VBC has spare capacity when adding additional GT-4Z units to avoid voltage sag under load.
Deployment Considerations:
- Passive Distribution Only: The GT-4Z does not buffer, encode, or process signals. If your main panel or trunk line fails, all four tenant endpoints go dark simultaneously. Build redundancy at the main panel level, not the GT-4Z level.
- Terminal Block Wiring: Each tenant assignment is fixed at installation via terminal block connections. There is no software or remote reconfiguration. If you need to swap which tenant station connects to which output later, plan for physical rewiring — this is not a plug-and-play reassignment.
- Ecosystem Lock: Works only with Aiphone GT series stations (GT-1C7, GT-1C7W, GT-1M3). If your tenant base is mixed-brand or if you're evaluating switching to a different intercom vendor, the GT-4Z has zero migration value.
Deploy the GT-4Z in apartment buildings, office visitor management, or gated community entry systems where you have a single main intercom panel and multiple tenant call boxes within a few hundred feet. The cost savings on cabling make it a no-brainer for new construction or major retrofit projects. For single-building or small multi-building campuses where trunk line runs are already in place, evaluate whether the recabling cost justifies the labor saved — in some retrofit scenarios, running four separate lines may still be cheaper than extensive rewiring to consolidate.
