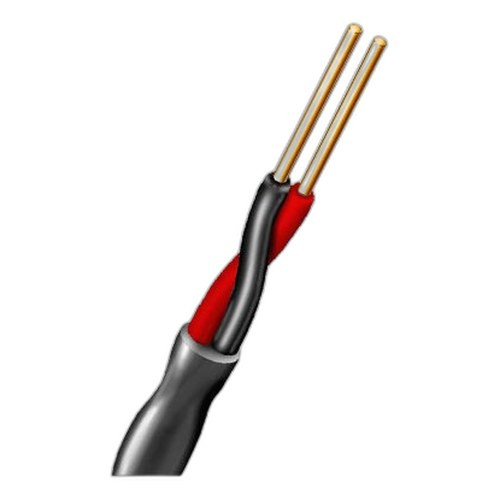

Aiphone 85160210C 2-Conductor Low Capacitance Wire
Overview
The Aiphone 85160210C is a 1,000-foot spool of 2-conductor, 16 AWG low capacitance, non-shielded wire engineered specifically for intercom and access control system installations. This cable is technically matched to Aiphone designated system specifications and carries UL and c(UL)us listings for assured safety and compliance in both indoor and access control applications. Built in the USA with PVC insulation and jacket materials, the 85160210C delivers reliable signal integrity for extended installation runs while maintaining strict electromagnetic performance parameters required by Aiphone video and voice intercom systems.
Key Features
- Low Capacitance Design: 14.0 pF/ft specification minimizes signal degradation and cross-talk over long cable runs, critical for maintaining audio and control signal fidelity in intercom and access control deployments
- 16 AWG Conductor: Optimized conductor gauge balances signal quality with installation flexibility across typical building layouts
- Non-Shielded Construction: Reduces installation labor and cost while maintaining performance within Aiphone system parameters
- 1,000-Foot Spool: Accommodates medium to large-scale facility deployments; reduces splice points and potential signal loss
- PVC Insulation & Jacket: Durable, cost-effective materials rated for in-wall and plenum-adjacent installations within UL/c(UL)us classification
- UL CL3, FPL, c(UL)us CM Rated: Meets Class 3 signaling circuit, Fire Power Limited, and Canadian equivalency standards for code-compliant installations
- DC Resistance 4.02 Ω per 1,000': Predictable electrical performance ensures voltage drop calculations align with Aiphone system requirements at 68°F
- RoHS III & REACH Compliant: Meets environmental and hazardous substance directives for European and restricted-market deployments
- Made in USA: Domestic manufacture supports supply chain predictability and warranty coverage continuity
- Extended Warranty Eligibility: Use of factory-specified wire extends product warranty by one additional year when paired with compatible Aiphone systems
Integration & Compatibility
The Aiphone 85160210C is engineered as a system component for Aiphone video intercom, master station, door station, and access control installations. Its low capacitance specification and electrical characteristics align with the performance envelope of Aiphone JV-series video master stations (JV-1MD, JV-1FD), 7-inch touchscreen video intercom sets (JPS-4AED, JPS-4AEDF, JPS-4AEDV), video answering and sub stations (JP-4MED, JP-4HD), and surface-mount video door stations (JP-DA). Integrators should reference system design documentation to confirm spool length adequacy for the intended facility footprint and verify compatibility with legacy or mixed-generation Aiphone deployments. The wire's technical specifications ensure compliance with system signal level and timing requirements across voice, control, and video intercom circuits.
Specifications Summary
Cable Rating: UL CL3, FPL, c(UL)us CM | Insulation Material: PVC | Jacket Material: PVC | Capacitance: 14.0 pF/ft | DC Resistance: 4.02 Ω per 1,000' @ 68°F | Weight: 26 lbs | Conductors: 2 | AWG: 16 | Length: 1,000 feet | Compliance: RoHS III, REACH | Origin: Made in USA
From a systems integration perspective, the Aiphone 85160210C addresses a common challenge in intercom deployments: maintaining signal integrity across extended cable runs without introducing noise or capacitive coupling that degrades voice clarity and control responsiveness. The 14.0 pF/ft spec is deliberately conservative, which pays dividends in real installations where cable routing often exceeds initial design estimates or passes near electrical noise sources.
Technical Highlights:
- Capacitance Control: At 14.0 pF/ft, the 85160210C maintains tight control over distributed capacitance, preventing signal reflections and inter-pair interference—particularly important in multi-pair scenarios or when audio and control share the same cable
- Conductor Sizing: 16 AWG provides the right balance between voltage drop tolerance (4.02 Ω per 1,000' at 68°F) and installation practicality; this conductance supports system operating currents without excessive heat or voltage margin loss
Deployment Considerations:
- Verify total cable length in your design against the 1,000-foot spool inventory; calculate voltage drop for the Aiphone system's operating current to ensure signal-level compliance at the far end of runs
- Non-shielded design reduces cost and labor, but route the 85160210C away from high-frequency RF sources or mains power bundles to preserve the low-capacitance advantage; use separation or conduit in high-noise environments
- PVC jacket suits indoor, in-wall, and above-drop-ceiling installations within the UL CL3/FPL/CM rating; confirm local code acceptance for your specific installation environment before committing to large spool purchases
The extended warranty benefit when using factory-specified wire is a tangible incentive: it signals Aiphone's confidence in the 85160210C and protects your installation labor investment. I recommend stocking this spool for new intercom deployments and retrofit projects where Aiphone compatibility is required.
