i-PRO A-46-PM Pendant Mount for ADVIDIA Cameras
Overview
The A-46-PM is a pendant-style mount for ceiling or soffit installation of i-PRO ADVIDIA IP cameras. Pendant mounting solves a specific problem: when you need the camera to hang below the mounting surface rather than flush against it, you avoid ceiling structural interference and gain cleaner sightlines in corridors, atriums, and covered outdoor areas. The mount is dimensioned at Ø128 × 100 mm (5.0" × 3.9") and rated IK10 — meaning it withstands 20 joules of impact without housing fracture, a meaningful factor in high-traffic or accessible ceiling environments where accidental contact is likely. This is a mechanical attachment solution only; it does not alter the camera's power, network, or video specifications.
Compatibility

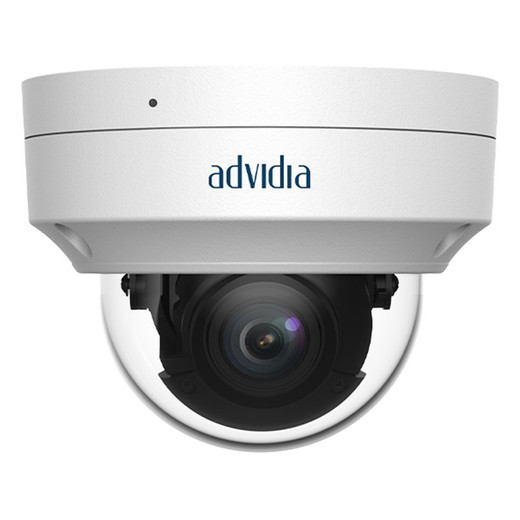

The A-46-PM is designed specifically for i-PRO ADVIDIA camera models, including the M-46-V-V2 varifocal dome (4MP, 2.8–12mm motorized lens, IP67, WDR 120dB, built-in IR to 40m, ONVIF Profile S/G/T). Before ordering, confirm your specific ADVIDIA model against i-PRO's compatibility matrix — not all pendant mounts fit all dome housings. The mount supports the full range of the M-46-V-V2's optical and network capabilities without degradation.
Installation Notes
Operating temperature range is −30°C to 60°C (−22°F to 140°F), limiting deployment in extreme cold or heat-soaked environments. When mounting to ceiling joists or studs, use appropriate anchors rated for the combined weight of the mount and camera (verify exact camera weight from your ADVIDIA model datasheet). Ensure the pendant arm clears overhead obstructions and does not interfere with HVAC, electrical conduit, or sprinkler systems. Cable routing through the pendant arm to the camera should be secured to avoid strain on RJ-45 connectors during thermal expansion or vibration. The mount is designed for outdoor use in typical ceiling overhang or sheltered conditions; for fully exposed installations, verify environmental protection with i-PRO.
