Panduit PPS0305C174A Multi-Source Caution Sign 3.5×5" 100pk

Panduit PPS0305C174A Multi-Source Energy Caution Sign

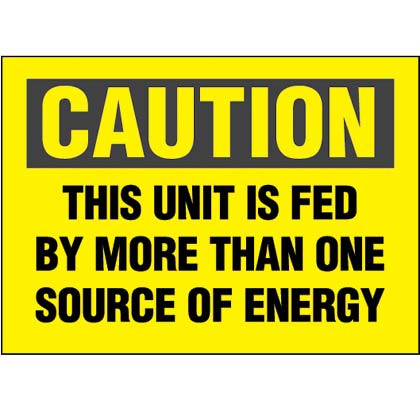

Panduit PPS0305C174A is a permanent polyester adhesive caution sign designed for NEC 110.16(B) compliance on electrical equipment fed by multiple energy sources. Measuring 3.5" × 5.0", this black-on-yellow sign carries the pre-printed legend "This unit is fed by more than one source of energy" — the exact warning text required by NFPA 70E for dual-fed panels, solar+grid installations, generator transfer switches, and redundant UPS systems. The polyester substrate resists fading, tearing, and chemical exposure far better than paper labels, while the adhesive backing bonds permanently to painted, powder-coated, and bare metal enclosures without tools or fasteners. Packaged as 5 signs per card with 100 signs total per carton, the PPS0305C174A supports multi-site commercial, datacenter, and industrial deployments where multiple-source warnings are mandatory.

Key Features

• NEC 110.16(B) / NFPA 70E compliant multi-source energy warning for dual-fed electrical equipment
• Polyester substrate withstands UV, moisture, oils, and temperature extremes — outlasts paper labels 5:1
• Pre-printed "This unit is fed by more than one source of energy" legend eliminates field labeling errors
• Permanent adhesive backing bonds to painted panels, powder-coated enclosures, and polished stainless steel
• 3.5" H × 5.0" W footprint fits standard electrical cabinet doors, transfer-switch covers, and UPS chassis
• High-contrast black text on ANSI-yellow background ensures visibility in low-light electrical rooms
• 100-sign bulk carton (20 cards × 5 signs) for contractors managing solar farms, datacenter builds, or multi-building campuses
• RoHS compliant for green-building and LEED documentation

The Panduit PPS0305C174A addresses a specific NEC safety mandate: any equipment energized by two or more sources — whether solar+utility grid, generator+normal power, redundant UPS feeds, or dual utility services — must carry a permanent warning at the point of service. This sign meets that requirement with a polyester construction that survives the harsh realities of electrical environments: the adhesive won't release in 140°F load-center interiors, the ink won't fade under years of fluorescent task lighting, and the material won't tear when brushed by tool belts or cable bundles. For integrators installing solar inverters with utility backfeed, the sign goes on both the inverter enclosure and the service-entrance panel. For datacenter electricians commissioning dual-utility feeds with automatic transfer switches, one sign marks each ATS and each downstream panel. For facility managers operating generator-backed critical loads, the sign warns maintenance staff that opening a transfer switch doesn't de-energize both sides. The 3.5×5" size was chosen to fit the flat areas on SquareD QO/Homeline panels, Eaton CH/BR panels, Siemens P-series panels, and GE PowerMark — the residential/light-commercial gear that often ends up in mixed-source applications without the label real-estate of industrial switchgear.

Polyester's advantage over vinyl or paper becomes clear within the first year: paper labels curl at the edges when exposed to the humidity swings inside outdoor NEMA 3R enclosures, vinyl stickers lose adhesion on powder-coated surfaces above 120°F, and both fade to illegibility under the UV exposure of rooftop combiner boxes. Panduit's polyester film remains flat, legible, and bonded through temperature cycling from -40°F to +200°F, salt-fog exposure in coastal installations, and the petrochemical mists common in industrial MCC rooms. The adhesive is acrylic-based rather than rubber-based, so it won't leave residue if a panel is eventually replaced, yet it forms a molecular bond with painted/coated steel that survives vibration, door slams, and the occasional wire-pulling tug. Installation is tool-free: peel the liner, align the sign to the enclosure's smooth area (avoid embossed text or ventilation louvers), press from center outward to eliminate air pockets, and you're code-compliant. No screws to drill, no magnetic holders to fall off, no lamination to bubble.

The 100-sign bulk carton makes economic sense for solar EPC firms labeling 40-inverter utility-scale arrays, MEP contractors outfitting multi-tenant office buildings with tenant-isolated dual feeds, and hospital facility teams marking every automatic transfer switch across a campus. At 5 signs per card, you can distribute one card to each crew without splitting factory packaging. The UPC 61305626178 ties to Panduit's RoHS declaration for jobs requiring material compliance documentation, and the consistent Panduit quality ensures that signs applied today will still be readable and code-compliant at the 25-year mark — long after cheaper alternatives have faded, peeled, or been replaced twice.
