Panduit SMP18A-C0 StrongHold Adhesive-Back Cable Tie Mount

Overview

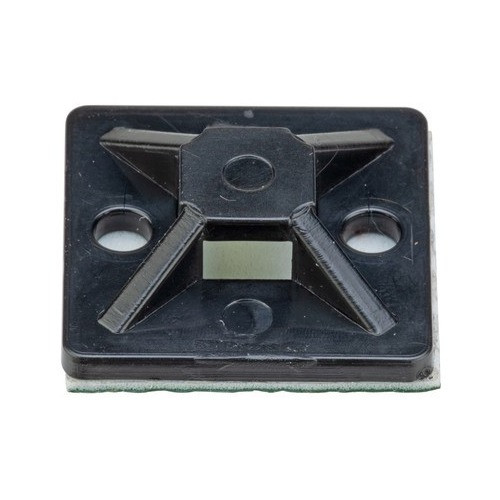

The Panduit SMP18A-C0 is a black Nylon 6.6 adhesive-back cable tie mount from the StrongHold™ family — a practical, low-cost solution for routing and securing cables in electrical enclosures, control panels, equipment racks, and light commercial installations where drilling or fastening isn't feasible. Each mount measures 1.169" × 1.169" (30 × 30 mm) with a profile height of just 0.34" (8.7 mm), keeping cable bundles close to the surface and minimizing protrusion in tight spaces. Sold in packs of 100, the SMP18A-C0 (often searched as SMP18A C0) is stocked for volume use across structured wiring, security camera runs, and light industrial wire management applications.

Key Features

• Rubber Adhesive Backing: The pressure-sensitive rubber adhesive bonds directly to flat, clean surfaces — cabinet interiors, wire trays, conduit brackets — eliminating the need to drill pilot holes or install additional hardware. This cuts installation time significantly when you're securing dozens of cable runs across a panel or equipment wall.
• Nylon 6.6 Construction: Nylon 6.6 offers noticeably higher tensile strength, heat resistance, and wear resistance compared to standard Nylon 6 — relevant in environments where cable bundles are routed near heat-generating equipment or subject to mechanical abrasion. The material stays rigid under load rather than creeping over time.
• UL 94 V-2 Flammability Rating: V-2 means the material self-extinguishes within 30 seconds after a flame source is removed, with allowance for flaming drips. For most commercial and light industrial wiring environments this rating satisfies NEC and insurance requirements — if your application demands zero flaming drips, step up to a V-0 rated product instead.
• Compact 30 × 30 mm Footprint: At 1.169" square, these mounts fit comfortably between other panel components without crowding. The 0.34" (8.7 mm) height keeps cable bundles flush, which matters in shallow-depth enclosures where clearance to door panels is limited.
• Compatible with Miniature, Intermediate, and Standard Cable Ties: The slot accepts Panduit's full range of StrongHold™ tie widths — miniature through standard — so you can match the tie gauge to the bundle diameter without sourcing a different mount. This flexibility is useful when a single installation uses mixed cable diameters.
• Indoor and Outdoor Rated: The Nylon 6.6 formulation handles UV exposure and temperature cycling better than lower-grade nylons, making these mounts viable for exterior conduit runs, outdoor camera cable management, and equipment mounted in partially exposed locations.
• UL 62275 and RoHS Compliant: UL 62275 is the standard for cable management systems in electrical installations — listing here means the mount has been evaluated for use in wiring applications per that standard. RoHS compliance keeps these out of the restricted-substance category for installations subject to EU or equivalent environmental regulations.
• Pack of 100, Carton of 1,000: The 100-unit pack aligns with typical job-site quantities for a single rack or panel installation. If you're outfitting multiple enclosures or running a recurring maintenance stock, the 1,000-unit carton drops per-unit cost and reduces reorder frequency.

Integration & Compatibility

The SMP18A-C0 is designed for use with Panduit's StrongHold™ miniature, intermediate, and standard cable ties. It is not interchangeable with heavy-duty or extra-heavy-duty tie widths — verify your tie series before ordering at scale. The adhesive bonds best to clean, dry, non-porous surfaces; porous substrates (raw concrete, uncoated wood, rough powder coat) will reduce pull-off strength. For high-vibration environments or overhead runs where adhesive failure could cause a cable drop, supplement with a mechanically fastened mount rather than relying on adhesive alone.

These mounts are commonly deployed alongside cable management hardware for structured cabling and security camera cable runs inside enclosures, as well as in rack and panel builds where Panduit wire management products are already specified. When planning a full cable routing solution, pair with appropriate cable ties matched to your bundle diameter.

What's in the Box

• 100× Panduit SMP18A-C0 adhesive-back cable tie mounts (black, Nylon 6.6)

Frequently Asked Questions

Q: What size cable ties are compatible with the SMP18A-C0?

A: The SMP18A-C0 is designed for use with Panduit StrongHold™ miniature, intermediate, and standard cable ties. It is not rated for heavy-duty or extra-heavy-duty tie widths.

Q: Can the SMP18A-C0 be used outdoors?

A: Yes. The Nylon 6.6 material and rubber adhesive backing are rated for both indoor and outdoor use, making these mounts suitable for exterior cable routing and enclosures exposed to weather.

Q: What is the flammability rating of the SMP18A-C0?

A: The SMP18A-C0 carries a UL 94 V-2 flammability rating, meaning the material self-extinguishes within 30 seconds after flame removal. If your application requires zero flaming drips, a V-0 rated product would be required.

Q: What standards does the SMP18A-C0 meet?

A: The SMP18A-C0 meets UL 62275 (cable management systems for electrical installations) and RoHS compliance requirements.

Q: How many mounts are included per package?

A: Each package contains 100 mounts. A full carton contains 1,000 mounts.

Q: What are the exact dimensions of the SMP18A-C0?

A: Each mount measures 1.169" × 1.169" (30 × 30 mm) with a profile height of 0.34" (8.7 mm).

Ted Perry

The SMP18A-C0 is one of those components that looks trivial on a BOM until you're three hours into a panel build and realize your cable routing is eating into your schedule. The rubber adhesive backing on this mount is the differentiator versus cheaper foam-tape alternatives — it maintains bond integrity across a wider temperature range and doesn't compress and release under cable tension the way thin foam can. At 1.169" square and 0.34" tall, it leaves enough clearance for a proper cable bundle without fouling adjacent terminals or door panels.

Technical Highlights:

• Nylon 6.6 vs. Nylon 6: Nylon 6.6 has a higher melting point (~265°C vs. ~220°C) and better dimensional stability under load — in a panel where a VFD or transformer is running warm, this is the one you want, not a commodity Nylon 6 mount.
• UL 94 V-2 Rating: Self-extinguishing within 30 seconds post-flame is the baseline for most commercial panel inspections. V-2 satisfies the majority of electrical enclosure requirements; just confirm with your AHJ if the install is in a plenum or Class 1 area where V-0 is mandatory.
• UL 62275 Listing: This isn't just marketing — UL 62275 is the actual standard evaluators check when auditing cable management in electrical installations. Having a listed product on record simplifies the inspection conversation.

Deployment Considerations:

• Surface prep is non-negotiable with adhesive mounts. IPA wipe on metal panel interiors, 60-second dry time minimum before pressing. Skipping this step on powder-coated or slightly oily surfaces is the leading cause of mount failure at 90 days.
• The V-2 rating allows flaming drips — if you're routing cables above other heat-sensitive components in an enclosure, factor that in. For overhead cable tray runs in occupied spaces, consider a mechanically fastened mount as a backup or primary.

For security integrators running camera cable inside equipment enclosures or junction boxes — particularly where you're landing multiple runs and want a clean, inspectable result without drilling — the SMP18A-C0 in 100-packs is the practical stock item to keep on the van.
