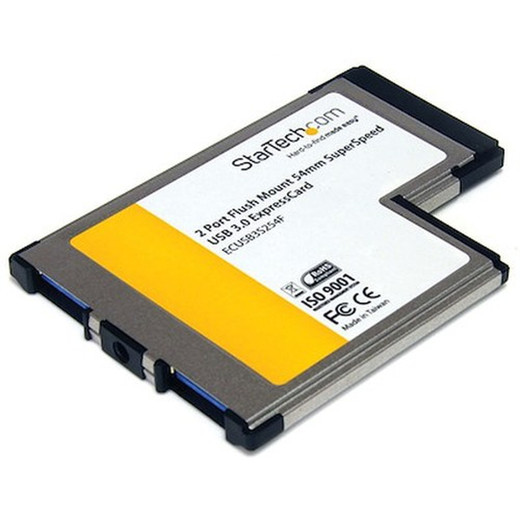

StarTech ECUSB3S254F 2-Port Flush Mount USB 3.0 ExpressCard Adapter

Overview

The StarTech ECUSB3S254F drops into any ExpressCard/54 slot and delivers two full-speed USB 3.0 Type-A ports at 5 Gbps — without adding a dongle that hangs off the side of the chassis. If you're running a ruggedized or enterprise laptop in a field environment, a mobile workstation, or a security deployment vehicle where USB throughput and cable-free port management actually matter, this card solves the problem cleanly. It sits flush with the laptop body, weighing 25 grams, so it stays installed semi-permanently without snagging on cases or camera mounts.

The card is built on a PCIe 2.0 bus interface, which means the host controller gets full-bandwidth access through the ExpressCard slot — not a USB-bridged bottleneck. At 5 Gbps per transfer, you can move large video files, connect external storage, or drive USB 3.0 capture devices without the throughput penalties you'd see from USB 2.0 or hub-cascaded ports.

Key Features

• 5 Gbps USB 3.0 Data Rate: Both ports operate at SuperSpeed USB 3.0 (5 Gbps), roughly ten times faster than USB 2.0's 480 Mbps ceiling. That's the difference between transferring a 10GB evidence file in about 20 seconds versus over three minutes — a real factor in field data offload or live capture scenarios.
• Flush-Mount 54mm ExpressCard Form Factor: The card sits flush with the laptop's ExpressCard/54 slot rather than protruding like a standard adapter. In vehicle mounts, laptop docks, or rack-slide deployments, a protruding adapter is a snag point and a mechanical failure risk. Flush fit removes that problem.
• PCIe 2.0 Bus Interface: Running over PCI Express 2.0 rather than a USB-to-USB bridge means the host controller sees a native PCIe device. This avoids the shared-bus contention you get with passive USB hubs and delivers consistent throughput to both ports simultaneously.
• Two USB Type-A Ports (9-pin, 5 Gbps): Standard Type-A receptacles mean you're not hunting for adapters. Plug in external drives, USB 3.0 cameras, capture cards, or any Type-A peripheral directly. The 9-pin connector spec confirms full USB 3.0 signal integrity — not a downgraded 4-pin USB 2.0 socket.
• Operating Temperature Range 0°C to 85°C: The card handles the thermal range you'd expect in an automotive or outdoor mobile deployment — from a cold-start vehicle in winter to a sun-baked equipment cabinet in summer. The storage rating extends further, from -65°C to 125°C, so it survives temperature cycling in stored equipment without damage.
• Compact and Lightweight (74mm x 54mm x 5mm, 25g): At 25 grams, it adds no meaningful weight to a laptop loadout. The thin 5mm profile is what enables the flush mount — there's no bulge to interfere with adjacent equipment or cases.
• 2-Year Manufacturer Warranty: Two-year coverage is appropriate for an enterprise peripheral in a commercial deployment — gives you a meaningful runway for a fixed installation without needing immediate replacement planning.

Integration and Compatibility

The ECUSB3S254F requires a host laptop with an ExpressCard/54 slot. ExpressCard/54 is the wider of the two ExpressCard formats (54mm vs. 34mm) — confirm your laptop's slot width before ordering. Laptops with only a 34mm slot will not accept this card physically, although some 54mm slots accept 34mm cards with an adapter frame. Check your laptop's service manual if the slot format is not labeled on the chassis.

The card draws power directly from the ExpressCard slot — no external power supply, no wall adapter. The PCIe 2.0 interface is backward-compatible with PCIe 1.x host slots, so the card will negotiate down gracefully on older ExpressCard implementations, though maximum throughput may be limited by the host slot's PCIe generation in that scenario.

This card is a useful addition to laptop accessories configurations for mobile security deployments, particularly where a USB 3.0 capture device or external drive needs a dedicated high-speed connection. For broader peripheral expansion planning, review the networking and connectivity accessories category. If you're sourcing the ECUSB3S254F alongside external storage or USB 3.0 cameras, consider the total bus throughput budget — both ports share the single PCIe lane allocated to the ExpressCard slot.

Frequently Asked Questions

Q: What laptop slot does the ECUSB3S254F require?

A: It requires an ExpressCard/54 slot — the 54mm-wide format. It will not fit a 34mm ExpressCard slot without a mechanical adapter frame. Confirm your laptop's slot specification before ordering.

Q: Does the ECUSB3S254F need an external power supply?

A: No. The card draws power directly from the ExpressCard slot on the host laptop. No external power brick or cable is required.

Q: What USB data rate do the ports support?

A: Both ports are USB 3.0 SuperSpeed at 5 Gbps. They use 9-pin Type-A receptacles, confirming full USB 3.0 signal support — not downgraded USB 2.0 sockets.

Q: What is the operating temperature range of the ECUSB3S254F?

A: The card is rated for operation from 0°C to 85°C. Storage temperature range extends from -65°C to 125°C, making it suitable for equipment that cycles through wide ambient temperature swings.

Q: What warranty does the ECUSB3S254F carry?

A: StarTech provides a 2-year manufacturer warranty on the ECUSB3S254F.

Q: Will both USB 3.0 ports run at full speed simultaneously?

A: Both ports operate at 5 Gbps USB 3.0 speeds via a PCIe 2.0 bus interface. Simultaneous full-bandwidth use on both ports is subject to the PCIe lane bandwidth allocated to the ExpressCard slot by the host system — a single PCIe lane at Gen 2 provides up to 500 MB/s, which is shared across both ports under concurrent heavy load.

Karl Wilson

The ECUSB3S254F is one of those small-format cards that actually earns its place in a mobile deployment kit. The flush-mount 54mm ExpressCard form factor is the critical spec here — in vehicle-mounted or rack-slide laptop setups, a card that sits level with the chassis edge eliminates the single most common mechanical failure point I see on field units: a snagged or snapped peripheral adapter. At 25 grams and 5mm thick, this card installs and largely disappears.

Technical Highlights:

• 5 Gbps USB 3.0 (9-pin Type-A): Full SuperSpeed USB 3.0 on both ports — not a hub-bridged pair. Verified by the 9-pin connector spec. Relevant when you're offloading SD card or SSD data in the field and every minute counts.
• PCIe 2.0 Bus Interface: Native PCIe 2.0 avoids the shared-bus throughput degradation of cascaded USB hubs. Both ports get dedicated controller access, which matters when you're running a USB 3.0 capture device on one port and external storage on the other simultaneously.
• 0°C to 85°C Operating Range: That upper limit of 85°C is broader than most commercial peripherals. It covers vehicle deployments in hot climates where the equipment bay can spike well above ambient — a spec that matters if this card is installed semi-permanently in a mobile command unit or patrol vehicle laptop mount.

Deployment Considerations:

• Verify your laptop has a 54mm ExpressCard slot before ordering — not a 34mm slot. The physical width difference is immediately apparent, but it's a wasted order if not confirmed first. Check the laptop's service manual or look for the wider slot opening on the chassis edge.
• Under simultaneous full-load on both ports, throughput is bounded by the single PCIe 2.0 lane available to the ExpressCard bus — plan accordingly if your use case demands concurrent maximum-bandwidth transfers on both ports at the same time.

For a mobile forensics workstation or a security deployment laptop that needs persistent, flush-mounted USB 3.0 expansion without a protruding adapter, the ECUSB3S254F is the right card. It's particularly well-suited to vehicle installations where physical profile and thermal tolerance are non-negotiable constraints.
