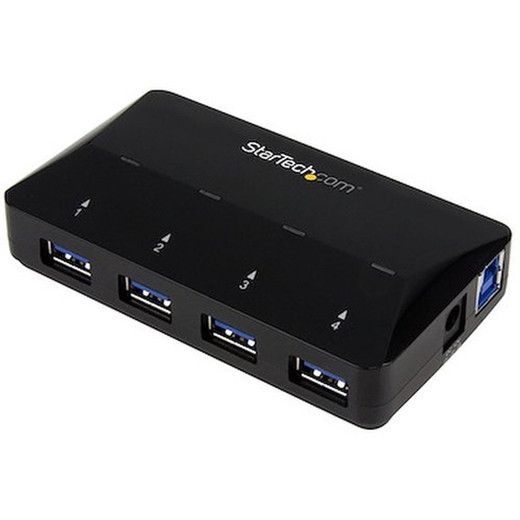

StarTech ST53004U1C 4-Port USB 3.0 Desktop Hub with Fast-Charge Port

Overview

The StarTech ST53004U1C is a compact, AC-powered desktop USB hub that adds four USB 3.2 Gen 1 ports and a dedicated 2.4A fast-charge port to any system with a standard USB Type-A host connection. Where bus-powered hubs fall short under load — dropping data rates or failing to charge devices reliably — this unit draws from a 12V DC, 2A AC adapter (included, universal 100–240V input) so every port gets consistent power regardless of what is connected. That makes it a practical choice for workstations, security monitoring stations, or integration benches where you routinely connect external drives, USB-attached IP cameras, barcode scanners, and mobile devices simultaneously.

Built around the VIA/VLI VL812 chipset, the ST53004U1C moves data at up to 5 Gbps per the USB 3.2 Gen 1 specification — roughly ten times the ceiling of USB 2.0. At 4.1 in × 2.4 in × 0.9 in and 2.6 oz, it sits flat on a desk without occupying significant real estate, and the all-black finish integrates cleanly in most enterprise and technical environments.

Key Features

• 5 Gbps USB 3.2 Gen 1 throughput: Each of the four data ports operates at up to 5 Gbps, so transferring large video clip archives from an external drive or pulling firmware files to multiple USB-attached devices happens at full USB 3.0 speed — not throttled by a shared 480 Mbps USB 2.0 ceiling.
• Dedicated 2.4A fast-charge port: The fifth port is charge-only at 2.4A, conforming to USB Battery Charging Specification Rev. 1.2. That is enough current to fast-charge a smartphone or tablet without competing with data traffic on the hub — useful at a security operations desk where an officer's mobile device needs to stay charged during a shift.
• AC-powered via included 12V/2A adapter: Bus-powered hubs share the host port's 500mA or 900mA budget across all connected devices. This hub's independent 12V DC power supply means USB drives spin up reliably, barcode scanners enumerate without resets, and the fast-charge port delivers its full 2.4A without robbing headroom from data ports.
• Universal 100–240V AC input at 0.6A: The included adapter accepts any mains voltage worldwide — relevant for integrators configuring equipment internationally or in facilities with mixed power infrastructure. No separate power brick swap required when traveling between sites.
• VIA/VLI VL812 chipset: A proven USB 3.0 hub controller with broad OS compatibility. Reduces the risk of enumeration failures or device-recognition issues that can appear with generic no-name hub silicon.
• Operating range 0°C to 40°C: Rated for standard indoor commercial and office environments. Not designed for industrial temperature extremes — note this if the hub will be installed in an unheated server closet or outdoor enclosure in cold climates.
• Compact desktop form factor: At under an inch tall and weighing 2.6 oz, the ST53004U1C does not require mounting hardware or rack space. It parks on a desk or shelf and connects with the existing host cable — straightforward for retrofit installs where adding rack equipment is not practical.
• 2-year warranty: StarTech's standard 2-year coverage applies to this unit, giving procurement teams a defined support window for asset lifecycle planning.

Integration and Compatibility

The ST53004U1C connects to any host system with a USB Type-A port — Windows, macOS, Linux, and Chrome OS systems that enumerate standard USB hubs will recognize it without custom drivers in most cases. The USB 3.2 Gen 1 ports are backward-compatible with USB 2.0 and USB 1.1 devices, so legacy peripherals (older receipt printers, USB serial adapters, etc.) connect without issue, though they will operate at their native lower speeds. The hub does not support USB-C host connections directly — the host side requires Type-A. If your workstation or laptop has transitioned to USB-C only, a USB-C to USB-A adapter or a different hub model would be needed on the host side.

For network and connectivity infrastructure deployments, this hub pairs naturally with workstations running video management software where USB-attached storage, license dongles, and configuration devices all need simultaneous access. Integrators building out IP camera commissioning kits frequently include a powered USB hub like this to handle simultaneous connections to laptop configuration tools, external reference drives, and mobile test equipment without port conflicts.

The hub is not intended as a network device — it carries no Ethernet, no PoE output, and no IP addressability. If you need to extend PoE-powered camera connectivity or add network ports, that is a different category of device entirely. This is strictly a USB peripheral expander for the local workstation.

Frequently Asked Questions

Q: Does the ST53004U1C require a separate power supply, or is one included?

A: A 12V DC, 2A AC adapter is included. It accepts 100–240V AC input at 0.6A, so it works on standard US and international mains power without any additional accessories.

Q: What is the data transfer speed on the four USB ports?

A: Each data port operates at up to 5 Gbps under the USB 3.2 Gen 1 (USB 3.0) specification. Devices connecting at USB 2.0 or 1.1 speeds will enumerate at those lower rates — the hub is backward-compatible but does not accelerate legacy devices beyond their own limits.

Q: Can the fast-charge port also transfer data?

A: The fifth port is a dedicated charging port rated at 2.4A output per USB Battery Charging Specification Rev. 1.2. It is charge-only — it does not carry data. For data plus charging, use one of the four standard USB 3.0 ports.

Q: What is the warranty on the ST53004U1C?

A: StarTech covers this hub with a 2-year manufacturer warranty.

Q: Is this hub compatible with USB-C host ports?

A: The host connection on the ST53004U1C is USB Type-A. It does not connect directly to a USB-C host port. If your workstation only has USB-C, you would need a separate USB-C to USB-A adapter on the host side — that adapter is not included.

Q: What operating temperature range is the hub rated for?

A: The hub is rated for 0°C to 40°C (32°F to 104°F) operating and -10°C to 70°C storage. It is designed for standard indoor commercial environments — not suitable for unheated outdoor enclosures or industrial temperature extremes.

Marty Allison

The detail I keep coming back to on the ST53004U1C is the AC power architecture. The included 12V DC, 2A adapter gives this hub a 24W total power budget — far beyond what any bus-powered hub can deliver. When you are commissioning a security workstation and need a USB drive for video evidence export, a dongle for your VMS license, a USB-to-serial adapter for legacy panel config, and a phone charging simultaneously, a bus-powered hub will drop devices or fail to spin up the drive. This one will not.

Technical Highlights:

• VIA/VLI VL812 chipset: A well-documented USB 3.0 hub controller with stable driver support across Windows and Linux — reduces enumeration failures on multi-device workstations compared to generic hub silicon.
• 2.4A dedicated charge port (USB BC 1.2): Fully isolated from the data bus, so the charge port delivers its rated 2.4A without pulling from the data port power budget — relevant when a dispatcher needs their tablet topped off during a 12-hour shift.
• Universal AC input (100–240V, 0.6A): The included adapter handles any international mains standard. If your team deploys across multiple facilities with different power infrastructure, no adapter swap or replacement brick is needed.

Deployment Considerations:

• The 0°C to 40°C operating range covers standard office and control-room environments cleanly, but do not install this in an unheated equipment closet in a northern climate — temperatures below freezing will push outside spec.
• The host side is USB Type-A only. Workstations or laptops that have fully migrated to USB-C ports will need a USB-C to USB-A adapter on the host connection — plan for that before the install, as it is not in the box.

For a security operations center workstation or a permanent integration bench where a technician routinely connects multiple USB peripherals and needs one port dedicated to keeping a mobile device charged, the ST53004U1C is a straightforward, properly-powered fit.
