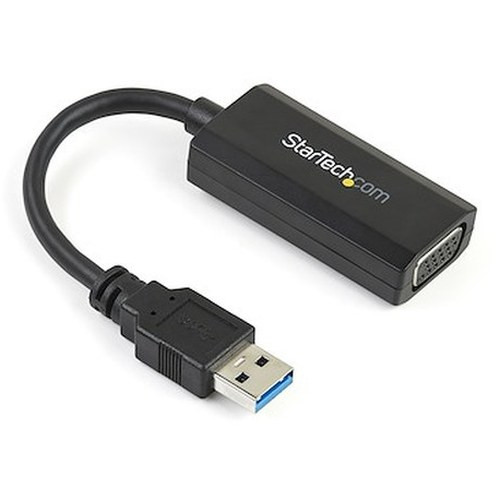

StarTech USB32VGAV USB 3.0 to VGA Display Adapter

Overview

The StarTech USB32VGAV is a compact USB 3.2 Gen 1 to VGA adapter that lets you connect a secondary — or additional — VGA monitor to any Windows PC without opening the chassis or adding a discrete graphics card. Powered entirely by the USB bus and built around the Fresco FL2000Dx chipset with 8MB of onboard memory, it delivers resolutions up to 1920x1200 over a standard VGA output. If you're expanding workstations in a control room, adding display capacity to a monitoring station, or equipping a point-of-sale terminal with a secondary screen, this adapter keeps the deployment clean and tool-free.

Key Features

• 1920x1200 Maximum Resolution: Supports full WUXGA output — enough for a 16:10 widescreen monitor at native resolution. Standard 1080p displays run well within this ceiling, so you won't hit a resolution wall on typical office or monitoring hardware.
• USB 3.2 Gen 1 (5Gbps) Interface: The 5Gbps bus provides enough bandwidth to push display data without the frame-rate bottlenecks that plagued older USB 2.0 display adapters. The difference is especially noticeable when scrolling dashboards or rendering live video feeds on the secondary screen.
• Fresco FL2000Dx Chipset with 8MB Onboard Memory: The FL2000Dx is a well-documented chipset with stable, regularly updated Windows driver support. The 8MB of dedicated frame buffer reduces reliance on host CPU cycles to manage display refresh, which matters when the host system is already handling processing workloads.
• Up to 6 Adapters Per System: You can daisy-chain or hub-connect up to six USB32VGAV units on a single machine. For command-and-control environments or trading desks needing dense display arrays without a multi-GPU workstation, this is a cost-effective path to expand screen count incrementally.
• Compact Form Factor — 7.7 x 1.0 x 0.5 in: The adapter weighs just 0.9 oz and fits in a shirt pocket. The 5.5-inch attached cable keeps the VGA port accessible even on monitors with recessed connector panels, without the strain on the USB port you get from a rigid dongle.
• Broad Windows OS Compatibility: Driver support spans Windows Vista through Windows 11, plus Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, and 2022. In managed enterprise environments running Windows Server editions, that explicit server OS certification removes the guesswork around driver availability.
• Operating Temperature 0°C to 70°C: The rated thermal range covers standard indoor equipment rooms and office environments. Storage tolerance extends from -10°C to 55°C, so units held in stockrooms or equipment cabinets won't be degraded by typical temperature swings.
• Bus-Powered — No External Power Required: Draws power entirely from the USB 3.0 port. No wall adapter, no power brick, no cable management overhead. One USB port is all the infrastructure this adapter needs.

Integration and Compatibility

The USB32VGAV installs via software driver on Windows — driver installation is required before use, so plan for that step in your provisioning workflow. The adapter is not plug-and-play without the driver, which is relevant for locked-down enterprise images where driver deployment needs IT approval in advance. The VGA output is analog, so downstream monitors must have a VGA input — DisplayPort or HDMI displays will need a separate adapter. For environments running video surveillance monitoring stations or network-connected control room displays, confirm that the monitors in use carry native VGA inputs or the appropriate passive adapter. Since up to six units can operate simultaneously from a single host, connecting them through a powered USB hub is recommended when the system's USB root hub doesn't have sufficient current headroom for multiple adapters. USB 3.2 Gen 1 backward compatibility means the adapter will function physically in a USB 2.0 port, but bandwidth constraints at USB 2.0 speeds will limit display performance — use USB 3.0 ports for full resolution and frame-rate capability.

Frequently Asked Questions

Q: What is the maximum display resolution supported by the USB32VGAV?

A: The USB32VGAV supports a maximum resolution of 1920x1200 (WUXGA) over VGA output. Standard 1080p (1920x1080) monitors will operate at native resolution within this limit.

Q: Does the USB32VGAV require an external power supply?

A: No. The adapter is fully bus-powered via the USB 3.2 Gen 1 port. No external power adapter is needed. When deploying multiple units simultaneously, a powered USB hub is recommended to ensure adequate current supply.

Q: How many USB32VGAV adapters can I run on a single computer?

A: Up to six USB32VGAV adapters are supported simultaneously on a single system, allowing multi-display configurations without dedicated graphics hardware.

Q: Is the USB32VGAV compatible with Windows Server operating systems?

A: Yes. The USB32VGAV supports Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, and 2022 in addition to Windows Vista through Windows 11.

Q: Does the USB32VGAV work if plugged into a USB 2.0 port?

A: The adapter will connect physically to a USB 2.0 port due to backward compatibility, but USB 2.0's lower bandwidth will limit display performance. For full 1920x1200 resolution and smooth refresh, a USB 3.0 or higher port is required.

Q: What is the warranty on the USB32VGAV?

A: The USB32VGAV carries a 2-year manufacturer warranty.

Ted Perry

The spec I keep coming back to on the USB32VGAV is the six-adapter ceiling per host system. That's not a throwaway number — it means a single workstation running Windows Server 2019 or 2022 can drive six additional VGA displays without touching the GPU or the motherboard's expansion slots. For operators provisioning control room monitoring stations or video wall segments on existing hardware, that's a meaningful constraint to understand before you commit to a deployment architecture.

Technical Highlights:

• 1920x1200 VGA Output: WUXGA resolution covers the full native output of standard 16:10 commercial monitors — no downscaling artifacts, no letterboxing on typical operator displays.
• Fresco FL2000Dx with 8MB Buffer: The onboard frame buffer offloads display refresh from the host CPU. On systems already under processing load — VMS playback, analytics, database queries — this prevents the display adapter from competing directly for CPU cycles.
• USB 3.2 Gen 1 at 5Gbps: The bandwidth headroom compared to USB 2.0 is substantial for a display adapter. Scrolling-heavy interfaces (live camera grids, financial dashboards) render noticeably smoother at 5Gbps than they do when the same adapter is forced onto a USB 2.0 port.

Deployment Considerations:

• Driver installation is mandatory before use — not plug-and-play. In enterprise environments with managed OS images, get the FL2000Dx driver package into your deployment workflow before field installation, not after.
• Multi-adapter deployments (more than two or three units) should route through a powered USB hub. USB root hubs on most motherboards don't have the current budget to reliably supply six bus-powered adapters simultaneously without introducing instability.

This adapter earns its place in control room operator stations and monitoring kiosks where VGA-input displays are already deployed and adding a GPU is not on the table — specifically in facilities running Windows Server-based VMS hosts that need incremental display expansion without hardware procurement cycles.
