StarTech PLATE9M16LP Low Profile DB9 Serial Slot Bracket

Overview

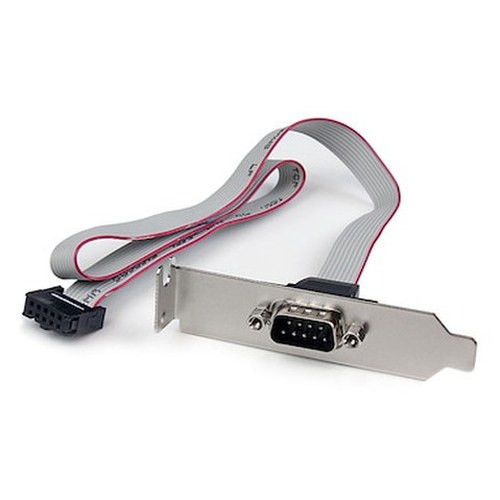

The StarTech PLATE9M16LP is a low-profile slot bracket that adds a DB-9 (9-pin D-Sub) RS-232 serial port to the rear panel of a small form factor or low-profile desktop PC — the kind of machine that ships without a spare serial port but still needs to communicate with legacy serial devices. If you're integrating access control panels, POS terminals, serial-based industrial controllers, or RS-232-dependent security hardware into a compact workstation, this bracket is the direct path to that connection without requiring a PCIe serial card.

The bracket connects to the motherboard's internal 10-pin IDC serial header — present on most business-class mini-tower and SFF motherboards — and routes the signal to a DB-9 female port mounted in a standard low-profile slot opening. The 15-inch (380 mm) internal cable, built from 28 AWG wire, gives enough reach to connect cleanly inside compact chassis without forcing tight bends or cable strain near the header pins.

Key Features

• Low-Profile Slot Bracket Form Factor: Designed specifically for small form factor and low-profile chassis where standard full-height brackets won't fit. If your deployment uses compact workstations or embedded PCs — common in kiosk, retail, and light industrial installs — this solves the bracket height problem without requiring case modifications.
• 10-Pin IDC to DB-9 Conversion: Connects to the 10-pin motherboard COM header that most business-class SFF motherboards still include, even when the rear panel doesn't expose a DB-9 port directly. No driver installation needed — the OS sees it as a native COM port.
• 15-Inch (380 mm) Internal Cable: Provides enough slack to route neatly from the motherboard header to the rear slot bracket inside a compact chassis — approximately 15 inches of 28 AWG cable means you won't be straining connectors or improvising cable management in a tight mini-ITX or micro-ATX case.
• 28 AWG Wire Construction: Standard for internal serial runs at these lengths. At 15 inches, signal integrity for RS-232 is not a concern — this gauge handles the application correctly without the overhead of heavier-gauge cable in a space-constrained enclosure.
• DB-9 Female Rear Port: Presents a standard female DB-9 connector at the rear of the machine, compatible with the male DB-9 cables used by serial printers, barcode scanners, legacy modems, POS peripherals, and RS-232 security devices. No adapters required at the device end.
• Compact Physical Footprint: The bracket assembly measures 16.7 inches long × 3.2 inches wide × 0.9 inches tall (42.5 cm × 8.0 cm × 2.2 cm) and weighs just 1.0 oz (27 g) — light enough that it won't affect chassis balance and slim enough to sit in a single expansion slot without blocking adjacent slots.
• Lifetime Warranty: StarTech backs the PLATE9M16LP with a lifetime warranty, which matters for passive cable and bracket hardware that gets installed once and forgotten. You won't be replacing this due to wear, and if there's a manufacturing defect, it's covered without a clock running out.

Integration and Compatibility

The PLATE9M16LP is compatible with any desktop motherboard that exposes a standard 10-pin internal serial (COM) header — this is the de facto standard for internal COM headers on Intel and AMD business-class platforms. Verify your motherboard has an unused COM header before ordering; SFF boards sometimes omit it entirely to save PCB real estate, though most business-grade SFF systems (Dell OptiPlex SFF, HP EliteDesk, Lenovo ThinkCentre M-series, and equivalent) include at least one.

On the device side, the DB-9 female port connects to any RS-232 male DB-9 cable, covering the full range of serial peripherals: access control panels with RS-232 interfaces, serial receipt printers, legacy barcode scanners, KVM switches with serial management ports, and industrial automation equipment. If you need to connect this to a serial device used in a broader IP camera or surveillance deployment — such as a serial PTZ controller or video matrix switch — this bracket gives you the port without adding a full expansion card.

For environments where you need multiple serial ports, consider pairing this with a managed switch infrastructure or a dedicated multi-port serial PCIe card if the motherboard only has one COM header. This bracket consumes that single header — plan accordingly if your application requires more than one RS-232 port.

Frequently Asked Questions

Q: What motherboard connector does the PLATE9M16LP connect to?

A: It connects to a standard 10-pin IDC internal serial (COM) header on the motherboard. This header is present on most business-class SFF and mini-tower boards. Check your motherboard manual to confirm the header is available before installing.

Q: Will the PLATE9M16LP fit in a standard full-height desktop case?

A: It is designed for low-profile and small form factor chassis. It will physically fit in a full-height slot on some cases, but it is sized and intended for low-profile expansion slot openings. If your case has a low-profile slot, this is the correct bracket. Full-height cases may accommodate it depending on how the slot retention is designed.

Q: How long is the internal cable on the PLATE9M16LP?

A: The internal cable is 15.0 inches (380 mm) long, constructed from 28 AWG wire. This is sufficient for routing inside a compact SFF chassis from a typical mid-board COM header to a rear expansion slot.

Q: What is the warranty on the PLATE9M16LP?

A: StarTech backs the PLATE9M16LP with a lifetime warranty.

Q: Does the PLATE9M16LP require driver installation?

A: No. The bracket routes the signal from the motherboard's native COM header to the rear panel. The operating system treats it as a standard COM port using built-in drivers — no additional software is required.

Q: What devices can I connect to the DB-9 port on the PLATE9M16LP?

A: Any RS-232 device with a male DB-9 connector: serial printers, barcode scanners, POS terminals, access control panels, legacy modems, serial PTZ controllers, industrial automation equipment, and other RS-232 peripherals.

Ted Perry

The PLATE9M16LP comes up regularly in deployments where someone has specified a compact SFF workstation as a local controller or management node, then discovered the rear panel has no DB-9 port — even though the motherboard has the COM header sitting right there unpopulated. The 15-inch internal cable is long enough to reach from most mid-board header positions to the rear slot without any cable gymnastics, and at 28 AWG over that distance, RS-232 signal integrity is a non-issue.

Technical Highlights:

• 10-Pin IDC Header Interface: Connects directly to the motherboard's native COM header, meaning the OS assigns a real COM port number — no USB-to-serial driver stack, no latency quirks, no compatibility surprises with serial-dependent software.
• 15-Inch 28 AWG Cable: At 380 mm, this cable handles the internal routing distance in typical SFF chassis (Dell OptiPlex, HP EliteDesk class) without being so long it creates a cable management problem in an already tight enclosure.
• Lifetime Warranty: Passive cable and bracket hardware rarely fails in service, but when it does it's usually a cold solder joint or connector crimp issue that shows up early. The lifetime coverage means you're not tracking an expiration date on a $10 part.

Deployment Considerations:

• Verify the motherboard has an unused 10-pin COM header before ordering — some ultra-compact SFF boards omit it entirely. Pull the motherboard manual and check before the machine is racked or positioned in a kiosk enclosure.
• This bracket consumes the single COM header most SFF boards provide. If your application needs two or more RS-232 ports, a PCIe serial card is the right path — this bracket won't give you a second port.

Best fit: a compact workstation deployed as a local access control management node or serial PTZ controller interface, where the machine needs one RS-232 port and the chassis physically won't accept a full-height bracket.
