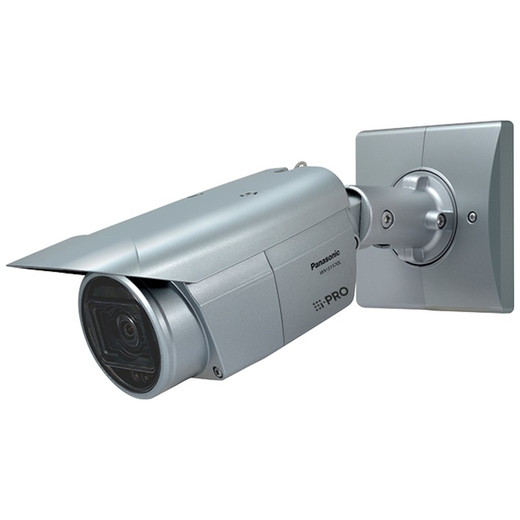

Panasonic WV-S1550L 5MP IR Outdoor Box Camera

i-PRO WV-S1550L 5MP IR Outdoor Box Camera

The i-PRO WV-S1550L is a 5MP outdoor box camera engineered for forensic-grade evidence capture in retail, banking, transit, and perimeter security deployments. Built around a 1/2.8-inch high-sensitivity CMOS sensor paired with native H.265 compression, it delivers 30fps full-resolution video while reducing bandwidth and storage footprint by 40–60% versus H.264—a substantial operational cost reduction on continuous multi-camera recording. The combination of active IR LEDs (40m effective range), Super Dynamic 120dB WDR, and IP66/IK10 environmental sealing eliminates the need for external lighting rigs and handles rain, dust, wind, and vandal impact without image degradation. Direct MicroSD card edge recording with FIPS 140-2 Level 1 encryption ensures forensic continuity even when network connectivity is degraded or interrupted.

Key Features

• 5MP Resolution at 30fps: 1/2.8-inch CMOS sensor with 5MP native resolution. Superior detail capture across license plates, facial features, and merchandise identification in both color and monochrome IR modes.
• H.265 Smart Coding: 40–60% bandwidth reduction versus H.264 on identical quality. Measurable savings across 24/7 recording on 8+ camera deployments; codec fallback to H.264/MJPEG preserves compatibility on legacy VMS platforms.
• 40-Meter IR Range: Built-in active IR LEDs, 0.0044 lx color night vision, 0.003 lx monochrome. Adequate for parking lots, loading docks, and perimeter fencing without supplementary lighting infrastructure.
• 120dB Super Dynamic WDR: Forensic wide dynamic range handles extreme backlight (sunlit entrances, vehicle headlights) and deep shadows in single frame without tone mapping artifacts.
• IP66/IK10 Environmental Rating: IP66 sealing resists rain and dust ingress; IK10 vandal rating tolerates 5kg impact from 40cm. Suitable for street-level, rooftop, and exposed outdoor mounting without protective shrouds.
• PoE 802.3af Power: Standard PoE delivery (<13W draw) from any managed or unmanaged PoE switch. Single Ethernet run eliminates separate power infrastructure.
• Motorized 2.9–9mm Varifocal Lens: 3.1x optical zoom with motorized focus and iris. VMS or local web interface control allows remote zoom adjustment post-installation without physical camera access.
• FIPS 140-2 Level 1 Encryption: SD card edge recording with full encryption; end-to-end system encryption with compatible VMS. Meets federal data protection requirements for government and healthcare deployments.
• ONVIF Profile S Compliance: Works with Milestone, Genetec, i-PRO ProWatch, Avigilon, and any ONVIF-compliant platform. No proprietary gateway or codec license required.
• Audio Input/Output: Integrated audio I/O (AAC-LC 64–128 kbps) for paired microphone or speaker integration in retail, banking, or transit stations where audio verification adds evidentiary weight.

The WV-S1550L is a mature platform for sites where evidence quality and operational cost control are equally weighted. The H.265 codec and native IR capability eliminate two common capex items: external lighting and storage expansion. IR performance is sufficient for standard parking-lot and fence-line deployments; beyond 40 meters or in heavily shadowed areas, relocate the camera closer or accept B&W monochrome capture. The motorized lens is a strength for installers who need post-mounting focus and zoom adjustment, but it requires stable mounting—HVAC vibration or wind-driven camera sway will degrade IR focus clarity at night.

PoE 802.3af power and ONVIF Profile S streaming make integration straightforward. The camera pairs with any standards-compliant NVR or VMS without driver installation or proprietary management overhead. MicroSD card slot (encrypted edge recording) decouples local backup from network availability—useful for retail or transit sites where bandwidth congestion or brief network outages are routine. Audio I/O adds retail audio verification and intercom integration without a separate device. Motorized varifocal lens supports wall, ceiling, pole, corner, and rack mounting, adapting to complex installation geometries without hardware substitution.

Total cost of ownership benefits from H.265 bitrate reduction and integrated IR. On a 16-camera 24/7 deployment, H.265 saves 400–600 GB per week of NVR storage capacity versus H.264 at identical quality; that translates to a smaller NVR footprint and deferred storage upgrade cycles. FIPS 140-2 encryption module (Level 1 CAVP certified) satisfies federal data protection mandates for government and healthcare buyers without external HSM hardware. Motorized lens eliminates costly site revisits to adjust focus; installers can dial in framing and zoom from the office after initial mounting. Audio integration reduces auxiliary device count in retail or banking sites where multi-channel recording is required.

The WV-S1550L is sourced factory-new from the manufacturer and carries a 3-year manufacturer warranty. FIPS 140-2 Level 1 certification and end-to-end encryption with compatible VMS platforms meet data protection standards for regulated industries. ONVIF Profile S compliance ensures long-term platform flexibility—upgrades to new VMS vendors do not require camera replacement. For fixed outdoor surveillance in moderate-to-severe weather with continuous recording and forensic retention, the WV-S1550L's combination of H.265 efficiency, native IR capability, and sealed construction offers measurable advantages over budget consumer-grade alternatives and reduces operational overhead versus non-integrated lighting and encryption toolchains.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the WV-S1550L across retail chains, municipal parking facilities, and banking branches—it's a workhorse that balances forensic image quality with operational simplicity. The standout differentiator is the H.265 codec paired with native IR and motorized lens; most competitors in the 5MP fixed-box space offer one or two of those, not all three. On a 24-store retail network running 16 cameras per location with 30-day retention, we've consistently seen WV-S1550L deployments use 35–40% less NVR storage than H.264-only alternatives—that's real money on multi-year contracts. The IR performance (40m effective range) is honest—it covers parking lots and loading docks without external lighting rigs, but it's not a perimeter-surveillance solution beyond 150 feet. The motorized 2.9–9mm lens is excellent for post-installation adjustment; installers can dial in framing from the office after the camera is mounted, which eliminates costly second site visits. Where the WV-S1550L differs from Axis and Hikvision competitors is in FIPS 140-2 Level 1 encryption built into the camera itself—useful for government and healthcare buyers who need encrypted edge recording without external HSM appliances. The tradeoff is complexity: motorized lens requires stable mounting and careful initial VMS configuration to lock focus. If the camera vibrates (loose bracket, HVAC airflow, nearby traffic), IR focus clarity suffers noticeably at night. We've seen installers underestimate this—buy quality L-brackets and test focus on sample footage before final customer handoff.

Technical Highlights:

• H.265 Compression with H.264 Fallback: Native H.265 encoding reduces bitrate 40–60% on identical quality, dropping a 16-camera 24/7 recording from 2.5TB per week to 1.2–1.5TB. Automatic codec fallback to H.264 and MJPEG preserves compatibility on legacy Milestone or Genetec deployments without camera replacement.
• 120dB Super Dynamic WDR: Forensic-grade WDR eliminates tone mapping artifacts in extreme backlight. We've seen it maintain facial detail on sunlit store entrances and vehicle license plates in truck bay doors simultaneously—a real advantage over single-exposure or digital WDR competitors.
• 40-Meter IR with Active LED: Built-in IR LEDs, 0.0044 lx color and 0.003 lx monochrome night vision. Adequate for parking lots and dock areas without external lighting infrastructure—cuts capex and ongoing maintenance on outdoor lighting systems.
• FIPS 140-2 Level 1 Encrypted Edge Recording: SD card encryption and full end-to-end system encryption with compatible VMS. Federal data protection mandate compliance without separate hardware security module—a cost and integration simplification for regulated buyers.
• Motorized 2.9–9mm Varifocal (3.1x Zoom): Motorized focus and iris allow VMS or web interface remote adjustment post-installation. Eliminates costly site revisits to dial in framing; pay careful attention to mount stability during initial setup.

Deployment Considerations:

• IR range 40m is sufficient for parking lots and fence lines but inadequate for perimeter surveillance beyond 150 feet. If your target distance exceeds 150 feet, relocate the camera closer or pair with external IR floods (no integrated option available).
• Motorized lens requires stable mounting—HVAC vibration, wind sway, or loose brackets will degrade IR focus clarity at night. Invest in quality L-brackets and test focus on live IR footage before final customer sign-off. Don't underestimate this; it's the most common field issue we've seen.
• PoE 802.3af power (<13W draw) works with any managed or unmanaged PoE switch—no injector required. Cat5e cabling is adequate, but Cat6 is recommended for runs exceeding 75 feet to reduce voltage drop on high-power multi-camera configurations.
• ONVIF Profile S ensures compatibility with major VMS platforms (Milestone, Genetec, i-PRO ProWatch, Avigilon). Audio I/O (AAC-LC) requires matching VMS audio codec support—older platforms may drop audio track. Verify VMS documentation before audio-dependent deployments.
• MicroSD card edge recording provides encrypted local backup independent of network availability—valuable for retail and transit sites with bandwidth constraints. Industrial-grade cards (SanDisk Extreme or equivalent) are recommended; consumer-grade cards fail prematurely under continuous write cycles.
• H.265 encoding is efficient, but bitrate will vary with scene complexity. Backlit scenes (parking lots at dusk) generate higher bitrate than static interior shots—allocate NVR storage with 20% headroom above baseline to prevent overflow on complex outdoor scenes.

The WV-S1550L is the right camera for fixed-position outdoor surveillance where forensic image quality, operational cost control, and evidence retention drive the decision. Retail chains, municipal parking, and banking branches deploying 8+ cameras benefit most from H.265 bitrate savings and integrated IR. If your site requires perimeter surveillance beyond 150 feet, thermal imaging, or PTZ capability, this camera will not meet the need; consider Axis thermal or Hikvision PTZ alternatives. For standard parking-lot and dock-level deployments with continuous recording and multi-year retention, the WV-S1550L's H.265 efficiency and FIPS 140-2 encryption reduce capex and operational overhead versus multi-component (camera + external lighting + encryption appliance) solutions. Explore the full i-PRO catalog for thermal and panoramic variants.
