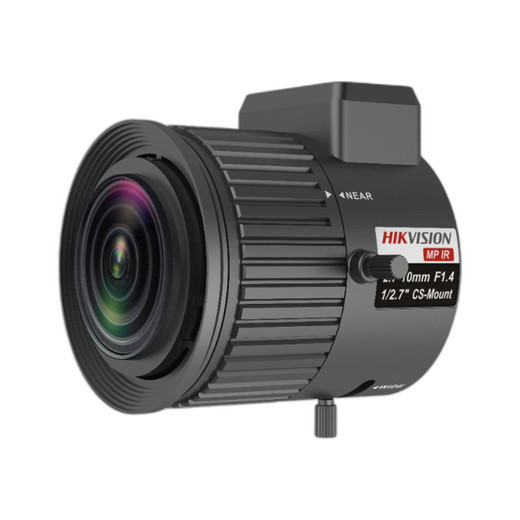

Hikvision TV2710D-MPIR 3MP Vari-Focal Auto-Iris Lens
Overview
The Hikvision TV2710D-MPIR is a modular optical lens designed for professional surveillance installations requiring field-of-view flexibility and adaptive exposure control across variable lighting. This 3MP vari-focal lens combines manual focal adjustment with intelligent DC auto-iris metering, making it a practical choice for retail, perimeter, and access-point deployments where lighting conditions fluctuate throughout the day and night. The TV2710D-MPIR (often searched as TV2710D MPIR) integrates with compatible Hikvision surveillance cameras to deliver consistent image quality without technician re-intervention during normal operation.
Key Features
- 3MP Resolution: Supports high-definition surveillance workflows with enough detail to capture faces, license plates, and merchandise across typical retail and perimeter coverage zones. At 3MP, this lens works well on standard surveillance displays and VMS systems without excessive bandwidth or storage demand.
- Vari-Focal Lens Design: Manual focal-length adjustment allows installers to customize field-of-view on-site without swapping lenses. This reduces inventory overhead and accelerates deployment timelines — particularly valuable when coverage zones vary across the installation footprint.
- DC Auto-Iris Control: The auto-iris mechanism responds dynamically to ambient light changes, automatically widening the aperture in dim conditions and narrowing it in bright sunlight. This prevents image washout under glare and maintains usable video in shadows, eliminating the need for manual iris tuning during commissioning or seasonal lighting shifts.
- Infrared Compatible: Engineered to work with IR-equipped camera bodies and external infrared illuminators, enabling 24/7 surveillance capability. When paired with an IR light source and a camera featuring an IR cut filter, the TV2710D-MPIR delivers effective nighttime monitoring. IR performance depends on the specific illumination wattage and distance — confirm your camera and light source specifications with the installer.
- Precision Optical Engineering: This is a dedicated lens assembly, not a generic optic. Hikvision lenses in this family are optimized for surveillance sensor performance, meaning contrast, edge sharpness, and color reproduction align with professional security expectations rather than generic industrial lens behavior.
- Modular Integration: As a standalone lens, the TV2710D-MPIR pairs with compatible Hikvision camera bodies that support interchangeable lens mounts. Verify mount compatibility and electrical connection type (DC auto-iris requires 12VDC control wiring) before purchasing.
Integration & Compatibility
The TV2710D-MPIR is a lens-only component. Integration success depends on three factors: (1) mechanical mount compatibility with your Hikvision camera body, (2) DC auto-iris wiring to the camera's iris control terminals, and (3) IR filter and illumination pairing if nighttime operation is required. Consult the camera body's datasheet and your integrator to confirm these prerequisites before ordering. This lens does not include standalone power or network connection — all control routes through the host camera.
For network video recorders and camera selection guidance, confirm codec support and storage planning on your endpoint infrastructure.
Deployment Contexts
The TV2710D-MPIR is suited for:
- Retail checkout areas and merchandise displays where lighting varies from fluorescent overhead to window glare.
- Building entrances and perimeter gates requiring consistent clarity across dawn, dusk, and night operations.
- Mixed-lighting warehouse zones where natural and artificial light overlap.
- Access-control points where detailed facial or credential imagery must remain usable regardless of backlighting.
- Installations where installers need on-site FOV adjustment to match coverage blueprints without maintaining multiple lens SKUs.
Frequently Asked Questions
Q: What camera bodies are compatible with the TV2710D-MPIR?
A: The TV2710D-MPIR requires a Hikvision camera body with a compatible interchangeable lens mount and DC auto-iris control terminals. Check your specific camera model's datasheet to confirm mount type and iris pin configuration before purchasing.
Q: Do I need to wire the auto-iris separately?
A: Yes. The DC auto-iris requires a dedicated 12VDC control line from the camera body. This is not powered over a single camera cable — confirm your camera provides iris control terminals and that your integrator can wire the connection during installation.
Q: Can the TV2710D-MPIR work without an external IR light?
A: The lens is IR-compatible, meaning it will not degrade IR light transmission. However, the camera body must include onboard IR illumination or you must install an external IR light source. If your camera has no IR capability, this lens alone will not enable nighttime vision — the light source is the limiting factor, not the lens.
Q: How much manual adjustment is needed during installation?
A: The vari-focal adjustment allows you to set the focal length once during commissioning to match your desired field-of-view. Once set, no further adjustment is needed; the auto-iris handles exposure changes automatically. Most installations require 15–30 minutes of focus tuning per camera.
Q: Is the TV2710D-MPIR suitable for outdoor use?
A: The lens itself has no published IP or IK rating. Outdoor deployment depends entirely on the camera body housing and lens enclosure. Confirm that your camera body is rated for outdoor conditions (typically IP66 or IP67) before mounting the TV2710D-MPIR in rain or dust-prone areas.
Q: What is the field-of-view range?
A: Focal length adjustability enables a range of fields-of-view, but the exact range is not specified in the available evidence. Consult the datasheet or your Hikvision distributor for precise focal-length specifications and corresponding horizontal/vertical angles.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The TV2710D-MPIR solves a real integration problem: how to deploy modular optics without sacrificing exposure consistency. Most surveillance integrators stock multiple fixed lenses to handle the range of focal lengths required across a facility. This approach bloats inventory and creates confusion during deployment. The vari-focal + auto-iris combination on the TV2710D-MPIR cuts that overhead significantly — technicians adjust focal length once during commissioning, and the auto-iris mechanism eliminates the need for manual iris tuning as lighting conditions shift throughout the day.
Technical Highlights:
- Vari-Focal Range: Manual focal adjustment without lens swapping reduces parts inventory and deployment complexity. On-site tuning means you match coverage to actual site topology rather than pre-guess focal length based on floor plans.
- DC Auto-Iris Metering: Automatic aperture control prevents overexposure in bright conditions (window backlight, parking lots under noon sun) and maintains shadow detail in dimly lit hallways or back-room storage. The mechanism responds to ambient light without frame-by-frame software processing, which means faster response and more stable video than digital gain compensation alone.
- IR Compatibility: The optical path is transparent to 850nm infrared wavelengths. Paired with a camera body featuring an IR cut filter and onboard or external IR illumination, this enables round-the-clock surveillance without a second lens swap at dusk. Performance (range, detail) is entirely dependent on illumination wattage and distance — this is not a constraint of the TV2710D-MPIR itself, but of the light source you choose.
Deployment Considerations:
- Mount and Wiring: The TV2710D-MPIR is a lens-only component. Successful integration requires a compatible Hikvision camera body with both the correct mechanical mount and DC auto-iris control terminals. Verify both before ordering — a mount mismatch or missing iris control pins will stall your project.
- Outdoor Ratings: The lens itself carries no IP or IK rating. If you are deploying outdoors, the camera body enclosure must provide environmental protection. A 3MP lens on an unrated camera body exposed to rain will fail quickly. Confirm your camera is rated IP66 minimum before mounting it outside.
- IR Light Source: IR compatibility means the lens passes infrared light efficiently, but it does not emit it. You must provide an IR light source (onboard to the camera or external) to enable night vision. Verify your camera's IR specifications and the coverage distance you need before assuming this lens delivers 24/7 operation.
The TV2710D-MPIR is the right choice for retail or perimeter deployments where field-of-view varies across zones and lighting transitions from bright to dim throughout the operational window. The combination of vari-focal adjustment and auto-iris control makes it a practical enabler for multi-zone deployments; you reduce the number of distinct lens SKUs you carry while maintaining exposure stability across all light conditions. Skip this lens if your site has a single fixed focal-length requirement or if your camera body lacks DC iris control terminals.
