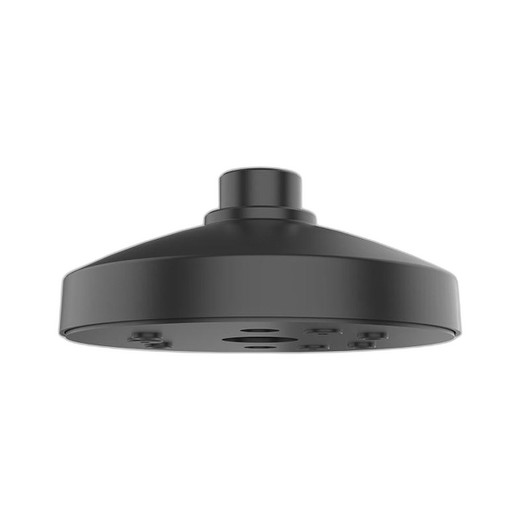

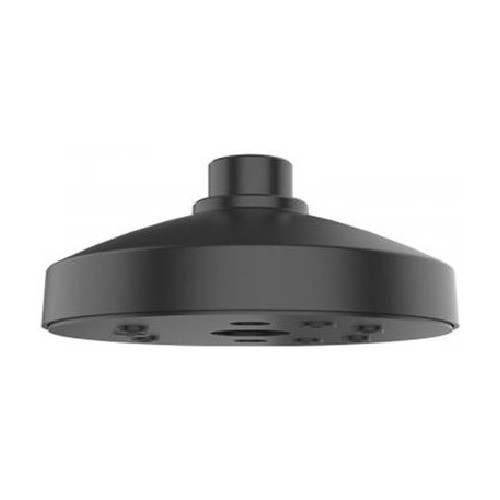

Hikvision PC130TB Pendant Cap for Mini Turret Camera
The PC130TB is a purpose-built mounting accessory for ceiling-installed Hikvision mini turret surveillance cameras. This pendant cap bridges the gap between your camera and the ceiling, handling the structural load while protecting the connection from environmental exposure — a critical detail if your installation sits in a warehouse, parking facility, or any space with moisture, dust, or temperature swings.
Key Features
- Aluminum Alloy Construction: Weighs only 190 g (6.7 oz) but resists corrosion in damp or salt-air environments. Aluminum dissipates heat passively, so cable runs inside the pendant won't accumulate condensation if there's any temperature differential between ceiling cavity and the mounted camera.
- Waterproof Design: Rated for both indoor and outdoor deployments where rain, dust, or washdown water is a concern. The sealed form factor prevents water ingress that would otherwise pool around the camera mounting point and migrate into your building.
- Compact Form Factor: Dimensions of 132 mm × 62 mm (5.2" × 2.4") integrate cleanly into drop-ceiling grids and architectural soffits without creating visual clutter or becoming an obvious obstruction in open-plan spaces.
- Integrated Adaptor Plate: Matches the thread and mounting footprint of Hikvision mini turret cameras, eliminating the need for field-fabricated spacers or improvised fastening solutions that can introduce vibration and misalignment over time.
- Black Finish: Blends into suspended ceilings and dark architectural surfaces, reducing the pendant's visual prominence in retail, office, and educational settings where camera visibility is a concern.
- Cable Routing: The pendant cap routes power and video cabling vertically through the mounting arm, keeping cables organized and reducing the risk of damage during maintenance or accidental contact in high-traffic areas above drop ceilings.
Integration & Compatibility
The PC130TB is engineered for Hikvision DS-2CE55, DS-2CE56, and DS-2CD23 series mini turret cameras. Before ordering, confirm your specific model number against the compatibility list — mixing pendant caps and cameras from different manufacturers or model families can result in loose mounts, misalignment, and eventual drift that degrades image quality over weeks or months of vibration.
Installation pairs the pendant cap with ceiling-mounted electrical boxes or concrete anchors depending on your substrate. Standard fasteners (typically M6 or M8 bolts, not included) secure the cap to both the ceiling and the camera base. The adaptor plate sits between the turret and the pendant arm, creating a stable three-point interface.
Applications
Typical deployments include parking garages (where automotive exhaust and moisture require corrosion-resistant hardware), distribution centers and warehouses (where the pendant's compact profile avoids interference with overhead cranes and racking systems), commercial office buildings, educational facilities, and exterior covered loading docks. The waterproof design handles outdoor-covered scenarios where cameras face light rain or spray without the need for separate weatherproof enclosures.
Frequently Asked Questions
Q: Does the PC130TB work with cameras other than Hikvision mini turrets?
A: No. The pendant cap is engineered specifically for Hikvision DS-2CE55, DS-2CE56, and DS-2CD23 series cameras. Using it with other brands or models risks an unstable mount and potential camera fall or drift.
Q: Is the pendant cap rated for outdoor use?
A: The waterproof design handles outdoor-covered installations (covered loading docks, canopies, soffit overhangs). For full-weather exposure with direct rain and wind load, verify that your camera model itself is IP66 or higher rated, and consider supplementary weather protection for the entire assembly.
Q: What is the weight capacity of the PC130TB?
A: The pendant cap is rated for mini turret cameras, typically under 300 g. Do not mount heavier camera bodies or optical accessory boxes on this pendant; the aluminum arm will fatigue and eventually fail under load beyond its design envelope.
Q: What fasteners do I need to install it?
A: The package includes the pendant cap, adaptor plate, and installation manual. You will need standard bolts (typically M6 or M8, depending on your ceiling substrate) and appropriate anchors for concrete, steel, or gypsum board. Check the installation manual for specific fastener sizes and torque specifications.
Q: Can the pendant cap be used indoors and outdoors in the same facility?
A: Yes. The waterproof aluminum construction handles both climates without degradation, so you can deploy the same part number across warehouse interior bays and exterior covered areas.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PC130TB is a mounting detail that most integrators get right by habit but often undersize in the specification phase. The pendant cap is not a load-bearing structural component — it is a cable raceway and vibration isolator. If your drop ceiling is flimsy or your overhead framing is undersized, the camera will drift or oscillate despite a perfect pendant cap. That said, choosing aluminum over plastic here is the right call. The thermal stability alone — aluminum won't expand and contract as ceiling temperature swings over a 24-hour cycle — keeps your field of view from shifting imperceptibly between night and day shifts. Over months, that compounds into real coverage loss.
Technical Highlights:
- Aluminum Alloy vs. Plastic: Aluminum's coefficient of thermal expansion is roughly one-third that of polycarbonate or ABS, meaning your camera alignment stays put across seasonal temperature swings and daily HVAC cycling. In a warehouse with no climate control, that's the difference between a stable image and one that drifts 2–3 pixels per month.
- Waterproof Seal: The pendant cap prevents water pooling around the camera base where condensation or ceiling leaks would otherwise accumulate and migrate into the electrical connector. In facilities with high humidity or washdown protocols (food processing, chemical storage), this sealed design prevents salt-fog corrosion of the connector pins inside the camera body.
- Compact Profile (132 mm height): Fits into standard 2-foot or 4-foot drop-ceiling grids without protruding into the plenum space. If your site has low overhead clearance or dense cable bundles in the ceiling cavity, you won't waste real estate or fight cable routing. Matters more than it sounds in retrofit jobs where ceiling space is already crowded.
Deployment Considerations:
- Fastener Specification is your responsibility: The PC130TB comes with the adaptor plate but not the bolts or anchors. Your ceiling substrate (gypsum board, concrete, sheet metal deck) determines anchor type and size. Under-spec fasteners will creep, and over-torqued fasteners will strip aluminum threads. Check the installation manual and test-fit before final deployment across dozens of ceiling points.
- Weight Limit: Mini turret cameras typically run 250–300 g. If your site adds supplementary lens extenders, IR illuminators, or junction boxes to the mounting point, you are exceeding the pendant cap's design load and inviting fatigue failure. Keep the pendant arm purpose-built — no field modifications, no auxiliary hardware bolted to the camera base.
Use the PC130TB when you are mounting Hikvision mini turrets in drop ceilings or architectural soffits and your ceiling framing is solid. In facilities with high humidity (parking garages, food processing, agricultural storage) or outdoor-covered areas, the aluminum construction and waterproof seal justify the cost. If your ceiling is flimsy or you need to support extra payload, consider a heavier-duty bracket or wall-mount instead — the pendant cap assumes a stable ceiling structure behind it.
