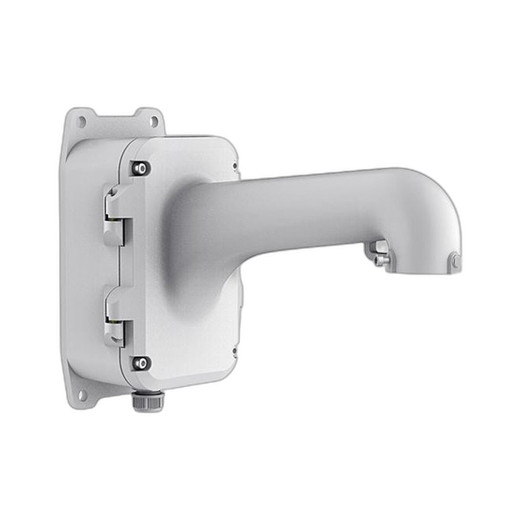

Hikvision JBPW-L Wall Mount Bracket for Speed Dome
The JBPW-L is a purpose-built wall mounting bracket engineered for Hikvision Speed Dome cameras. This accessory solves a practical installation problem: mounting a PTZ or motorized dome camera on a vertical wall surface while managing power and cabling cleanly. The bracket combines material durability with integrated power conditioning, making it suitable for retail stores, office building facades, transportation terminals, and industrial facilities where wall-mounted coverage is required.
Key Features
- Aluminum Alloy with Surface Spray Treatment: Resists corrosion and environmental oxidation — matters if the bracket is exposed to humidity, salt spray, or temperature swings. Extends bracket lifespan without maintenance.
- Integrated 24 VAC, 3 A Junction Box: Eliminates the need for a separate wall-mounted enclosure for the power adapter. Keeps wiring organized behind the bracket rather than hanging exposed. Reduces installation clutter and improves aesthetics.
- Flexible Outlet Configuration: Supports both bottom and rear outlet routing. Adapts to wall layouts where cable conduit runs vertically or horizontally — no forced rework if your power/signal lines don't align with the bracket's default outlet location.
- Integrated Safety Rope Hook: Attachment point for a safety lanyard during installation and maintenance. Reduces risk of the dome falling during setup, especially useful when working at height or on exterior walls.
- White Finish: Neutral color blends with typical building exteriors and interior ceilings. Custom paint or powder coating is not required for most environments.
- Speed Dome Optimized Design: Engineered specifically for Hikvision Speed Dome camera mounting patterns. Do not assume this bracket fits other brands' dome cameras without verifying mount thread or bolt-hole alignment.
Integration & Compatibility
This bracket is compatible with Hikvision PTZ and Speed Dome cameras only. Before purchase, confirm your dome model matches Hikvision's Speed Dome family. The integrated junction box is sized for standard 24 VAC, 3 A power adapters — verify your dome's power requirement does not exceed this rating. If your installation requires more than 3 A (for example, a large motorized dome with heaters or additional accessories), this bracket's junction box cannot supply sufficient power; a separate external power supply will be needed instead.
Outlet flexibility supports both conduit runs and direct cable routing. If your installation uses flexible conduit or cable bundles routed along the wall, rear outlets provide a cleaner appearance. If power and signal cable enter from below, bottom outlets offer simpler routing without bends or strain relief stress.
What's in the Box
Mounting bracket assembly (JBPW-L), integrated junction box, safety rope hook, and hardware for wall installation. Specific fastener counts and types are not detailed in the source documentation; verify compatibility with your wall material (concrete, steel, wood) before installation and select anchors accordingly.
Frequently Asked Questions
Q: Does the JBPW-L work with non-Hikvision Speed Dome cameras?
A: No. This bracket is engineered specifically for Hikvision Speed Dome mounting patterns. Third-party domes may have different bolt-hole spacing or thread sizes and will not secure safely to this bracket.
Q: What is the maximum power capacity of the integrated junction box?
A: The junction box supports 24 VAC, 3 A maximum. If your Speed Dome and accessories draw more than 3 A, you must use an external power supply instead of the bracket's integrated box.
Q: Can I mount the JBPW-L to a ceiling instead of a wall?
A: This bracket is designed for wall mounting. Ceiling mounting is not supported and may pose a safety risk due to the bracket's load distribution design.
Q: Does the bracket include cable conduit or conduit adapters?
A: No. The bracket provides outlet access points (bottom and rear). You must supply your own conduit, cable bundles, or strain relief fittings appropriate to your wall construction and cable diameter.
Q: What surface preparation is needed before installation?
A: Verify the wall surface is structurally sound and capable of supporting the combined weight of the bracket (4.74 lbs) plus your Speed Dome camera (typically 2–5 lbs depending on model). Use wall anchors rated for your wall type (concrete, masonry, drywall, steel). Pre-drill holes to prevent cracking.
Q: Is the JBPW-L rated for outdoor exposure?
A: The aluminum alloy and spray treatment provide corrosion resistance, but no official IP or environmental rating is stated. Use in covered or semi-sheltered wall locations to extend service life. Direct rainfall exposure over extended periods may degrade the finish.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The JBPW-L (often searched as JBPW L) is a no-nonsense bracket that does one job well: mount a Hikvision Speed Dome on a vertical wall without exposing power adapters or creating cable management headaches. The 4.74 lbs weight rating and integrated aluminum construction mean this bracket will outlast the typical 5-year camera lifecycle if installed correctly. The integrated 24 VAC, 3 A junction box is the differentiator here — it eliminates a separate wall enclosure, which saves both installation labor and materials cost.
Technical Highlights:
- Aluminum Alloy with Surface Spray Treatment: Corrosion resistance extends outdoor deployments without requiring powder coating or additional sealing. Matters in coastal, industrial, or high-humidity environments where bare steel brackets degrade in 2–3 years.
- Integrated 24 VAC, 3 A Junction Box: Accepts standard power adapters without requiring a separate conduit box. Saves ~$100–150 in enclosure hardware and installation time. However, verify your dome's total current draw — motors, heaters, and IR illumination can approach or exceed 3 A, especially in larger models.
- Flexible Bottom/Rear Outlets: Adapts to wall layouts where conduit or cabling runs vertically or horizontally. Prevents forced cable bends that stress connectors and reduce MTBF.
Deployment Considerations:
- Confirm your Speed Dome camera's mounting pattern and bolt-hole spacing against the JBPW-L before ordering — this bracket is Hikvision-specific and will not adapt to Axis, Bosch, Vivotek, or Hanwha dome mounts.
- The 3 A power ceiling is a real constraint. If your dome includes motorized zoom, pan/tilt drive, and built-in heater, you may exceed this limit; measure actual current draw under full tilt, pan, and zoom operation before finalizing the installation design.
- No IP or environmental rating is stated. This bracket is suitable for covered wall installations (building overhangs, recessed wall alcoves, interior walls) but not for direct rain exposure or spray zones. If your deployment is fully exposed to weather, consider mounting the camera on a pole or pedestal instead and route power through weatherproof conduit.
Best fit: retail storefronts, office building perimeters, airport terminals, and warehouse receiving bays where wall-mounted Speed Dome coverage is required and cable management is a secondary concern. Skip this bracket if your dome is ceiling-mounted, if power demand exceeds 3 A, or if the mounting location experiences direct weather exposure.
