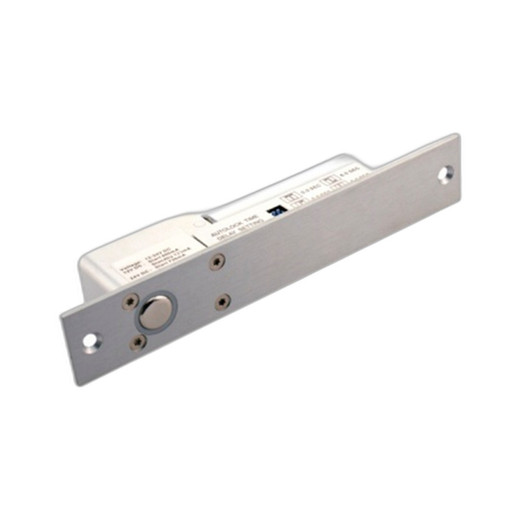

Hikvision DS-K4T100 Electric Bolt Lock
The Hikvision DS-K4T100 is a robust electric bolt controller designed for seamless integration into modern access control systems. Built for commercial, institutional, and high-security environments, this fail-safe locking mechanism provides reliable security for glass doors, wooden doors, metal doors, and fireproof doors. With a maximum thrust of 800 kg (1764 lb), the DS-K4T100 delivers the holding force required for demanding applications while maintaining low power consumption and simple installation across diverse door types.
Key Features
- High-thrust electric bolt with 800 kg maximum holding force
- Fail-safe design—automatically unlocks during power failure for emergency egress
- Polished and brushed stainless steel construction for durability and corrosion resistance
- Universal door compatibility: glass, wooden, metal, and fireproof doors
- Signal output with NC/COM door status contact for system feedback
- Configurable delay duration: 0, 3, 6, or 9 seconds
- Magnetic induction sensing with 8 mm (0.31") detection distance
- Low standby power consumption: 100 mA at 12 VDC
Technical Specifications
- Power Supply: 12 VDC ±10%, 900 mA startup current, 100 mA standby
- Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Operating Humidity: 0 to 95% relative humidity
- Dimensions: Lock Body 205 × 35 × 40 mm; Bolt 16 × 16 mm
- Weight: 1.54 lbs
- Material: Stainless steel (polished and brushed)
Applications
Ideal for access control integration in office buildings, data centers, laboratories, healthcare facilities, and secure entry points requiring reliable electronic locking. Compatible with card readers, biometric systems, keypads, and centralized access control platforms.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-K4T100 excels in environments where fail-safe operation is critical. Its 800 kg thrust rating handles heavy-duty door applications without compromise, while the stainless steel construction resists corrosion in humid or demanding conditions. The configurable delay duration (0–9 seconds) provides flexibility for integrating with various access control workflows.
The 8 mm magnetic induction distance ensures reliable armature detection even with slight misalignment. For system integrators, the signal output NC/COM contact enables real-time door status monitoring in networked security systems. Low standby power consumption (100 mA) makes it suitable for installations requiring extended operation without significant energy overhead.
Installation across multiple door types—from glass to fireproof—positions the DS-K4T100 as a versatile controller for mixed-environment deployments.
