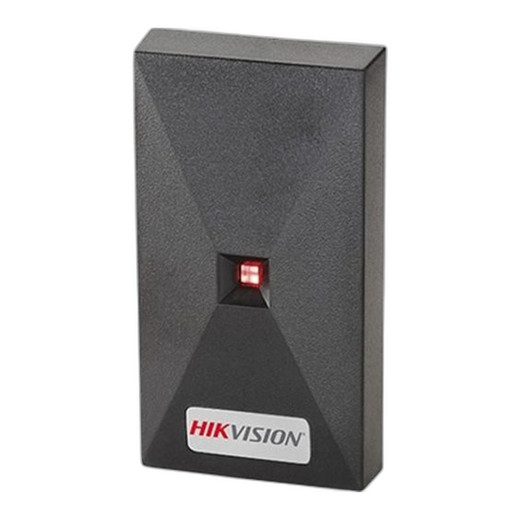

Hikvision DS-K182HP Cascade Proximity Reader

Hikvision DS-K182HP Cascade Proximity Reader

The DS-K182HP is a 125 kHz proximity reader built for outdoor and harsh-environment access control deployments. Its cascade architecture lets you daisy-chain multiple readers across large perimeters without running individual control lines to each unit—a meaningful cost and labor reduction on multi-building campuses or industrial sites. Potted electronics and IP67 sealing mean you're not replacing readers every 18 months when weather or dust takes its toll.

Key Features

• Cascade Interconnection: Multiple readers link together in a chain, reducing installation labor and cabling runs compared to point-to-point wiring. Useful for parking structures, perimeter gates, and warehouse docks where reader density matters but trenching new control lines is expensive or impractical. Simplifies database point mapping on access control panels since you're managing fewer individual reader inputs.
• 125 kHz Proximity Technology: Standard card-read protocol found in most legacy and modern access control panels. No protocol conversion or gateway needed—integrate the DS-K182HP directly into Honeywell, Napco, DSC, Lenel, or any modern IP-based system with a Wiegand input card. Reduces vendor lock-in on future panel upgrades.
• 5-Inch Read Range (126 mm): Short enough to prevent unauthorized scanning from distance (someone cannot read your badge from across a parking lot), yet practical for normal card presentation at a door frame or mullion. Balances security intent with user convenience and eliminates false reads from adjacent areas.
• Wiegand 26 Wired Output: Direct integration into standard access control systems without proprietary adapters. Simplifies troubleshooting and reduces vendor lock-in on panel replacements. Supports both point-to-point and cascade daisy-chain wiring topologies.
• IP67 Environmental Rating: Full protection against dust ingress and temporary submersion. Suitable for outdoor gates, rooftop access, and locations exposed to hosing or spray. Epoxy-potted internals resist corrosion and tampering attempts, extending reader lifespan in coastal, industrial, or dusty environments where standard indoor readers would fail within months.
• Operating Temperature Range: -40°C to 65°C (-40°F to 149°F): Covers arctic warehouses and desert industrial sites without requiring heated or cooled enclosures. Eliminates climate-control costs for remote reader locations and simplifies multi-climate deployments across a single organization.
• Low Power Draw (30 mA Typical, 75 mA Peak @ 12 VDC): Efficient enough for solar-powered remote gates or long wire runs where voltage drop is a concern. Reduces strain on battery backup systems and lowers overall facility power consumption. Operates reliably on 5–16 VDC, so installation flexibility is high—standard access control power supplies handle this without special sourcing.
• Four-State LED Indicators: Red, green, amber, and off states provide immediate visual feedback on card-read success or system status. Useful for installers during commissioning and for users confirming access grant. Reduces support calls from users uncertain whether their card was registered.
• Built-in Beeper: Audible confirmation of card detection and read. Reassures users their card was registered, reducing false re-presentations and user frustration in high-traffic entry points.
• Compact Form Factor (1.7" × 3.2" × 0.7"): Minimal footprint accommodates mullion mounts, metal door frames, and window installations without requiring custom fabrication or large escutcheon plates. Retrofits into existing architectural constraints without costly structural modifications.
• Flexible Mounting: Supports installation on mullions, metal doors, window frames, and flat surfaces. Adapts to existing door hardware without retrofit costs—critical for retrofitting older buildings where standardized mounting is impossible.

Integration & Compatibility

The DS-K182HP connects via Wiegand 26, the de facto standard for proximity access control. Install it directly into legacy panels (Honeywell, Napco, DSC, Lenel) or modern IP-based systems with a Wiegand input card or gateway. Cascade wiring reduces the number of individual reader lines required, lowering panel input-card density and simplifying database point mapping on large multi-building sites.

Cabling requirements are straightforward: 24 AWG minimum, multi-conductor stranded with overall foil shield. Standard 5–16 VDC supplies (available from any access control panel) power the reader; no PoE or exotic power inputs to source. Long wire runs are supported within normal voltage-drop tolerances for access control wiring (typically up to 500 feet depending on gauge and supply voltage).

Certifications (FCC, ICC, CE, C-Tick, UL 294) confirm commercial and institutional suitability across North American and international installations, reducing approval friction on regulated sites (data centers, healthcare, government).

When to Choose a Different Model

If your deployment requires long-range scanning (beyond 5 inches) to reduce card-presentation friction on high-traffic gates, consider a higher-range proximity variant in the Hikvision family. If you need integrated multi-technology support (proximity + Mifare + DES in a single reader), evaluate modular reader families. For applications where cabling is impractical (truly remote gates), wireless or Bluetooth-enabled readers eliminate the cascade-wiring advantage of the DS-K182HP entirely.

Frequently Asked Questions

Q: Can I daisy-chain the DS-K182HP with other reader types?

A: No. Cascade wiring is specific to Hikvision proximity readers compatible with the cascade protocol. Mixing reader types (e.g., proximity + Mifare) requires individual control lines or a multi-technology reader.

Q: What's the maximum cascade chain length?

A: Consult the DS-K182HP datasheet for maximum number of readers in a single chain and total wire-run length. Voltage drop and signal integrity degrade with chain length; installation commissioning should verify each reader responds consistently.

Q: Is the DS-K182HP suitable for saltwater or coastal environments?

A: IP67 rating and epoxy-potted electronics provide strong corrosion resistance. For extreme coastal spray or saline atmospheres, specify stainless-steel mounting hardware and confirm with the manufacturer that your specific environment (salt-fog test rating, if applicable) is covered by the potting and sealing design.

Q: Can I use the DS-K182HP indoors on an interior mullion?

A: Yes. The reader is rated for outdoor and harsh environments, so indoor use is fully supported. IP67 is not required indoors, but the compact form factor and flexible mounting make it suitable for interior door frames, stairwell access, and tenant suites.

Q: What voltage should I use for optimal read range and performance?

A: The DS-K182HP supports 5–16 VDC. Higher voltages (12–16 VDC) optimize read range and LED brightness. Lower voltages (5–9 VDC) reduce power draw but may reduce read reliability in noisy environments. Standard practice is 12 VDC.

Q: Does the DS-K182HP work with modern cloud-based or IP access control systems?

A: The reader itself is wired and outputs Wiegand 26, a legacy protocol. It integrates into cloud systems via a Wiegand-to-IP gateway or bridge at the panel level. Confirm your system vendor supports Wiegand input; many modern cloud access systems still require a local panel or gateway for legacy reader protocols.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-K182HP is a pragmatic choice for multi-reader perimeter deployments where cabling cost and installation labor dominate the project budget. The cascade architecture alone—chaining five or six readers across a warehouse perimeter without running individual control lines back to the panel—can save 20–30% of installation time on industrial sites. The 5-inch read range keeps tailgating risk low while remaining practical for real-world card presentation at speed.

Technical Highlights:

• Cascade Wiring: Reduces panel input-card footprint and labor costs significantly on large perimeter installations. A six-reader perimeter drops from six individual wiring runs to a single daisy-chain loop—meaningful savings on trenching and conduit in outdoor deployments.
• IP67 + Potted Electronics: Outdoor-rated sealing and epoxy potting handle dust, rain, spray, and temperature extremes (-40°C to 65°C). Eliminates enclosure upgrades and HVAC costs for remote locations—critical for rooftop, dock, and coastal gate deployments where standard readers corrode or fail seasonally.
• 30 mA Typical Draw @ 12 VDC: Low power consumption supports long wire runs (500+ feet with appropriate gauge) and battery-backed remote gates without straining infrastructure. Cascade topology compounds this benefit—multiple readers draw proportional current, yet use a single supply line rather than parallel runs.

Deployment Considerations:

• Cascade topology is Hikvision-specific; confirm panel support for cascade protocol before specifying. Legacy panels (Honeywell, Napco, DSC) may require firmware updates or individual wiring fallback.
• The 5-inch read range is intentionally short for security. Users must present cards within 4–6 inches. High-traffic entries (>50 passes/hour) may experience minor friction; test during site surveys if volume is a concern.
• Wiegand 26 output requires a Wiegand input on the panel or gateway. Cloud-only access control systems need a local bridge device; confirm your VMS or cloud provider supports this topology before design approval.

Deploy the DS-K182HP on perimeter gates, warehouse docks, and multi-building campuses where IP67 durability, cascade labor savings, and outdoor temperature resilience offset the read-range tradeoff. For high-security, low-traffic facilities (data centers, server rooms), the short range is an asset. For high-volume pedestrian entry, consider a longer-range variant or supplementary authentication.
