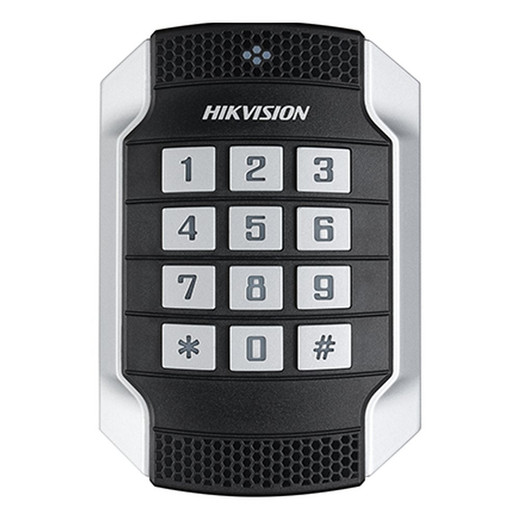

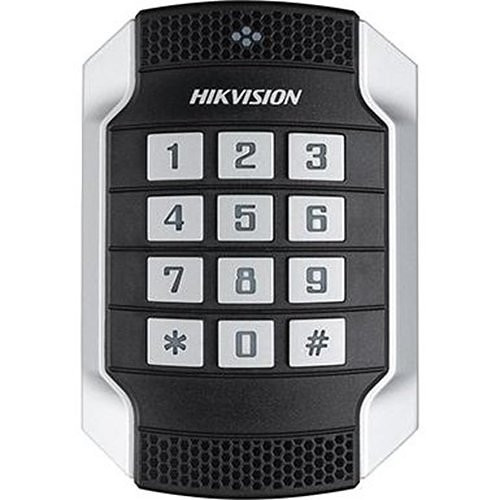

Hikvision DS-K1104MK Vandal-Proof Mifare Card Reader with Keypad

Hikvision DS-K1104MK Vandal-Proof Mifare Card Reader with Keypad

The DS-K1104MK is a wired card reader engineered for access control in high-risk environments where mechanical tampering or forced entry is a genuine threat. It combines Mifare 1 card reading at 13.56 MHz with an integrated 12-key numeric keypad (0–9, *, #) to enforce dual-factor authentication — a card swipe plus a PIN — without requiring separate peripherals. Built from polycarbonate and zinc-alloy materials with an IK10 impact rating, this reader survives direct blows from sledges and pry bars that would destroy standard readers.

Key Features

• IK10 Vandal Rating: The highest mechanical impact protection available. Standard readers typically rate IK07 or IK08; IK10 means this device absorbs direct sledge impacts without functional degradation — critical for unattended outdoor booths, warehouse loading docks, and prison facilities where readers face deliberate destruction.
• Mifare 1 Card Support: Native 13.56 MHz ISO/IEC 14443 Type A compatibility. Mifare cards are the industry standard in large deployments; choosing this reader means no costly card replacement if you migrate from another system, and broad supply availability reduces lead times.
• Integrated 12-Key Keypad: Numeric entry for PIN codes or supplementary authentication. Eliminates the cost and wiring complexity of a separate PIN pad, and centralizes all reader intelligence in one compact housing — simplifies troubleshooting and reduces single points of failure.
• Audible + Visual Feedback: Built-in buzzer and LED indicators confirm successful card reads and access events. On noisy warehouse floors or in high-traffic areas, dual feedback ensures users know whether their card was accepted or rejected without needing to watch a distant display.
• Low Power Consumption (≤2W): Draws just 12 VDC at ≤500 mA. This is relevant for distributed access control architectures where you're running readers on long wire runs or daisy-chaining multiple readers to a single 12V supply — a reader pulling 2W won't degrade voltage to downstream devices.
• Wide Operating Temperature (-20°C to 65°C / -4°F to 149°F): Operates reliably in unheated or partially heated industrial spaces, cold-storage facilities, and outdoor semi-sheltered installations without requiring environmental enclosures. Most standard readers cap out at 0°C or +50°C; this temperature span matters if you're deploying in northern warehouses or sun-exposed exterior walls.
• Compact Form Factor (118 × 76 × 23 mm): Mounts flush to standard 86 or 120 gang boxes — fits existing wall preparation in renovations without additional construction. The low-profile depth (23 mm) means it won't protrude into tight door-frame installations.
• DIP Switch Configuration: ID and setting adjustments use DIP switches rather than software—no need to carry a laptop or proprietary tool to commission a reader on-site. Reduces deployment time and lowers the skill floor for field technicians.

Integration & Compatibility

The DS-K1104MK (often searched as DS K1104MK) integrates with Hikvision access control platforms via standard wired reader protocols. It also works with third-party systems that support ISO/IEC 14443 Type A Mifare readers and basic numeric keypad input. The wired architecture eliminates radio-frequency interference — important in facilities with dense wireless networks or near microwave broadcast equipment.

When to Choose a Different Model

If your environment does not require IK10 impact protection (e.g., climate-controlled office lobbies, secured server rooms, or facilities with physical perimeter fencing), Hikvision offers lower-cost non-keypad card readers without the vandal hardening. If you need wireless credential readers, contactless card readers without PIN capability, or readers supporting additional credential types (facial recognition, biometric), explore alternative reader families in the Hikvision access control catalog.

Frequently Asked Questions

Q: Is the DS-K1104MK compatible with existing Mifare card stocks?

A: Yes. The reader operates at 13.56 MHz per ISO/IEC 14443 Type A and supports standard Mifare 1 cards. If your facility already issues Mifare credentials, no card replacement is needed.

Q: Can I use the keypad for PIN-only access without a card?

A: The DS-K1104MK requires a Mifare card swipe as the primary authentication method. The keypad is a secondary factor. If you need PIN-only or keypad-only operation, verify your access control platform's logic or consult a system integrator.

Q: What power supply do I need?

A: The reader requires a dedicated 12 VDC power supply rated for at least 500 mA. Typical installations use regulated 12V supplies or power distribution modules with surge protection. Budget ≤2W per reader when calculating total supply capacity for multiple readers.

Q: Will the DS-K1104MK survive direct outdoor rain exposure?

A: The reader is rated IK10 (impact) but not specified for IP67 or higher water immersion. It is suitable for semi-outdoor installations with roof coverage or wall-mounted locations sheltered from direct rainfall. For fully exposed outdoor sites, consult a system integrator about weatherproof enclosures or dedicated outdoor-rated readers.

Q: How do I configure the reader ID on site?

A: Configuration is performed via DIP switches on the reader circuit board — no software required. Reference the product datasheet for the DIP switch lookup table corresponding to your desired reader ID.

Q: Can I integrate the DS-K1104MK with Milestone XProtect or Genetec?

A: The DS-K1104MK is a standalone card reader; it connects to Hikvision access control platforms. Integration with third-party VMS systems depends on middleware or gateway devices that bridge your access control system to Milestone or Genetec. Consult your system integrator or Hikvision reseller for compatibility.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-K1104MK is a straightforward vandal-resistant reader for facilities where physical attacks on access hardware are a realistic threat. The IK10 rating is the standout spec here — it's not marketing language. IK10 means the reader shrugs off a 20 kg sledge dropped from 1.5 meters. Standard IK07 or IK08 readers will fail under that abuse. If you're deploying readers in unattended loading docks, prison perimeters, or any site with a history of equipment damage, the engineering cost of the DS-K1104MK pays for itself in avoided downtime and replacement cycles.

Technical Highlights:

• IK10 Impact Rating: Withstands sledge-hammer blows and deliberate prying without functional loss — standard readers typically rate IK07 or IK08 and fail catastrophically under similar attacks.
• Low Power Consumption (≤2W): At 12 VDC and ≤500 mA, this reader integrates easily into distributed architectures with long wire runs or daisy-chained supplies — no power budget headaches.
• Temperature Range (-20°C to 65°C): Operates in unheated warehouses, cold-storage facilities, and partially outdoor installations without environmental enclosures — most readers cap out at 0°C or +50°C.

Deployment Considerations:

• The reader is NOT rated for direct submersion or continuous rain exposure — suitable for semi-outdoor installations with roof or wall shelter, but not fully exposed outdoor sites. If you need true outdoor operation, plan for a weatherproof enclosure or migrate to dedicated outdoor-rated hardware.
• The dual-factor (card + PIN) architecture is only as strong as your access control platform's logic — verify that your system enforces the PIN requirement and doesn't allow card-only fallback.

Best fit: high-security warehouses, loading facilities, correctional institutions, and data centers where readers face real mechanical threats. If you're in a climate-controlled lobby or office with perimeter fencing, the IK10 hardening is unnecessary cost — opt for a standard reader instead.
