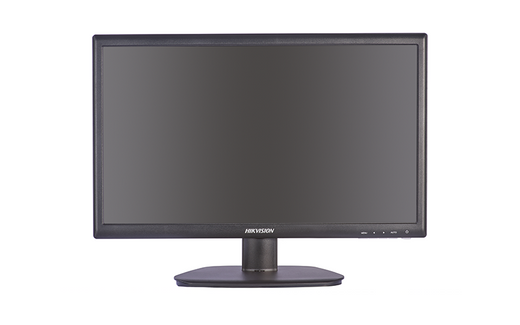

Hikvision DS-D5024FC 24-Inch Full HD LCD Monitor

Hikvision DS-D5024FC 24-Inch Full HD LCD Surveillance Monitor

The Hikvision DS-D5024FC is a professional-grade 24-inch Full HD LCD surveillance monitor engineered for continuous monitoring operations in security control centers, retail environments, and corporate facilities. With its 2MP resolution and advanced display technologies, this monitor delivers crisp, detailed imagery essential for effective threat detection and incident documentation.

Key Features

• 23.8-Inch Full HD Display: Native 2MP resolution with 527.04 × 296.46 mm active display area for sharp, detailed surveillance footage
• E-LED Backlight Technology: Delivers 250 cd/㎡ brightness with 4000:1 contrast ratio for superior image clarity in varied lighting conditions
• Ultra-Wide Viewing Angles: 178° horizontal and vertical viewing angles enable comfortable monitoring from multiple positions without image distortion
• Multiple Input Options: HDMI 1.4, VGA, and CVBS inputs accommodate diverse surveillance equipment and legacy systems
• Rapid Response Time: 6.5 ms response time at 60 Hz refresh rate ensures smooth motion rendering for dynamic surveillance scenarios
• 24/7 Reliability: Rated for 7 × 18-hour continuous operation with robust thermal management across 0–40°C working temperatures
• Energy Efficient: Ultra-low 25W maximum power consumption and 0.5W standby consumption reduce operational costs
• Built-in Audio: Dual 2W speakers with audio input support enable integrated multimedia monitoring

Technical Highlights

The DS-D5024FC features 8-bit color depth with 72% NTSC color gamut for accurate color reproduction. The ultra-narrow bezels (1.9 mm on sides and top, 23.55 mm bottom) minimize visual interruption in multi-monitor setups, while the robust plastic casing and VESA 75 × 75 mm mounting compatibility provide flexible installation options. Weighing only 3.6 kg, this monitor integrates seamlessly into existing surveillance infrastructure without requiring heavy-duty mounting equipment.

Applications

Ideal for security operations centers, retail surveillance networks, corporate monitoring systems, and industrial facilities requiring reliable, round-the-clock display performance. The combination of Full HD clarity, wide viewing angles, and low power consumption makes it particularly suited for multi-screen command centers where space efficiency and operational cost management are priorities.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-D5024FC occupies a practical position in professional surveillance displays. Its 23.8-inch form factor balances screen real estate with desk footprint efficiency—a critical consideration in cramped control room environments. The 178° viewing angles eliminate the angle-dependent brightness loss typical of budget monitors, important when multiple operators view the same screen.

The 6.5ms response time adequately handles standard surveillance frame rates without ghosting artifacts. Power efficiency is noteworthy: at 25W maximum consumption, a 24-hour operation cycle consumes approximately 0.6 kWh daily, a meaningful consideration in energy-conscious deployments. The HDMI 1.4 + VGA/CVBS input trio provides backward compatibility while supporting modern IP surveillance systems.

However, note this is a passive display with no integrated analytics or recording capability—it functions purely as a high-fidelity output device.
