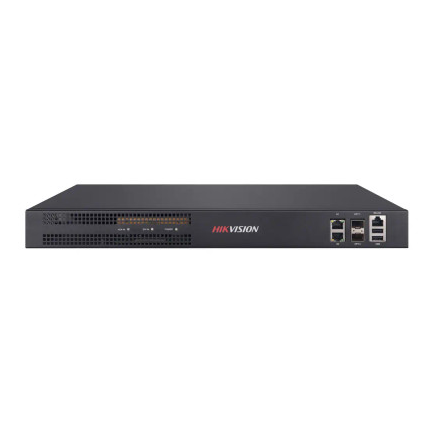

Hikvision DS-6908UDI 8-Channel 4K Video Decoder
The Hikvision DS-6908UDI is a professional-grade video decoder engineered for large-scale IP surveillance systems requiring high-performance multi-channel decoding. This robust device decodes up to 64 channels of compressed video streams, supporting resolutions from 1080p to 4K, making it ideal for command centers, monitoring stations, and enterprise security deployments. With dual network interfaces including RJ45 and fiber optic connectivity, the DS-6908UDI integrates seamlessly into complex network architectures while maintaining reliability in demanding environments.
Key Features
- 64-channel decoding capability with flexible resolution support
- 4K output via HDMI (3840 × 2160@30 Hz) for ultra-high-definition monitoring
- 8 HDMI and 4 BNC outputs for multi-display configurations
- H.264 compression support for efficient bandwidth utilization
- Dual RJ45 Gigabit network interfaces plus dual fiber optic connections
- Multiple split-screen layouts: 1/4/6/8/9/12/16/25/36 configurations
- 8 independent alarm input/output channels for integrated security workflows
- Dual-channel audio input/output (3.5 mm) and 8-channel audio output via DB15
- PoE power supply with low power consumption (≤70W)
- Wide operating temperature range: -10°C to 55°C
Technical Specifications
Decoding Performance: Supports up to 24MP@30fps (3 channels), 12MP@20fps (8 channels), 8MP@30fps (16 channels), 5MP@30fps (24 channels), 3MP@30fps (40 channels), and 1080p@30fps (64 channels). Frame rate capability reaches 60fps, ensuring smooth real-time video playback across all connected sources.
Connectivity & Networking: Features 2 RJ45 Gigabit interfaces (10/100/1000 Mbps) and 2 fiber optic interfaces (100 Base-FX/1000 Base-X) in combo configuration for redundancy and extended network reach. Serial interfaces include RS-232 and RS-485 for device control and integration.
Output Options: 8 HDMI ports support resolutions up to 4K, with 4 BNC outputs for analog display compatibility. VGA and DVI-I inputs accommodate legacy equipment at up to 1080p@50/60Hz.
Physical Specifications: Compact 1U form factor (440 × 320.8 × 44.5 mm) weighing ≤5.20 kg, suitable for standard rack installations. Universal power input (100-240 VAC) with minimal power draw supports efficient operation in 24/7 surveillance environments.
Applications
- Large-scale surveillance command centers and NOCs
- Enterprise security monitoring stations
- Multi-site video aggregation systems
- Transportation and infrastructure monitoring hubs
- Retail and hospitality security operations
- Government and critical infrastructure facilities
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-6908UDI addresses a critical market need for high-capacity, network-efficient video decoding in large surveillance deployments. Its 64-channel decoding capability, combined with fiber optic connectivity options, positions it as a premium solution for organizations managing hundreds of camera feeds. The flexible decoding profiles allow operators to prioritize bandwidth for critical channels while maintaining broad coverage—a practical approach for resource-constrained networks.
Dual network interfaces with gigabit and fiber options provide both redundancy and future-proofing for bandwidth-intensive environments. The extensive output options (8 HDMI + 4 BNC) enable sophisticated multi-display wall configurations essential for professional monitoring stations. Power consumption below 70W reflects efficient engineering, reducing operational costs in 24/7 facilities.
The wide temperature tolerance and PoE support enhance deployment flexibility in both controlled data centers and industrial settings.
