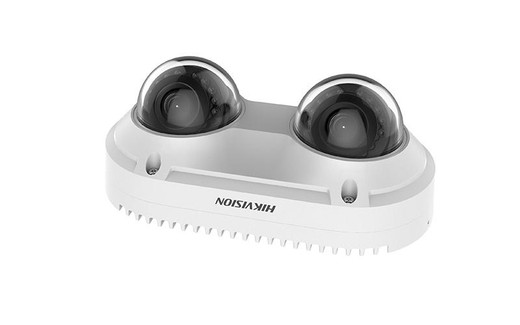

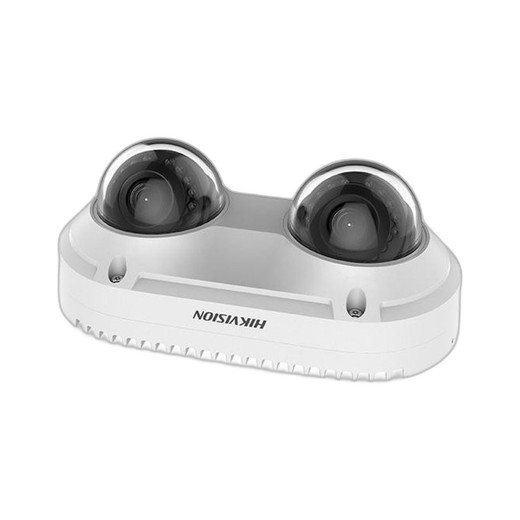

Hikvision DS-2CD6D52G0-IHS-6mm 10MP Dual-Lens IP Camera

Hikvision DS-2CD6D52G0-IHS-6mm 10MP Dual-Lens Multi-Sensor Outdoor PanoVu IP Camera

The Hikvision DS-2CD6D52G0-IHS-6mm is a professional-grade dual-lens, multi-sensor IP camera designed for wide-area surveillance in demanding outdoor environments. Combining two independent 5MP sensors with synchronized 6mm lenses, this camera delivers 10MP total resolution with exceptional detail clarity and minimal blind spots. Its innovative dual-directional architecture enables flexible mounting configurations, making it ideal for perimeter security, large open areas, and panoramic monitoring applications where comprehensive coverage is critical.

Key Features

• Dual 5MP sensors with synchronized operation for seamless panoramic coverage
• 10MP aggregate resolution (2560 × 1920 per sensor) with 30fps main stream performance
• 6mm fixed lens offering 49° horizontal FOV and 128m detection range (DORI)
• Advanced H.265+/H.265/H.264+/H.264 compression for efficient storage and bandwidth
• Intelligent IR illumination with 850nm wavelength and 10m effective range
• 120dB wide dynamic range (WDR) with BLC, HLC, and defog image enhancement
• IP67-rated weatherproof enclosure with IK10 impact resistance
• PoE powered with integrated heater for reliable operation in extreme temperatures (-40°C to 60°C)
• Smart detection: motion detection, line crossing, intrusion, region entrance/exit, unattended baggage, and object removal
• Onboard microSD card slot supporting up to 256GB local storage

Technical Specifications

• Imaging: 1/2.7" Progressive Scan CMOS sensors; F1.6 aperture; 0.0018 Lux minimum illumination (B/W with AGC)
• Video Processing: Multiple compression formats with configurable bit rates (32 Kbps–16 Mbps); Region of Interest (ROI) support for 4 fixed regions per stream
• Audio: Stereo dual built-in microphones with G.711/G.722.1/G.726/MP2L2/PCM compression; environmental noise filtering
• Network: Gigabit RJ45 Ethernet; comprehensive protocol support (TCP/IP, HTTPS, RTSP, ONVIF, ISAPI); up to 20 simultaneous live view channels
• Security: HTTPS encryption, 802.1X authentication, watermarking, IP filtering, and user-level access control (32 users supported)
• Connectivity: 12VDC or PoE (802.3af, max 11W); RS-485 and alarm I/O on -S variant
• Dimensions: 164.3 × 84.6 × 67.4 mm; 770g weight

Applications

This multi-sensor camera excels in large-scale surveillance scenarios including parking structures, transportation hubs, airport terminals, perimeter fencing, industrial facilities, and open public spaces. Its dual-lens design and panoramic output make it particularly effective for situations where traditional single-camera installations create coverage gaps or require wider fields of view.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-2CD6D52G0-IHS-6mm represents an advanced approach to panoramic surveillance by leveraging dual independent sensors rather than mechanical pan-tilt mechanisms. This architecture delivers several operational advantages: synchronous image capture eliminates temporal artifacts in stitched imagery, the fixed 6mm lens provides superior optical performance and minimal maintenance, and simultaneous operation on both sensors ensures no coverage loss during pan/tilt repositioning. The 128m detection range at 6mm focal length qualifies this camera for perimeter applications where distant object recognition is essential.

H.265+ compression is particularly valuable for dual-sensor deployments, reducing storage overhead by 50% compared to H.264 while maintaining forensic-grade clarity. The 120dB WDR combined with smart IR supplementation ensures consistent image quality across challenging transitions—critical for outdoor installations subject to direct sunlight and shadow interference. Integration support via ONVIF and ISAPI simplifies deployment within heterogeneous network environments.

The -S variant's RS-485 interface enables integration with external sensors and control systems, expanding functionality beyond standalone surveillance.
