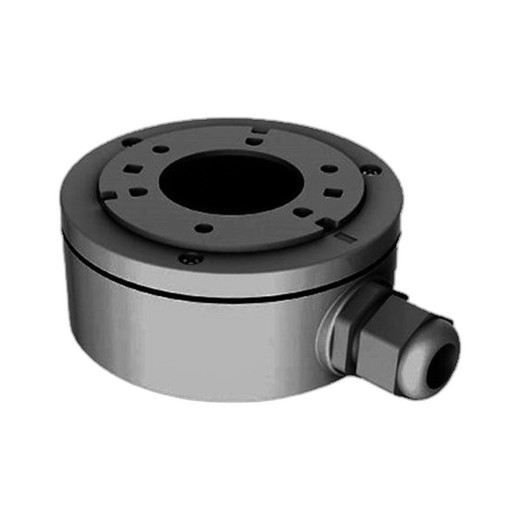

Hikvision CBXSB Conduit Base, Black
The Hikvision CBXSB is an aluminum-alloy mounting accessory engineered to support fixed camera installations where organized cable routing and stable equipment positioning are essential. This conduit base handles the mechanical and cable-management demands of multi-camera surveillance arrays, outdoor deployments, and retrofits where professional appearance and durability matter.
What This Accessory Does
A conduit base serves as the anchor point between your camera and the mounting surface—typically wall, pole, or ceiling. The CBXSB stabilizes the camera body and provides organized routing paths for power and network cables through or alongside conduit, preventing loose wiring, cable strain, and the maintenance headaches that follow. Its aluminum construction resists corrosion in both indoor and outdoor environments, which directly extends your installation's service life and reduces unplanned downtime. The black finish blends into most architectural backgrounds, avoiding the visual clutter of bare silver brackets.
Key Specifications & Deployment Benefits
- Material: Aluminum Alloy — resists rust and salt-air degradation, critical for rooftop, coastal, or high-humidity installations. Aluminum also dissipates heat better than plastic, a factor if your cameras run in direct sun or enclosed housings.
- Load Capacity: 9.9 lbs (4.5 kg) — sufficient for compact dome cameras, fixed-lens turrets, and lightweight bullet models. If you're mounting larger PTZ units or multi-sensor heads, verify individual camera weight against this limit; exceed it and the base will not provide secure support.
- Bracket Hole Design — optimized for conduit passage and cable ties, allowing you to bundle and organize Ethernet, power, and coax runs without pinching or kinking. This reduces signal degradation and simplifies future troubleshooting.
- Professional Black Finish — discrete aesthetics matter in retail, government, and corporate environments. Black hardware is less conspicuous than silver and photographs better on light-colored surfaces.
- Product Weight: 0.64 lbs — lightweight enough to install on lightweight drywall anchors or masonry fasteners without needing heavy structural reinforcement, lowering installation cost and timeline.
Compatibility & Integration
The CBXSB is engineered to work with a range of Hikvision surveillance cameras and standard mounting configurations. Before purchase, confirm that your camera model's mounting footprint and weight fall within the accessory's support envelope. If you are building a larger IP camera deployment, the conduit base pairs naturally with PoE-injected networks and centralized NVR systems, where organized cabling reduces service calls and improves system uptime.
When to Choose This Accessory
Select the CBXSB if your installation requires professional cable management, outdoor durability, and discrete appearance. Skip it if your deployment uses wall-mounted cameras with integrated cable passages or if you need support for cameras heavier than 4.5 kg—in that case, source a bracket rated for higher loads.
Frequently Asked Questions
Q: What is a conduit base, and why do I need one?
A: A conduit base stabilizes a camera and organizes cables through a structured routing path. It prevents cable strain, protects cables from physical damage, and improves the overall appearance of professional installations. If your application involves running cables in open conduit or along poles, a conduit base is standard practice.
Q: Can the CBXSB support my PTZ camera?
A: Only if your PTZ weighs 4.5 kg or less. Check the camera's net weight in its datasheet. Larger PTZ units exceed this load capacity and require a heavier-duty bracket.
Q: Is the CBXSB suitable for outdoor use?
A: Yes. Aluminum alloy resists corrosion in outdoor environments. However, the base itself has no weatherproofing rating (IP rating). Ensure your power connections and cable management meet local electrical codes for wet locations.
Q: Will the CBXSB work with non-Hikvision cameras?
A: The base is engineered for Hikvision models, but compatibility depends on mounting hole patterns and footprint sizes. Verify physical dimensions against your camera's mounting bracket before ordering.
Q: How do I install the CBXSB?
A: Mount the base to your chosen surface using appropriate fasteners (wall anchors, bolts, or screws—not included). Secure your camera to the base's mounting footprint, then route cables through the bracket holes. Refer to your camera's installation guide for specific torque specifications.
Q: Does the CBXSB come with fasteners or mounting hardware?
A: No. The accessory includes only the base itself. You will need to source fasteners appropriate to your mounting surface (drywall anchors, masonry bolts, stainless steel screws, etc.).
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CBXSB is a straightforward but essential accessory if you're building a professional surveillance system where cable discipline and visual discretion matter. At 0.64 lbs and constructed from corrosion-resistant aluminum, this conduit base does one job well: it anchors a camera securely while keeping cables organized and out of sight. The 4.5 kg (9.9 lb) load capacity covers the majority of compact fixed-lens and dome cameras, but it's a hard limit—exceed it and you'll see sag and instability over time.
Technical Highlights:
- Aluminum Alloy Construction: Resists oxidation and salt-air corrosion in outdoor and humid environments, extending hardware life by years compared to uncoated steel or plastic bases. This matters on rooftops and coastal installations where you cannot afford routine bracket replacement.
- 4.5 kg Load Capacity: Suitable for compact domes, fixed turrets, and lightweight bullets; insufficient for most PTZ or multi-sensor heads. Check your camera datasheet weight before committing.
- Optimized Cable Routing: Bracket hole design allows organized passage of Ethernet, 12VDC power, and coax without pinching, which preserves signal integrity and simplifies future troubleshooting and moves.
Deployment Considerations:
- Surface Fasteners Not Included: You must source wall anchors, stainless steel bolts, or masonry fasteners appropriate to your mounting substrate. Plan fastener procurement as part of your project BOM.
- Mounting Footprint Verification: While the CBXSB is marketed as compatible with Hikvision camera models, mounting hole spacing and dimensions vary across the Hikvision line. Measure your camera's mounting bracket against the base before ordering to avoid on-site surprises.
- No Weather Sealing on the Base Itself: The aluminum is corrosion-resistant but not sealed. In high-moisture or submerged applications, ensure all fastener connections and cable entries comply with local electrical codes and IP requirements for wet locations.
Deploy the CBXSB in fixed-mount surveillance arrays where organized cabling, outdoor durability, and professional aesthetics are non-negotiable—retail chains with multiple cameras per location, government facilities with strict appearance standards, and outdoor parking structures are ideal candidates. It's not a universal bracket; it's a purpose-built cable-management accessory for mid-sized camera deployments.
