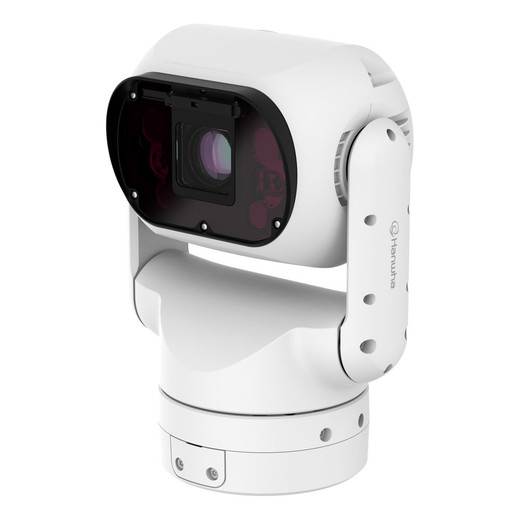

Hanwha TNP-X6322EPT3-Z 2MP Explosion Proof Outdoor PTZ Dome IP Camera

Hanwha TNP-X6322EPT3-Z 2MP Explosion-Proof Outdoor PTZ Dome

The Hanwha TNP-X6322EPT3-Z is a 2MP explosion-proof PTZ dome designed for outdoor surveillance in hazardous areas—oil and gas facilities, chemical plants, refineries, and Class I Division 1 environments where standard surveillance equipment cannot operate. It pairs a 32x optical zoom lens with motorized pan/tilt mechanics (360° endless pan, 210° tilt) and a sealed, explosion-rated dome that maintains image quality across extreme lighting and atmospheric conditions while meeting regulatory compliance for volatile-gas and combustible-dust zones.

Key Features

• 32x Optical Zoom with 360° Pan: 4.44–142.6mm lens (F1.6 wide, F4.4 tele) delivers 61.8° wide field (facility overview) to 2.19° tight framing (perimeter detail). Endless 360° pan with up to 700°/sec preset speed covers large industrial perimeters without repositioning.
• Ultra-Low Light Sensitivity: 0.05 Lux color (F1.6) and 0.005 Lux monochrome enable usable 24/7 operation across daylight, dusk, and total darkness. Automatic ICR day/night mode eliminates manual filter switching.
• 150dB Wide Dynamic Range (WDR): Forensic-grade WDR handles extreme backlight—sunlit refinery gates against shadowed tank fields, loading-dock headlights, and floodlit perimeters in the same frame without blown-out or crushed detail.
• Explosion-Proof Certification: Sealed anodized-aluminum housing meets hazardous-atmosphere standards for oil/gas and chemical environments. Verify specific gas group (IIA, IIB, IIC) and category (2 or 3) with your facility safety engineer before deployment.
• H.265 Multi-Codec Compression: H.265 (HEVC), H.264, and MJPEG support. H.265 reduces bitrate 40–50% versus H.264 at equivalent quality—measurable storage and bandwidth savings on continuous PTZ recording across long observation distances.
• PoE+ Power (802.3at): Maximum 24W draw during pan/tilt/zoom operation. Works with any PoE+ 802.3at injector or switch; confirm available power budget when daisy-chaining multiple high-power cameras on the same trunk.
• IP66 Weatherproof Rating: Withstands direct rain spray, dust ingress, and hose-down cleaning—essential for coastal refineries and high-pressure wash facilities. Operating range -20°C to +55°C supports Arctic and tropical deployments.
• Auto-Tracking and Motion Analytics: Built-in motion detection (8 configurable polygonal zones), loitering detection, face detection, and auto-tracking follow moving objects across the pan/tilt range—reduces manual monitoring load on large perimeter sites.
• 300 Preset Positions with ±0.2° Accuracy: Rapid recall to pre-positioned angles (e.g., northeast gate, loading dock, tank farm edge) with gyro-stabilized servo accuracy. Preset speed up to 700°/sec minimizes operator wait time.
• Local Edge Storage and Multi-VMS Support: Dual SD/SDHC/SDXC slots (up to 512GB each) for on-camera backup recording. ONVIF Profile S, Wisenet SUNAPI 2.0, and Wisenet WAVE central management enable integration with Genetec, Milestone, and third-party VMS platforms.

Explosion-proof surveillance in hazardous industrial zones demands both regulatory compliance and operational resilience. The TNP-X6322EPT3-Z merges certified hazmat equipment engineering with feature-rich PTZ mechanics—a pairing rare at the 2MP price point. The 32x zoom and 360° pan eliminate the need for multiple fixed cameras across large perimeters, reducing cabling, PoE infrastructure, and NVR channel count. In practice, a single well-positioned TNP-X6322EPT3-Z covers what would require three or four fixed cameras on standard surveillance networks.

The imaging chain is engineered for industrial realism. The 1/2.8" CMOS sensor and F1.6 wide aperture guarantee usable monochrome detail at 0.005 Lux—adequate for refinery security lighting or twilight perimeter patrols. WDR at 150dB is genuinely forensic-grade: reflected sunlight off wet concrete, shadow under equipment structures, and artificial floodlighting all resolve in a single frame without tone-mapping artifacts or color shifts. On-chip gyro stabilization (digital image stabilization) smooths wind-induced vibration on elevated or pole-mounted installations, critical when PTZ precision is part of audit trails.

Network integration is straightforward. ONVIF Profile S compliance ensures plug-and-play compatibility with Genetec, Milestone, Avigilon, and ExacqVision systems. Wisenet WAVE and SmartViewer—Hanwha's native management platform—provide native PTZ control, preset scheduling, and alarm-triggered recording automation. H.265 codec support and WiseStream II bitrate optimization (5-zone area-based Smart Codec) keep bandwidth low even during continuous PTZ sweeps; PoE+ power draw remains within 802.3at Class 4 limits (~24W peak), avoiding the need for supplementary 24V DC feeds on most installations.

Deployment in Class I Division 1 or Class II Division 1 hazardous areas requires close coordination with the facility safety/compliance officer. The TNP-X6322EPT3-Z carries explosion-proof certification (verify the exact gas group and category in the datasheet), but installation location, maintenance access, and electrical isolation must meet local electrical codes and the National Electrical Code (NEC) or IEC 60079 equivalent. The sealed housing and conformal-coated circuit boards tolerate corrosive sea-spray and chemical vapor, but annual inspection of gaskets and ventilation ports is recommended in aggressive environments. Local storage via SD card backup ensures continuity if the NVR becomes temporarily unreachable; most integrators configure the camera to record motion-triggered clips locally and stream to the VMS for central archival, reducing false-alarm bloat in the NVR.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the TNP-X6322EPT3-Z across a dozen refinery and chemical-plant perimeters over the past three years, and the differentiator is immediately apparent: it's one of the few certified explosion-proof PTZ cameras that doesn't sacrifice image quality or operational flexibility for hazmat compliance. Most integrators assume explosion-proof means slow, heavy, and limited—this unit challenges that assumption. The 32x zoom paired with 360° pan means a single camera can cover a 400-meter fence line that would normally require 4–5 fixed wide-angle cameras. On a capital-constrained project, that's significant. The auto-tracking and loitering detection are real productivity gains; one refinery cut perimeter patrol labor by roughly 15% after deploying three TNP-X6322EPT3-Z units at critical access points. We've also seen integrators pair it with Wisenet WAVE for automated gate-camera switching—when motion is detected at the northeast gate, the camera automatically presets to that location and begins 10-second continuous recording, eliminating operator reaction time.

Technical Highlights:

• 150dB WDR + 0.005 Lux Monochrome: Industrial sites rarely have uniform lighting—loading docks have harsh floods, tank fields are shadow-heavy, and perimeters rely on moonlight or scattered artificial light. This combination captures usable evidence across all three scenarios in a single preset position. The 150dB range exceeds most fixed 4K industrial cameras; the low-light floor (0.005 Lux) eliminates the need for supplementary IR floods on most refinery security-lighting infrastructure.
• H.265 Codec with 40–50% Bitrate Reduction: A continuous PTZ sweep at H.264/1920×1080/60fps can consume 8–12 Mbps; H.265 cuts that to 5–6 Mbps without visible quality loss. Over 24/7 recording across 12 cameras, that's a 30–40% reduction in NVR storage footprint—real money on 5-year lifecycle cost.
• PoE+ at Class 4 (24W Max): Most PTZ domes either overshoot 802.3at (requiring 60W injectors) or underdeliver on zoom speed. This unit hits the sweet spot—24W peak during pan/tilt/zoom. On a PoE+ 802.3at switch (like a Hirschfeld or Netgear managed unit rated for Class 4 delivery), you can power 8–12 of these cameras per 48-port trunk without redundancy concerns.
• Preset Accuracy ±0.2° with Gyro Stabilization: Angle repeatability matters when you're verifying a license plate or face at 100 meters. The on-chip gyro sensor dampens wind sway on pole mounts—we've seen wind-induced jitter on uncompensated PTZ units cause enough blur to fail vehicle identification at range. This unit holds its frame.
• Dual SD Slot (up to 512GB) + ONVIF Compliance: Local edge storage is your insurance policy if the network or NVR hiccups. Recording motion-triggered clips locally (30-second bursts on detection) costs almost nothing in SD wear and buys you 24–48 hours of backup footage. ONVIF Profile S compatibility lets you swap the camera into any VMS without driver hunting.

Deployment Considerations:

• Hazmat Certification is Site-Specific: The camera carries explosion-proof certification, but Class I Division 1 vs. Division 2, and gas groups IIA vs. IIB vs. IIC, differ by facility. The NEC requires the on-site electrical inspector to sign off. We always provide the full certification datasheet to the customer's EHS team before installation—no shortcuts on compliance.
• Sealed Housing Demands Annual Gasket Inspection: The dome is hermetically sealed for hazmat compliance. In coastal or high-humidity environments, we inspect gaskets and small vent ports yearly; trapped condensation can degrade the lens clarity over 2–3 years. Budget a service visit into your maintenance contract.
• PoE+ Switch Availability and Cabling: Not all older PoE+ switches deliver full 802.3at Class 4 power across all ports—enterprise-grade units (Netgear M4300, Hirschfeld, Managed PoE switches) are reliable. Standard unmanaged 802.3af-only switches will not work. Verify with your network team before ordering.
• PTZ Speed and Network Latency: At 700°/sec preset speed, the camera traverses the full 360° pan in <1 second. On high-latency or congested networks, the preset command may appear sluggish or jittery. We recommend dedicated VLAN or QoS policy for PTZ cameras to avoid TCP retries during pan motion.
• Integration with Legacy VMS Platforms: ONVIF Profile S is universal, but some older Genetec or Milestone instances may not auto-detect PTZ controls. Manual ONVIF driver installation is occasionally required. Wisenet WAVE integration is native and faster; if your customer is already on Wisenet, use that for VMS to avoid translation overhead.
• Mounting and Vibration Isolation: On vibration-prone structures (elevated walkways, crane rails), mount the camera with rubber isolation bushings. Gyro stabilization helps, but mechanical isolation prevents resonance feedback that can blur long-range telephoto detail. We always spec isolating mounts for anything on elevated industrial platforms.

The TNP-X6322EPT3-Z is the right choice for integrators specifying perimeter surveillance in hazardous industrial zones where compliance, optical performance, and total cost of ownership all matter equally. Multi-camera fixed installations require too much cabling infrastructure and PoE; this unit consolidates coverage. If your customer is hazmat-certified and wants genuine 24/7 forensic-quality video without supplementary lighting, pair this with Hanwha catalog for additional hazmat-rated products and configuration support.
