Hanwha TNO-4030T Thermal Bullet Camera 640x480

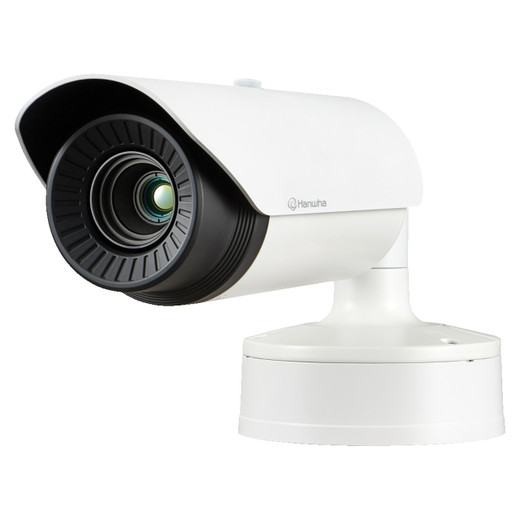

Hanwha TNO-4030T Long-Range Thermal Bullet Camera

The Hanwha TNO-4030T is a premium 640x480 thermal imaging bullet camera designed for mission-critical security applications. Engineered for perimeter security, critical infrastructure monitoring, and long-range surveillance, this camera delivers reliable threat detection in any lighting condition—from complete darkness to fog, smoke, and severe weather. Its uncooled micro bolometer thermal sensor provides exceptional sensitivity (NETD <50mK) and consistent performance across demanding operational environments.

Key Features

• 640x480 high-resolution thermal imaging with 17µm pixel size
• Uncooled micro bolometer thermal sensor for superior sensitivity
• 13mm fixed focal length with F1.0 aperture and 48.6° horizontal field of view
• H.265/H.264 and MJPEG video compression at 30fps
• Advanced analytics including directional detection, motion detection, loitering, virtual line crossing, temperature detection, and audio detection
• 8-zone motion detection with 8-point polygonal regions and 32 privacy mask zones
• IP66 and IK10 rated construction for harsh outdoor environments
• PoE powered (IEEE 802.3af) with low power consumption (8.6W typical)
• Multiple color palettes: Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, and Wisenet
• Built-in digital image stabilization with gyro sensor
• Supports up to 10 concurrent streaming profiles with unicast and multicast
• 256GB microSD/SDHC/SDXC edge storage capability
• 1024MB RAM and 256MB Flash memory

Technical Specifications

• Thermal Sensor: Uncooled micro bolometer, 640x480 resolution, 17µm pixel size, NETD <50mK
• Optics: 13mm fixed focal length, F1.0 aperture, 48.6° H / 36.4° V / 61.6° D field of view, 5m minimum object distance
• Video Compression: H.265/H.264 Main/Baseline/High profile, MJPEG; Up to 30fps at 60Hz
• Connectivity: RJ-45 10/100BASE-T Ethernet, ONVIF Profile S/G/T compliant
• Power: PoE (802.3af Class3), 24VAC, or 12VDC; Max 10W PoE, typical 8.6W
• Operating Temperature: -40°C to +60°C (-40°F to +140°F) at ≤90% RH
• Certifications: IP66, IK10, NEMA4X
• Dimensions/Weight: Φ101.97 × 401.8mm / 3124g (6.89 lbs)
• Audio: Selectable microphone or line-in input; line-out with G.711 and G.726 compression options
• Alarm I/O: 1 input, 2 outputs with event-based triggers and FTP/email notification

Applications

The TNO-4030T is ideal for 24/7 perimeter monitoring, border security, critical infrastructure protection, industrial facility surveillance, and areas where conventional visible-light cameras are insufficient. Its thermal capability ensures detection and identification regardless of lighting conditions, making it essential for high-security installations.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-4030T represents a mature thermal surveillance solution for organizations requiring robust, weather-independent monitoring. The 640x480 thermal resolution with sub-50mK sensitivity provides adequate detail for perimeter scanning and initial threat classification at extended ranges. The integration of intelligent analytics—particularly directional detection, loitering, and virtual line crossing—enables proactive threat identification without excessive false alarms.

PoE power delivery simplifies deployment in remote locations, while H.265 codec support optimizes bandwidth for network transmission. The IP66/IK10 rating and extended operating temperature range (-40°C to +60°C) ensure reliability in harsh climates. Edge storage via microSD support mitigates network dependency, a critical feature for mission-critical applications.

For organizations standardizing on Wisenet platforms, ONVIF compliance and Wisenet open platform support ensure integration flexibility with existing security ecosystems.
