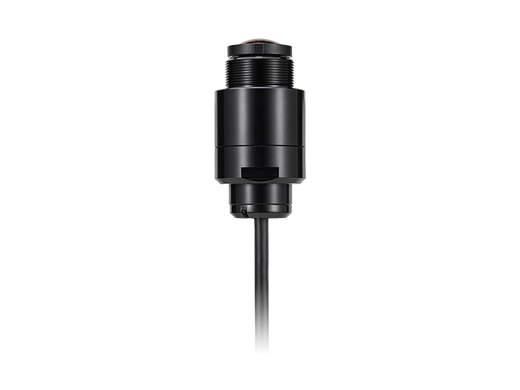

Hanwha SLA-T1080F 2MP Fisheye Lens Module

Hanwha SLA-T1080F 2MP Fisheye Lens Module

The Hanwha SLA-T1080F is a premium 2MP fisheye lens module designed for enterprises requiring expansive situational awareness in a single frame. Built for seamless integration with Hanwha's XNB-6001 camera platform, this module delivers ultra-wide coverage with exceptional low-light performance and advanced imaging technology—making it ideal for large-area surveillance in retail, industrial, and critical infrastructure applications.

Key Features

• Ultra-Wide 187° Field of View: 1.6mm fisheye lens captures panoramic coverage, eliminating blind spots across large indoor and outdoor spaces
• 2MP Resolution at 60fps: Sharp, fluid surveillance footage supports real-time monitoring and detailed forensic review
• Exceptional Low-Light Sensitivity: 0.03 Lux capability ensures visibility in near-darkness, critical for 24/7 facility protection
• 120dB Wide Dynamic Range: Advanced WDR technology handles extreme lighting contrasts, preserving detail in both shadows and highlights
• Extended 8-Meter Cable: Reduces installation complexity and provides flexible mounting options within the specified cable length
• Straight Body Design: Streamlined form factor simplifies integration and reduces installation time

Technical Specifications

• Resolution: 2MP @ 60fps
• Lens Type: 1.6mm Fisheye
• Horizontal Field of View: 187°
• Low-Light Sensitivity: 0.03 Lux
• Wide Dynamic Range: 120dB
• Cable Length: 8 meters
• Form Factor: Straight body style
• Compatible Platform: XNB-6001

Ideal Applications

• Large retail environments and shopping centers requiring panoramic floor coverage
• Warehouse and logistics facilities needing expansive area monitoring
• Industrial plants and manufacturing floors with critical operational zones
• Transportation hubs, parking structures, and perimeter surveillance
• Low-light environments such as parking garages and nighttime outdoor areas

James Everett

The SLA-T1080F is engineered for enterprises seeking maximum coverage efficiency. The 187° horizontal field of view is a standout feature—it dramatically reduces the number of cameras required to cover large areas, lowering infrastructure and maintenance costs. The 1.6mm focal length is aggressive by design; paired with 60fps output, it ensures smooth motion tracking and real-time situational awareness without lag.

The 0.03 Lux sensitivity is exceptionally strong for a 2MP module, enabling reliable surveillance in conditions where most cameras struggle. Combined with 120dB WDR, the module handles mixed lighting scenarios—think facility entrances with bright daylight and dark interior corridors—without loss of forensic quality.

Integration with the XNB-6001 ensures codec efficiency, network bandwidth optimization, and centralized management. The 8-meter cable provides substantial flexibility for rooftop or elevated mounting without additional infrastructure. Straight body design minimizes installation complexity compared to dome or PTZ alternatives, reducing both labor costs and operational risk.

Best-fit deployments: large confined spaces (warehouses, atriums, production floors) where ultra-wide coverage and low-light resilience are non-negotiable.
