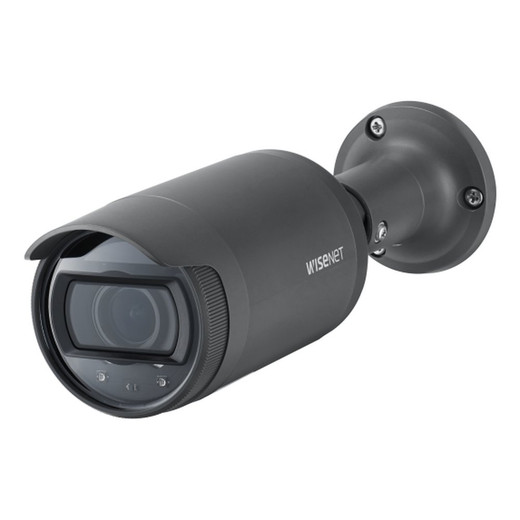

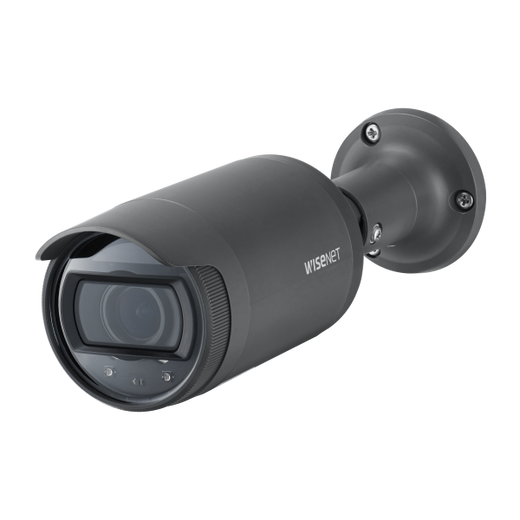

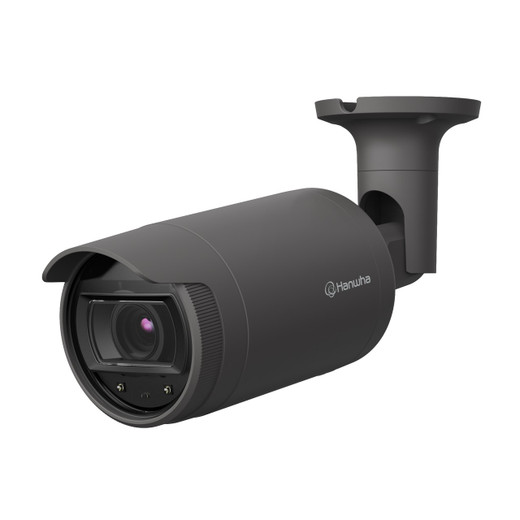

Hanwha LNO-6072R 2MP Varifocal IR Bullet Camera

Hanwha LNO-6072R 2MP Varifocal IR Bullet Camera

The LNO-6072R is a fixed-installation outdoor bullet designed for 24/7 perimeter and facility surveillance where you need reliable night vision and flexible focal length control without premium pricing. It delivers Full HD 1080p resolution at 30 fps using a 2MP CMOS sensor, paired with a 3.2–10mm manual varifocal lens that gives you a 3.1x zoom range—from 109° wide-angle coverage down to 33° for closer identification work. This flexibility matters on deployment day when you realize your initial FOV estimate was off by a few degrees; manual varifocal lenses let you adjust without swapping hardware.

Key Features

• 2MP Full HD 1080p at 30fps: Solid resolution for outdoor identification tasks at typical mounting heights—sufficient for license-plate and facial capture within the 12.9m recognition range at full telephoto, though you'll want to verify distance-to-target on your actual site before final installation.
• 3.2–10mm varifocal lens with 3.1x zoom: Manual focus and zoom adjustment means no motorized complexity, fewer failure points, and no power draw for lens operation. Trade-off: you adjust it once during installation; dynamic framing requires a PTZ camera instead.
• 120dB Wide Dynamic Range (WDR): Paired with adaptive backlight compensation and noise reduction, this handles the classic outdoor problem—bright sky and dark shadows in the same frame. Real benefit: you avoid blown-out parking lot images where the sky is white and the ground is black. The 120dB number translates to detailed imagery in 12-stop contrast scenes, which covers most outdoor daylight scenarios.
• 850nm IR illumination with 30m range: Integrated LEDs provide night vision without external lighting. The 30m range covers most perimeter fence lines and parking areas. Beyond that distance, IR degradation becomes visible; if you need recognition-quality imagery beyond 40m, consider supplemental white-light illumination or a camera with a longer-range IR package.
• IP66 weather-sealed bullet housing: Direct rain and dust won't compromise the unit. You can hose it down during cleaning. However, IP66 doesn't mean you can submerge it; if the mounting location will collect standing water or sit partially underwater, you'll need IP67 instead.
• PoE power (IEEE 802.3af, 5W typical / 6.4W max): Powers directly from a standard PoE switch or injector. The 6.4W maximum draw is well below the 15.4W 802.3af limit, so this camera won't strain your switch's power budget even in a moderately sized deployment. You avoid dedicated 12V power supplies and associated cabling.
• H.264 and H.265 dual codec support with WiseStream II smart codec: H.265 reduces file size by roughly 50% compared to H.264 without visible quality loss—a material savings when storing 24/7 video across multiple cameras. Dual-stream recording lets you record high-resolution video locally while streaming lower-bitrate feeds to a remote VMS, optimizing both archival integrity and network bandwidth.
• Motion detection and tampering alerts: Four configurable rectangular detection zones and six privacy masking regions let you avoid false triggers from vehicle movement in unmonitored areas. Alerts integrate with email, FTP, and NAS logging for event-driven archiving.
• Micro SD/SDHC edge storage up to 32GB: Local recording buffer provides resilience against network outages. 32GB holds roughly 2–4 days of H.265 video depending on bitrate and scene complexity, enough for short-term offline playback if your NVR goes down.
• Operating temperature range -30°C to +55°C: Suitable for most temperate and subtropical climates. Cold-weather installations above 60° latitude or high-altitude deployments may push toward the lower limit; verify seasonal minimums on your site.

Integration and Compatibility

The LNO-6072R supports ONVIF Profile S/G/T and Hanwha's SUNAPI HTTP API, ensuring VMS platform integration with third-party systems like Milestone XProtect, Genetec, and others. Firmware encryption, 802.1X network authentication, HTTPS/SRTP secure communication, and Digest Authentication prevent unauthorized access and intercept attacks. This positions the camera for corporate deployments where IT security policies require strong encryption and network-layer controls.

What's in the Box

Refer to the product documentation or contact the manufacturer for exact package contents, as this information was not included in the available technical evidence.

Frequently Asked Questions

Q: What is the maximum recognition distance for the LNO-6072R?

A: At full telephoto (33° FOV), the LNO-6072R delivers facial and license-plate recognition at 12.9 meters. Beyond that distance, detail degrades. Verify this against your actual installation height and subject distance before final placement.

Q: Can I use the LNO-6072R indoors?

A: Technically yes, but it's engineered for outdoor use. The IP66 rating and outdoor temperature range suggest outdoor deployment. Indoor environments typically benefit from lower-power, non-weatherproofed bullets or dome cameras. Consider the Hanwha catalog for dedicated indoor variants if your requirement is mixed-environment.

Q: Is the varifocal lens motorized or manual?

A: The LNO-6072R uses a manual varifocal lens. You adjust focus and zoom during installation; there's no motorized refocus or remote zoom adjustment. This reduces complexity and power consumption but requires physical access for adjustment.

Q: What codec should I use—H.264 or H.265?

A: H.265 is the better choice for 24/7 recording if your VMS and NVR support it, as it cuts storage requirements roughly in half. Use H.264 only if your storage or VMS platform doesn't yet support H.265 decoding.

Q: Does the LNO-6072R work with PoE+ (802.3at)?

A: Yes. While the camera only requires 6.4W maximum, PoE+ switches are backward-compatible with 802.3af devices. You can use either standard PoE or PoE+; the camera draws what it needs.

Q: How much local storage does the microSD card provide?

A: The LNO-6072R supports microSD/SDHC cards up to 32GB. At typical H.265 bitrates, this provides 2–4 days of 24/7 buffering. For longer offline retention, deploy an NVR or network-attached storage system.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The LNO-6072R occupies a practical middle ground in the outdoor bullet segment. Its 120dB WDR engine is the standout feature—genuine performance in high-contrast outdoor scenes, not marketing spec-sheet math. The manual varifocal lens (3.2–10mm) covers most fixed-perimeter deployments, and the 30m IR range handles typical fence lines and parking areas where you'd mount at 10–15 feet height. The PoE power model (5W typical) and H.265 codec support mean infrastructure costs stay reasonable even across a 20-camera site.

Technical Highlights:

• 120dB WDR with adaptive backlight compensation: Eliminates the classic daylight problem—blown-out sky, underexposed ground. Real-world improvement over basic WDR cameras when dealing with parking lots, loading docks, or perimeter fencing with mixed lighting. Not a premium-tier forensic WDR, but sufficient for identification-grade imagery in outdoor daylight.
• H.265 codec (50% bandwidth reduction vs H.264): Meaningful on multi-camera deployments over standard gigabit networks. A 20-camera perimeter system recording 24/7 in H.265 instead of H.264 reduces NVR storage churn and network congestion without quality compromise. WiseStream II smart codec further adapts bitrate to scene complexity, not just resolution.
• Manual varifocal with 3.1x zoom (3.2–10mm): No motorized lens failure modes, no power draw for lens operation, lower cost than motorized. Adjustment is one-time during installation. Trade-off: you cannot reframe remotely; if your initial angle estimate is wrong, someone climbs the ladder.
• IP66 + PoE (6.4W max): Weather-sealed without premium pricing, and power draw doesn't stress a standard PoE switch. The combination makes this a low-infrastructure-burden camera for retrofit projects where adding new power runs is costly.

Deployment Considerations:

• Fixed lens angle means site survey is critical. Verify FOV and recognition distance on a mock-up before final purchase, especially if your perimeter has varying mounting heights.
• The 32GB microSD buffer is a safety net, not a substitute for connected storage. Plan NVR or NAS capacity; edge storage handles outages only, not long-term retention.
• Manual varifocal requires technician access; avoid mounting in difficult-to-reach locations where adjustment would mean equipment downtime or safety risk.
• The -30°C to +55°C operating range covers most temperate zones. For climates consistently below -30°C or above +55°C (e.g., high-altitude desert or arctic sites), verify seasonal extremes against your location.

Best suited for fixed-angle outdoor perimeter surveillance—parking lots, fence lines, loading docks, facility entry points—where varifocal flexibility and reliable night vision matter more than motorized zoom or premium low-light handling. Organizations deploying 15–40 outdoor cameras often find the LNO-6072R a cost-effective anchor for their outdoor IP camera strategy.

Key Specifications:
Field of View: H: 109°, V: 58°
Color: White
