Description

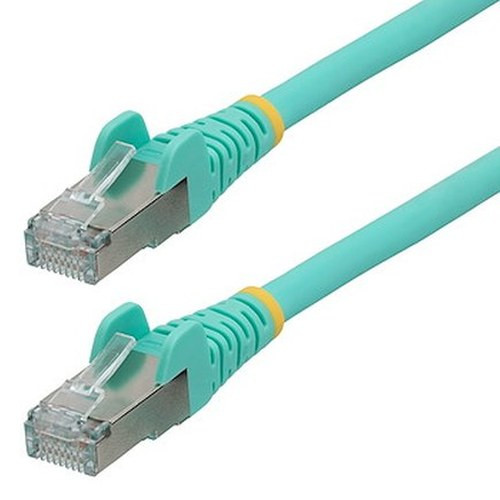

StarTech NLAQ-9F-CAT6A-PATCH 9ft Cat6a LSZH Ethernet Cable

Overview

This 9-foot Aqua StarTech NLAQ-9F-CAT6A-PATCH is a Low Smoke Zero Halogen (LSZH) rated Cat6a Ethernet cable designed for high-speed data transmission and reliable Power over Ethernet (PoE) delivery. Its LSZH jacket material minimizes smoke and toxic fumes in case of fire, making it suitable for environments with strict safety regulations, such as public buildings, data centers, and educational facilities. The 27 AWG stranded copper conductors ensure flexibility and durability, while the 500MHz frequency support is essential for 10 Gigabit Ethernet performance.

Compatibility

This cable is engineered to meet ANSI/TIA-568.2-D standards, ensuring compatibility with any standard RJ-45 networking equipment. It supports 10Gbps speeds, making it ideal for connecting high-bandwidth devices such as IP cameras, network switches, servers, and workstations. The 100W PoE++ (802.3bt) support means it can reliably power demanding devices like PTZ cameras or wireless access points without requiring a separate power adapter, simplifying installation and reducing cable clutter.

Installation Notes

The cable jacket is rated for Low Smoke Zero Halogen (LSZH) and operates within a temperature range of 0°C to 50°C (32°F to 122°F). The stranded copper conductor construction provides flexibility for routing in tight spaces. Connector plating is 50-micron gold for enhanced conductivity and corrosion resistance.

What's in the Box

  • 1x 9ft Cat6a LSZH Ethernet Cable - Aqua
Specifications
Cable Length: 9.0 ft [2.7 m]
Cable Jacket Material: Low Smoke Zero Halogen
Wire Gauge: 27 AWG
Conductor Type: Stranded Copper
Cable OD: 0.2 in [5.7 mm]
Connector Type: RJ-45
Cable Rating: CAT6a - 10Gbit/s
Frequency: 500MHz
PoE Support: 100W PoE++
Connector Plating: 50-micron gold-plated
Operating Temperature: 0C to 50C
Storage Temperature: -20C to 60C
Operating Humidity: 0% ~ 85% RH
Color: Aqua
Product Weight: 3.5 oz [99.5 g]
Standards Compliance: ANSI/TIA-568.2-D
Brand: StarTech
MPN: NLAQ-9F-CAT6A-PATCH
MPN: NLAQ-9F-CAT6A-PATCH
Type: Power Supply
Connectivity: Ethernet
Power: 100W
Q&A
Reviews
Have Questions?

StarTech 9FT CAT6A Ethernet Cable - Aqua - - NLAQ-9F-CAT6A-PATCH

$10.99
