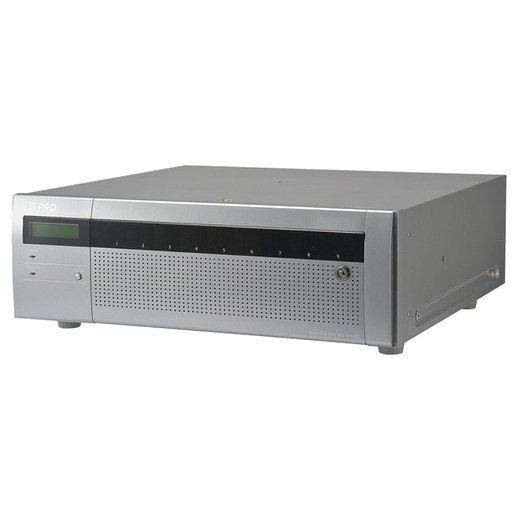

i-PRO WJ-HXE400P 9-Drive Expansion Unit
The i-PRO WJ-HXE400P is a dedicated 9-bay external expansion chassis designed for i-PRO WJ-NX series network video recorders. It adds raw storage capacity to a base NVR without requiring internal hardware changes or downtime for drive swaps — critical when your initial deployment footprint (4–8 camera channels) grows into a 16, 32, or multi-site rollout with heavy 24/7 recording. The unit ships without drives installed, allowing you to right-size storage to your actual retention policy, frame rate, codec choice, and scene complexity rather than absorbing the cost of pre-loaded, oversized configurations.
Key Features
- 9-Bay Drive Capacity: Supports 3.5" or 2.5" HDDs in any mix. Scales your i-PRO NVR storage without internal drive restructuring or recorder replacement.
- Drive-Empty Provisioning: Ships without drives. Select HDD type and capacity based on your retention math (bitrate × hours × redundancy), not pre-set bundle sizes.
- External Mounting Form Factor: Rack-mount or shelf-mount near your base NVR. Eliminates the need to open the recorder chassis or purchase a larger NVR model when capacity grows.
- Compatible with WJ-NX Series: Purpose-built for i-PRO's WJ-NX network video recorders. Verify your specific NVR model supports external expansion before procurement — not all NX variants include expansion-unit connectivity.
- Flexible Interconnect: Connection method (Ethernet or SATA passthrough) depends on your base NVR design. Consult your NVR manual for cabling and power requirements before installation.
- 24/7 Thermal Headroom: Nine simultaneous drive bays require dedicated cooling. Ensure adequate ventilation around the unit and confirm rack airflow paths do not bypass the expansion chassis.
When you deploy an i-PRO WJ-NX recorder into a site with 6 active camera streams and suspect the workload will double within 12–18 months, the WJ-HXE400P lets you add storage once rather than maintain a second NVR at a secondary location or over-provision the base unit from day one. This modular approach reduces capex drag in the growth phase and keeps your primary recorder's internal thermal load lower.
Drive selection is your responsibility — RAID configuration, HDD endurance rating (surveillance-class HDDs are preferred for 24/7 write-heavy workloads), and capacity depend on your scene complexity and retention window. A 2MP, 10 fps, H.265 stream requires roughly 0.15 Mbps; multiply by your active channels, multiply by seconds in your retention policy, divide by 8 to convert bits to bytes. The WJ-HXE400P provides the physical bay capacity; you provide the storage intelligence.
i-PRO includes basic RAID support (single, mirrored, or striped configurations) depending on your NVR firmware revision. Consult the WJ-NX recorder's management interface for RAID setup — expansion drives typically appear as additional logical volumes once the chassis is recognized by the base NVR. Firmware updates to the NVR may occasionally require a drive rescan or brief reconfiguration; document your RAID layout before updates.
For most commercial deployments (retail, parking, perimeter), the WJ-HXE400P is a straightforward storage multiplier that avoids the capital disruption of replacing a working NVR. Its value lies in operational flexibility — you buy storage when you need it, not when you buy the recorder. Pair it with i-PRO's management tools (CMS software or remote management API) for cross-site storage oversight if you're managing multiple recorder locations.
Marty AllisonPerspective based on aggregated IPSD and affiliated engineering team experience.
We've deployed the WJ-HXE400P across retail, warehouse, and municipal projects where the initial camera scope was smaller than the total site envelope. The unit solves a real problem: you can spec a lean 4-channel NVR at the start, leave the expansion chassis uninstalled or unpopulated in the equipment room, and then add drives and enable the expansion bays as coverage grows. We've seen this workflow cut project delays by 2–3 months when a client's final site survey reveals a higher-than-expected number of hard-to-cable areas. Instead of re-architecting to a larger NVR, you provision the expansion unit and move on. The downside is that not every WJ-NX model supports external expansion — we've had integrators order the WJ-HXE400P only to discover their NVR doesn't recognize it. Always confirm compatibility with i-PRO's pre-sales team or check the specific NVR's tech spec sheet before submitting your BOM.
Technical Highlights:
- Nine 3.5" or 2.5" Bays: Mixed-capacity drives are supported. A typical forensic deployment might pair six surveillance-class 8TB drives (48TB usable, accounting for RAID 6 parity) with three 4TB drives as hot spares or streaming overflow. The flexibility avoids lock-in to a single SKU.
- RAID Flexibility: Depending on firmware, you can configure RAID 0 (throughput, zero redundancy), RAID 1 (mirroring, 50% capacity loss, 24/7 safety), RAID 5 (striped parity, good balance for 6+ drives), or RAID 6 (dual parity, safer for large-capacity drives in 24/7 write scenarios). No RAID reconfiguration is transparent — plan your layout before first power-on.
- Thermal Dissipation at Scale: Nine drives running continuously generate 15–25W of heat depending on spindle speed and load. The expansion chassis must have clear airflow — do not enclose it in a cabinet without ducting. We recommend at least 12 inches of clearance on exhaust-side vents.
- Drive-Empty Shipping Model: No pre-loaded HDDs means lower logistics cost and zero risk of dead-on-arrival drives. You source drives locally and burn them in before adding them to the expansion bays. Best practice: test new drives in the recorder for 72 hours before moving to production recording.
Deployment Considerations:
- Compatibility Gating: The WJ-HXE400P is not a universal i-PRO product. It is designed for the WJ-NX series; older NV or newer models outside this family do not support external expansion. Contact i-PRO product support with your NVR's exact model number before purchasing.
- Interconnect Variability: The cabling standard (Ethernet vs. SATA) and power delivery method vary by NVR model. Some WJ-NX variants power the expansion unit via daisy-chain from the base recorder's PSU; others require a separate 24V or 48V power connection. Verify your specific NVR's manual and budget for the correct cabling before installation.
- Rack Mounting and Spacing: The expansion chassis requires dedicated shelf or rack real estate. Do not stack it directly on top of the NVR — heat will accumulate and degrade drive lifespan. Allow vertical spacing and ensure the equipment room's HVAC can handle the aggregate thermal load (base NVR + expansion unit = 40–60W in aggregate).
- Drive Sourcing and Warranty: i-PRO does not supply or warrant the HDDs. You source them independently and are responsible for compatibility testing. Surveillance-class drives (WD Purple, Seagate Barracuda Pro, Hikvision Turbo) are preferred over consumer-grade NAS drives for 24/7 duty cycles. Do not cheap out on drives; the cost delta (5–10%) is easily recouped in MTBF and reduced replacement labor.
- Firmware Updates and RAID Rescan: NVR firmware updates occasionally require the recorder to rescan the expansion bays and rebuild RAID metadata. Budget for 15–30 minutes of offline time per update cycle. Document your RAID configuration (drives per bay, capacity per drive, RAID level) in your maintenance log before the first update.
The WJ-HXE400P is for integrators and end-users who need modular, pay-as-you-grow storage scaling on proven i-PRO hardware. It's not a cost-reduction play — you'll spend less money upfront by not over-provisioning, but your total five-year cost is roughly the same as buying a larger NVR at day one. The real win is operational agility: you can start lean and scale without swapping out the recorder. If your client is on a tight capex budget but anticipates growth, this unit keeps the conversation open. For more on i-PRO's full NVR and storage ecosystem, see the i-PRO catalog.
