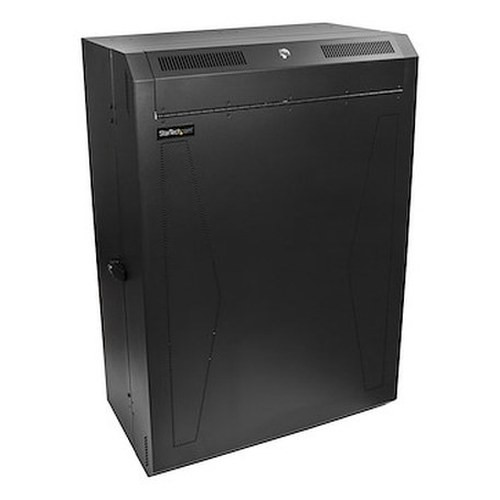

StarTech RK830WALVS 8U Vertical Wall Mount Server Rack Cabinet

Overview

The StarTech RK830WALVS is an 8U enclosed wall-mount rack cabinet designed to mount standard 19-inch equipment vertically on a wall — the right solution when floor space is limited but you still need organized, secure, accessible infrastructure. At 200 lb capacity and 30-inch maximum mounting depth, it handles most 1U–4U network switches, patch panels, NVRs, and small servers without requiring a dedicated equipment room. Whether you're consolidating a surveillance head-end, a branch office network closet, or a mid-size AV rack, the RK830WALVS keeps gear off the floor, locked behind a door, and wired cleanly.

Key Features

• 8U of Usable Rack Space: Eight rack units gives you enough room to mount a 1U NVR, a 1U PoE switch, a patch panel, and still have headroom for a power strip or KVM. For network video recorders and access layer switches, this is a common combination in small-to-mid surveillance deployments.
• 200 lb / 90 kg Weight Capacity: Dense 1U gear like managed switches and rackmount servers can run 20–30 lb per unit. At 200 lb rated capacity, you're covered for a fully loaded 8U configuration without risking the mount structure.
• 30-Inch Maximum Mounting Depth: Most enterprise-class switches and 1U servers run 16–28 inches deep. The 30-inch (76 cm) max depth means you aren't forced into short-body gear only — full-depth rackmount equipment installs cleanly with clearance to spare.
• Adjustable Mounting Rails: Rails that adjust to equipment depth let you position gear at the optimal depth for cable management rather than forcing every unit to the same position. Useful when mixing shallow patch panels with deep switches in the same cabinet.
• Lockable Front Door with Key Lock: Physical security matters when the rack is in a hallway, utility room, or shared space. The keyed front door keeps unauthorized hands off switches, NVR hard drives, and console ports — without requiring a dedicated locked room.
• Lockable Top Hatch: The top hatch provides a secondary access point for cable routing and overhead wiring — and it locks independently, so you can manage top-entry cabling without compromising front-door security. A useful detail that saves time on installs where cable bundles enter from the ceiling.
• Two Optional 120 mm Fan Positions: Wall cabinets in enclosed spaces can trap heat. Two optional 120 mm fan positions let you add active cooling if the installation environment runs warm — particularly relevant for NVRs recording continuously or switches pushing high PoE loads.
• EIA/ECA-310-E Compliance: Rail spacing conforms to the EIA/ECA-310-E standard, which means any standard 19-inch rackmount equipment — switches, NVRs, patch panels, PDUs — drops in without adapter plates or custom mounting. No surprises at install time.
• 16-Inch Mounting Hole Spacing: The 16-inch stud spacing on the wall-mount bracket aligns with standard wood-frame wall stud spacing, simplifying structural attachment to wood-framed walls. Verify stud layout before installation on metal stud or concrete walls.
• Cabinet Dimensions (25.3 × 37.0 × 15.0 in): At 25.3 inches wide and 15 inches deep (the cabinet body, not the maximum rail depth), the RK830WALVS fits in tight utility corridors and doesn't project far off the wall. Plan the 37-inch height against ceiling clearance and conduit runs.
• 5-Year Manufacturer Warranty: A 5-year warranty on a passive enclosure is a strong signal of build quality and gives you long-horizon coverage for infrastructure that typically stays in place for 7–10+ years.

Integration and Compatibility

The RK830WALVS accepts any standard 19-inch rackmount equipment conforming to EIA/ECA-310-E. This includes 1U–4U managed and unmanaged switches, 1U NVRs, 2U rackmount servers, patch panels, and horizontal cable managers. The adjustable rails accommodate equipment up to 30 inches deep, covering the majority of enterprise-class gear. For surveillance applications, a common rack build in this cabinet pairs a PoE network switch with a rackmount NVR and a patch panel — fully viable within the 8U footprint. Cable entry is available through the top hatch and standard knockouts, supporting both overhead conduit and floor-routed cabling. The cabinet does not include fans as standard; if deploying in an enclosed mechanical room or a space without active HVAC, plan fan installation before commissioning the rack.

The RK830WALVS also fits naturally into small branch deployments where a full-size floor rack is impractical — retail back offices, school network closets, apartment building MDF rooms, and small warehouse security head-ends are all common use cases. For a camera system planning guide that walks through head-end equipment sizing, check the linked resource.

Frequently Asked Questions

Q: What is the maximum equipment weight the RK830WALVS can support?

A: The RK830WALVS is rated to support up to 200 lb (90 kg) of installed equipment across all 8U of rack space.

Q: What is the maximum mounting depth for equipment installed in the RK830WALVS?

A: The adjustable rails support equipment up to 30 inches (76 cm) deep, covering most full-depth enterprise switches and 1U rackmount servers.

Q: Does the RK830WALVS come with cooling fans included?

A: No. The cabinet includes mounting positions for two optional 120 mm fans, but fans are not included in the box. If deploying in a warm or enclosed environment, plan to source and install 120 mm fans separately.

Q: What wall stud spacing does the RK830WALVS mount to?

A: The cabinet uses 16-inch mounting hole spacing, which aligns with standard wood-frame wall stud spacing. For metal stud or concrete walls, verify structural requirements and use appropriate anchoring hardware.

Q: Is the RK830WALVS compatible with standard 19-inch rackmount equipment?

A: Yes. The cabinet conforms to EIA/ECA-310-E standard rail spacing, making it compatible with any standard 19-inch rackmount equipment — switches, NVRs, patch panels, PDUs, and servers.

Q: What is the warranty on the RK830WALVS?

A: StarTech provides a 5-year manufacturer warranty on the RK830WALVS.

James Everett

The RK830WALVS comes up frequently in branch office and small surveillance head-end designs where someone needs real rackmount infrastructure but has no floor space for a full-size cabinet. The 30-inch maximum mounting depth is the spec I point to first — it means you're not restricted to shallow-body gear, so a full-depth managed switch or a standard 1U NVR drops in without modification. At 200 lb capacity, a fully loaded 8U build with a switch, NVR, patch panel, and PDU won't stress the structure.

Technical Highlights:

• 200 lb / 90 kg capacity: Enough headroom for a fully loaded 8U configuration including dense 1U switches and a rackmount NVR — no need to de-rate or skip rack units to stay safe.
• Adjustable rails to 30 in depth: Positions each unit at the right depth for cable management rather than forcing every piece of gear to a single fixed point — matters when mixing 12-inch patch panels with 28-inch switches.
• Dual-lock security (door + top hatch): Two independently lockable entry points let you manage overhead cable entry without opening the front door — a practical detail on installs where structured cabling enters from the ceiling and physical security is a requirement.

Deployment Considerations:

• The 16-inch mounting hole spacing lines up with wood-frame stud spacing, but on metal stud or concrete walls you'll need to verify anchor load ratings independently — the cabinet empty weight is 80.5 lb and fully loaded approaches 280 lb combined.
• Fans are not included — if the cabinet is going into a small utility room or enclosed space without dedicated HVAC, order 120 mm fans at the same time. Waiting until the gear is running hot creates an avoidable service call.

For a retail back-office surveillance head-end or a school network closet where the rack lives in a hallway or shared utility room, the RK830WALVS hits the right balance of capacity, depth, and physical security in a footprint that doesn't require dedicated floor space.
