Middle Atlantic 8SP Vertical SLD DR BW - VWM-SD-8-36K-BW

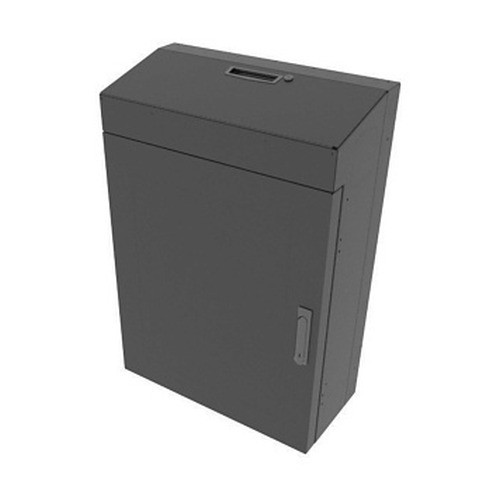

Middle Atlantic VWM-SD-8-36K-BW 8RU Vertical Wall Mount Rack with Solid Door

The Middle Atlantic VWM-SD-8-36K-BW is an 8-rack-unit vertical wall mount enclosure built for security and AV integrators who need a purpose-built, space-efficient home for network gear, NVRs, and ancillary equipment without committing floor space to a full-depth rack. At 36 inches tall and 18 inches deep, it sits flat against a wall and handles up to 150 lbs of UL-rated load — enough headroom for a populated NVR, PoE switch, and patch panel in a single cabinet. TAA compliant and manufactured in the USA, the VWM-SD-8-36K-BW is a straightforward fit for government facilities, education deployments, and any project with domestic-sourcing requirements.

Overview

Wall mount enclosures earn their place in deployments where a dedicated rack room isn't practical — retail back offices, school IDF closets, small branch locations, and surveillance equipment rooms with limited square footage. The VWM-SD-8-36K-BW delivers the structural integrity and hardware compatibility of a floor-standing rack in a format that mounts directly to a wall stud or backing plate. The solid locking door keeps equipment accessible to authorized personnel while presenting a clean, professional appearance in customer-facing or staff-occupied spaces. The wall mount rack category covers a range of depths and RU counts — this model targets deployments where 8RU and roughly 28 inches of usable depth covers the full equipment list.

Key Features

• 8 Rack Units / 36-Inch Height: 8RU of usable rail space in a 36-inch-tall cabinet. That's enough for a 2U NVR, a 1U managed PoE switch, a 1U patch panel, and a 1U UPS with room to spare — a complete small-site surveillance head-end without a dedicated rack room.
• 150 lb UL-Rated Load Capacity: UL-listed for 150 lbs (68 kg) of dynamic load. Populated security equipment rarely exceeds 60–80 lbs in an 8RU footprint, so you're well inside the structural margin even with a fully loaded NVR and battery backup.
• 27.8-Inch Usable Depth: The 27.8-inch (70.6 cm) usable interior depth accommodates most commercial NVRs and 1U switches without cable management compromises. The 18-inch overall cabinet depth is the wall-side measurement — the interior rail depth is what governs equipment fit.
• 10-32 and Cage Nut Rail Compatibility: Dual-standard rails accept both 10-32 threaded and cage nut hardware, so you're not forced into a single mounting fastener system. Most commercial NVRs, switches, and patch panels ship with one or the other — having both eliminates adapter procurement.
• Solid Door with 25mm × 150mm Swing Handle: The solid steel door with integrated swing handle keeps equipment concealed and reduces casual tampering risk. For locations where the enclosure is visible to staff or visitors, a solid door reads as infrastructure rather than open gear — relevant in retail, hospitality, and education environments.
• Steel Construction with Black Wrinkle Powder Coat Finish: All-steel construction with a durable black wrinkle powder coat means the cabinet resists surface wear in utility spaces. The finish is also consistent with most standard rack hardware aesthetics, so mixed-vendor builds don't produce visual mismatches.
• Forward Compatible Design: Middle Atlantic's forward-compatible architecture means accessories, panels, and blanking plates from the broader Middle Atlantic rack and enclosure line install without modification. If your equipment list grows after initial deployment, you're not locked out of expansion hardware.
• TAA Compliant, USA Origin: Federal Ops country of origin listed as USA, TAA compliant — both mandatory checkboxes for GSA schedule work, DoD facility deployments, and most state/local government bids that carry TAA language in the spec.
• GREENGUARD Certified (CSA Listed): CSA GREENGUARD certification addresses indoor air quality, relevant for deployments in occupied spaces like schools, healthcare facilities, and office buildings where off-gassing from equipment enclosures can be a specification requirement.

Integration and Compatibility

The VWM-SD-8-36K-BW integrates into standard 19-inch rack ecosystems via 10-32 and cage nut rails — compatible with the full range of 1U and 2U commercial security hardware including NVRs from Axis, Hanwha, Hikvision, and i-PRO, managed PoE switches, patch panels, and 1U UPS units. The 27.8-inch usable depth handles most short- and mid-depth 1U appliances without extension rails. For full-depth servers or deep-chassis equipment, verify the manufacturer's stated chassis depth against the 27.8-inch interior before specifying. The enclosure ships ready for wall installation; the wall mounting hardware and specific stud/backing plate requirements should be confirmed against the installation guide available from the manufacturer. This wall rack pairs naturally with a structured rack accessory build-out including blanking panels, cable managers, and PDUs sized for 8RU enclosures.

Frequently Asked Questions

Q: Is the Middle Atlantic VWM-SD-8-36K-BW TAA compliant?

A: Yes. The VWM-SD-8-36K-BW is TAA compliant with Federal Ops country of origin listed as USA, making it eligible for GSA schedule and government procurement projects with domestic-sourcing requirements.

Q: What is the UL-rated load capacity of the VWM-SD-8-36K-BW?

A: The UL load capacity is 150 lbs (68 kg). This covers a fully populated 8RU build including a commercial NVR, PoE switch, patch panel, and 1U UPS with significant structural margin remaining.

Q: What is the usable interior depth for equipment mounting?

A: The usable depth is 27.8 inches (70.6 cm). The 18-inch figure refers to the overall cabinet depth from wall to door face — equipment should be verified against the 27.8-inch interior rail depth.

Q: What rail type does the VWM-SD-8-36K-BW use?

A: It supports both 10-32 threaded and cage nut mounting standards, so it's compatible with the full range of standard commercial rack hardware without requiring adapters.

Q: Is the VWM-SD-8-36K-BW suitable for a government or education project with GREENGUARD requirements?

A: Yes. The enclosure carries CSA GREENGUARD certification, which addresses indoor air quality standards relevant for occupied spaces including schools, healthcare facilities, and government offices.

Q: How many rack units does the VWM-SD-8-36K-BW provide, and what equipment fits?

A: It provides 8 rack units. A typical surveillance head-end fit: 2U NVR, 1U managed PoE switch, 1U patch panel, and 1U UPS, leaving 3RU for future expansion or cable management accessories.

James Everett

The VWM-SD-8-36K-BW is the enclosure I specify when a project calls for a permanent, locked surveillance head-end and there's no rack room in the plans. The 27.8-inch usable interior depth is the number that actually matters at procurement — not the 18-inch wall-profile figure — and it's deep enough to handle virtually every 1U and 2U NVR I've put in a wall mount without pulling extension rails off a shelf.

Technical Highlights:

• 150 lb UL Load Rating: A fully populated 8RU surveillance build — NVR, PoE switch, patch panel, UPS — rarely exceeds 75–80 lbs. The 150 lb UL-listed rating gives you a 2:1 structural margin, which matters on projects where the AHJ reviews rack installation drawings.
• Dual Rail Standard (10-32 + Cage Nut): Supporting both 10-32 and cage nut in the same rail eliminates the hardware mismatch you'd otherwise solve with floating-nut inserts. Mix a cage-nut NVR with a 10-32 switch in the same cabinet without adapters.
• TAA + USA Origin: With Federal Ops country of origin as USA and TAA compliance confirmed, this enclosure clears the sourcing language in most government and education bid specs without a waiver request — the VWM-SD-8-36K-BW (often searched as VWM SD 8 36K BW) ships ready for those project types out of the box.

Deployment Considerations:

• The 18-inch overall depth is a wall-profile measurement. Verify wall backing plate dimensions and stud spacing against the installation guide before rough-in — the cabinet is 25 inches wide and 77.5 lbs unloaded, so blocking requirements are non-trivial on drywall-only walls.
• At 88 lbs shipping weight, this is a two-person lift for wall installation. Budget accordingly in labor estimates; don't spec a solo tech install for this cabinet at height.

This enclosure is the right call for retail loss prevention, small-campus IDF surveillance closets, and municipal facility deployments where TAA compliance is mandatory, floor space is constrained, and equipment needs to be locked away from general staff without hiding it in a separate room.
