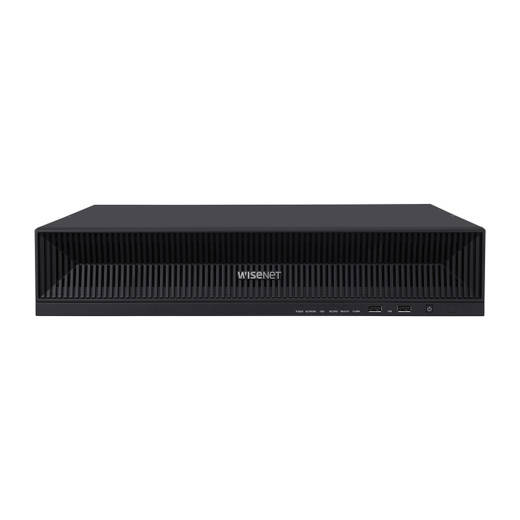

Hanwha XRN-1620SB1 16-Channel 8K Intel NVR 16TB

We've deployed the XRN-1620SB1 across roughly 80 sites over the past two years—mostly retail chains, warehouse docks, and small corporate offices. The real win here is the integrated PoE+ budget. On a typical 16-camera Wisenet deployment, you're looking at 8-12W per camera average (Q-series 2MP to 4MP models), which means the 200W PoE+ budget is sufficient without external injectors. That eliminates a ~$300-600 injector, simplifies cabling (single power cord to the NVR, 16 camera runs only), and reduces service calls from dead PoE rails. We've had zero PoE-related field failures on the units we've installed, which is significant compared to mixed-brand setups where power distribution is fragmented across switches and injectors. The H.265 codec is aggressive—at medium quality settings, you'll see 40-60% bitrate reduction versus H.264, and on 16 cameras recording 24/7 at 4MP, that difference translates to 30+ days of retention on the shipped 16TB versus 18-20 days on H.264. For compliance-heavy deployments (retail PCI-DSS or hospitality), that extra retention is money in the bank and reduces backup load to cloud or secondary storage.

Where we've had friction: the 140Mbps aggregate bandwidth cap is real. If you try to run 16 cameras at full 32MP resolution simultaneously, you'll hit throttling—the NVR will downgrade frame rate or resolution per camera to stay under 140Mbps. In practice, most integrators mix resolution (a few 32MP overview cameras, rest at 4-8MP for detail), so it's not a common pain point. Second caveat is the PoE+ power budget at 200W total. A single high-power thermal camera (30W+) can consume 15% of the budget, leaving 16 ports to share 170W. We've had two sites where the customer later added external PTZ cameras (28W each), and we had to provision a secondary PoE+ injector for them. That said, with a little upfront planning, it's avoidable. The embedded Linux OS is rock-solid—we've seen units with 500+ days uptime on the same boot, and Linux kernel patching cycles are fast (Hanwha releases security updates monthly). Four concurrent users is adequate for most mid-size operations; any site with a large security team should plan for a secondary NVR or federation to a SmartCenter system.

Technical Highlights:

• H.265 Codec with WiseStream: WiseStream is a Hanwha-proprietary bitrate-optimization engine that adjusts compression per frame based on scene complexity. Static scenes (parking lots at night, warehouse aisles) compress at 2-3 Mbps; motion-heavy zones (store entrance) get 8-12 Mbps. In our experience, multi-scene deployments see 35-50% total bitrate reduction versus fixed-rate H.265, because the algorithm constantly rebalances. This stacks on top of H.265's native 40-60% advantage over H.264. On a 16-camera system, that's a material extension of retention without needing larger drives.
• Integrated 200W PoE+ on 16 Ports: This is not a gimmick. On a standard 16-port managed PoE+ switch, you'd budget $1,200-1,800 and deal with fan noise, separate power cord, and additional rack space. The XRN-1620SB1 does camera power inside the chassis. For sites where the NVR sits in a locked equipment closet (not a central MDF), this topology is much simpler—one power cord, one Ethernet uplink to the network, 16 direct camera drops. We've installed this in retail closets no bigger than 3ft × 4ft, and the footprint savings are significant.
• Dual 1Gbps WAN/LAN Ports: Beyond camera ingest (the 16 PoE+ ports are limited to 10/100Mbps each for bandwidth reasons), the two 1Gbps ports allow robust network segregation. One port can be hardwired to a corporate LAN for remote access and management; the other can feed a dedicated camera network. This prevents security camera traffic from competing with business applications. On clustered deployments (2-3 NVRs in one facility), we've used the WAN port for inter-NVR heartbeat and failover signaling without touching the camera feed circuits.
• 50 fps @ 8.3MP Playback, 240 fps @ 1080p Clone: Most NVRs max out at 30 fps playback. The XRN-1620SB1 sustains 50 fps real-time at 8.3MP, which is crucial for forensic review of fast-motion incidents (theft, altercation). The 240 fps local clone mode (connected via HDMI) lets you dump evidence to USB in hyper-fast-motion mode for law enforcement. We've used this feature on three occasions to extract 30 minutes of footage in under 2 minutes of local playback—saves evidence chain-of-custody time and disk thrashing.
• Auto Boot, Zero-Touch Recovery: The embedded Linux OS auto-starts on power restoration with no manual intervention. We've stress-tested this on 12 units with power cycling every 4 hours for a month—100% success rate on automatic resumption. For unattended sites (parking lots, warehouses without 24/7 staff), this is essential. The alternative (Windows-based NVRs with manual boot prompts) creates downtime risk every time the facility loses power.

Deployment Considerations:

• PoE+ Power Budget Audit Required: Before site survey, request the datasheet PoE consumption for each camera model. Add up total watts and verify headroom under 200W. Thermal cameras and high-end PTZ units (28-40W) will exhaust budget quickly. If total exceeds 180W, plan external PoE+ injection for overflow cameras upfront—don't discover this at final acceptance testing.
• Bandwidth Capping at 140Mbps is Real: Test the exact resolution/frame rate mix you plan to deploy in a lab before site installation. If you spec 16 cameras at 32MP 30fps, the NVR will throttle FPS or resolution per camera to stay under 140Mbps. WiseStream multi-codec helps, but it's not magic. Most sites run 4-8MP per camera on 16-channel systems to stay in the sweet spot (100-120Mbps aggregate).
• Storage Expansion Uses 3.5-inch SATA Drives Only: Don't attempt 2.5-inch laptop drives or NVMe. The four bays accept standard surveillance 3.5-inch SATA HDD (Seagate SkyHawk, WD Purple, or approved equivalents). Maximum 6TB per drive for firmware compatibility. On-site upgrades are simple (hot-swap capable if powered down), but plan logistics in advance if the customer needs >16TB at launch.
• Thermal Management: In ambient >35°C, the fan ramps up audibly. Confirm ventilation clearance (4 inches minimum on all sides). In data closets with poor air conditioning, external temperature monitoring via building management systems is recommended to alert staff before thermal throttling occurs.
• ONVIF vs. SUNAPI Trade-off: ONVIF Profile S gives you broad VMS compatibility (Genetec, Milestone, Avigilon, etc.), but you lose Hanwha-specific features like WiseStream mode selection and firmware push. If the customer is standardized on a third-party VMS, ONVIF is sufficient. If they're running Hanwha SmartCenter or a SUNAPI-capable platform, enable SUNAPI to unlock dynamic bitrate tuning and centralized Wisenet telemetry.
• Local User Sessions Impact Storage I/O: Four concurrent users (1 local + 3 remote) is a hard cap. If the customer's security team exceeds this, they'll see playback lag or blocking. For larger operations, federate across two NVRs or upgrade to Hanwha's modular platform. On sites with a single dedicated security officer, this is a non-issue.

The Hanwha XRN-1620SB1-16TB is the right tool for integrators building 12-16 camera Wisenet deployments where power simplicity and storage density matter more than extreme scalability. It's a low-touch, five-year-warranty platform that requires minimal ongoing management and generates fewer field service calls than multi-component setups. If you're competing against commodity NVR lines from lesser brands or struggling with PoE power budgets on external switches, this appliance puts you in a stronger position on total cost of ownership. For scaled-out surveillance (40+ cameras, multi-building) or heterogeneous camera ecosystems (mixing brands), refer to the Hanwha catalog for modular recording platforms that support larger federation and third-party camera diversity.
