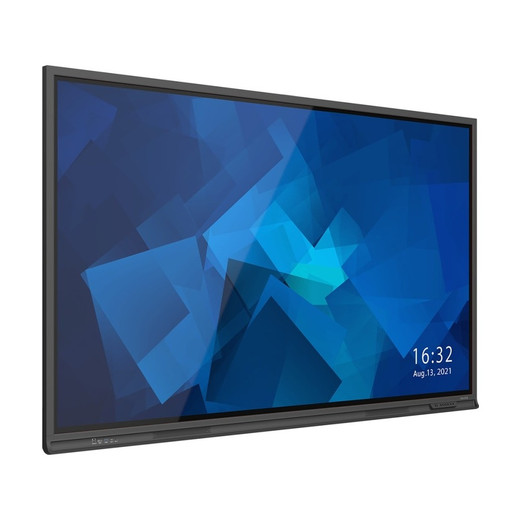

ACTi TT-8625QELT 86in Q Pro Elite 4K LED Multi-Touch Display

We've deployed the ACTi TT-8625QELT in mid-scale SOC refreshes where the client wanted to move away from a mosaic of older 1080p monitors toward a single large, touch-enabled surface. What makes this display stand out is the honest 4K native resolution — not upscaled, not a stretched 2K — paired with multi-touch that actually feels responsive. On forensic review work, the pixel density matters enormously. When you're zooming into a parking lot feed to read a license plate or scrutinize facial landmarks, 8MP rendered edge-to-edge eliminates the soft-focus frustration you get on consumer LED screens pretending to be 4K. The EDLA support ensures that video playback (especially H.264 or H.265 streams with frequent pans and zooms) remains smooth without judder, which is critical for behavioral analysis and chain-of-custody footage review. The integrated microphone is genuinely useful; we've seen operators avoid the overhead of a separate audio interface by routing comms directly through the display. NFC authentication is a nice-to-have in facilities with high staff rotation — a tap loads the operator's saved layout, and you sidestep the credential-entry ritual every shift change. The multi-touch gesture support works well with modern VMS web clients (Genetec Command Center, Milestone Smart Client), though you'll want to confirm with your integrator that your VMS vendor's UI actually supports pinch-zoom and swipe before committing. One caveat: the display is Taiwan-sourced and not NDAA Section 889 compliant, so it's off-limits for any federal, DoD, or critical-infrastructure work with supply-chain mandates. For commercial and municipal deployments, that's not a blocker. TCO is favorable when you're replacing a multi-monitor stand (four to six 55-inch or 65-inch displays) with a single 86-inch unit — lower power draw, fewer input cables, single point of failure (obviously), and a cleaner operator workspace. Thermal performance is solid; the LED backlight doesn't generate the heat load of older plasma or projection rigs, so your SOC HVAC doesn't need upsizing.

Technical Highlights:

• Native 4K (8MP) LED Backlighting: 3840×2160 resolution is not scaled or interpolated. Every camera feed and UI element renders with full pixel fidelity. On a 55-inch or 65-inch monitor, 4K is marketing; on 86 inches, it's a genuine forensic advantage. Operator ability to spot details (badges, faces, license plates) in real time improves measurably versus 1080p or 2K upscaling.
• Capacitive Multi-Touch with Gesture Support: Pinch-zoom, swipe, and two-finger rotation work with modern VMS dashboards. Reduces context-switching latency — no mouse grab, no keyboard command entry. Operators maintain situational awareness without looking away from the screen.
• USB Type-C with Power Delivery: Simplifies integration to modern thin clients and workstations. Single cable carries video, data, and charging where supported. Reduces cable management overhead on command-center installations and improves flexibility for future laptop or client upgrades.
• EDLA (Enhanced DisplayLink Alliance): High-bandwidth auxiliary standard ensures smooth rendering of video playback and UI animations. Eliminates the micro-stuttering and color-shift artifacts that plague cheaper extended-display protocols. Particularly important for 24/7 forensic review work where flicker-induced eye strain compounds across 8-hour shifts.
• Integrated Microphone + Audio I/O: Eliminates the need for separate intercom hardware or desk-mounted mics. Audio can be routed to field radios, incident management platforms, or cloud logging systems via VMS API integrations. Supports concurrent two-way communication with field personnel during active incidents.
• NFC Access Control Integration: Badge-tap authentication loads operator-specific layouts and VMS role profiles without manual login. Reduces shift-change friction in high-turnover SOCs and provides audit trails for access control compliance (who was monitoring which cameras at what time).

Deployment Considerations:

• Multi-Touch Gesture Support Requires Compatible VMS Client: Not all VMS platforms expose touch-native UI controls. Genetec Command Center, Milestone Smart Client, and some third-party dashboards support pinch-zoom and swipe; others don't. Validate with your software vendor before specifying. Fallback to mouse/keyboard always works, but you lose the usability advantage.
• EDLA Protocol May Require Vendor-Certified Adapter or Graphics Card: The display supports EDLA, but your workstation GPU or docking station must also support it. DisplayLink adapters are widely available, but compatibility varies by vendor (Dell, Lenovo, Thunderbolt Dock manufacturers). Request EDLA certification from your IT/procurement team before purchasing.
• NFC Credential Integration Requires VMS or Access Control API Support: The display can output NFC badge reads, but your VMS or access control system must ingest those credentials. Genetec and Milestone support this via plugins; smaller or legacy VMS platforms may not. Plan for custom middleware or API scripting if you want full NFC-to-layout automation.
• Taiwan-Sourced — Not NDAA Section 889 Compliant: If the deployment falls under federal contracting, critical infrastructure, or DoD supply-chain mandates, this display is disqualified. Confirm procurement and contract language early; don't discover this five months into a project timeline.
• Single Large Screen vs. Multi-Monitor Redundancy: One 86-inch display eliminates the cost and cabling of a monitor wall, but introduces a single point of failure. If SOC uptime is critical, consider pairing it with a secondary backup monitor or laying out the workstation with a secondary (smaller) display as failover. Most mid-market SOCs accept this trade-off.
• Thermal and Power Considerations: LED backlight is efficient, but 86 inches of 24/7 operation still draws meaningful power (typically 300–500W). Confirm your SOC UPS capacity and circuit provisioning. The display should be on a dedicated, monitored power circuit; shared circuits with other equipment invite nuisance shutdowns under load spike.

The TT-8625QELT is the right fit for mid-market security operations centers, municipal dispatch rooms, and large-scale retail command centers where integrators and operators want a single, high-fidelity monitoring surface without the complexity of video-wall tiling, separate control systems, and multi-panel synchronization. For facility teams already committed to ACTi IP cameras, the display integrates natively with ACTi's recording and analytics platforms — simplifying procurement and support. Explore the full ACTi catalog for compatible recorders, edge analytics, and accessory options.
