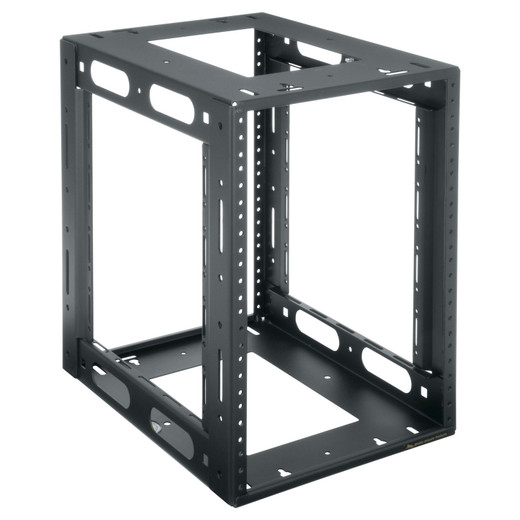

Middle Atlantic 8 Spaces 14DP 10in. W HRF Series Rack Steel Black Powder Coat finish - HRF-814

Middle Atlantic HRF-814 8U Half-Rack Panel Rack Enclosure

The Middle Atlantic HRF-814 is a purpose-built 8U half-rack enclosure designed for installations where a full 19-inch rack footprint is impractical — think control rooms with limited floor space, telecom closets, AV equipment rooms, and security head-end cabinets. At 10.65 inches wide and 14 inches of usable depth, the HRF-814 fits mid-density equipment loads without the bulk of a standard equipment rack. TAA-compliant and UL Listed, it meets federal procurement requirements and commercial safety standards right out of the box. If you've been searching for the HRF-814 (often searched as HRF 814), this is Middle Atlantic's half-rack answer to the perennial space-versus-capacity tradeoff.

Overview

Half-rack enclosures occupy a specific niche: you need organized, rail-mounted equipment housing, but the job site won't accommodate a full-width 19-inch frame. The HRF-814 addresses this with an 8RU configuration in a 10.65-inch-wide footprint, using standard 10-32 threaded rail for compatibility with the overwhelming majority of rack-mount hardware on the market. The steel construction with black powder coat finish is built for the long haul — not the kind of enclosure that flexes under load or shows wear after a year in a mechanical room. Manufactured in Mexico, it carries TAA compliance status, which matters for government, education, and federally-funded installations subject to Trade Agreements Act sourcing requirements.

Key Features

• 8 Rack Units (8RU) in a half-rack form factor: At 14.94 inches tall overall, the HRF-814 fits 8U of gear in a frame barely wider than a standard network switch. That's enough capacity for a compact NVR, patch panel, and a PDU in a single enclosure — without consuming wall or floor space you don't have. Explore rack enclosures and accessories to round out your installation.
• 14-inch usable depth (14 in / 35.6 cm): The usable depth matches the total depth at 14 inches — no wasted clearance. This accommodates most 1U and 2U security appliances, small NVRs, and networking gear without the front-to-back wasted space that plagues shallow enclosures. Check network video recorders to find units that fit this depth profile.
• 125 lb (56.7 kg) weight capacity: For an 8U half-rack, 125 lbs is a credible working load. You can fully populate this enclosure with dense 1U gear and not worry about the frame deflecting. That's roughly equivalent to eight fully-loaded 1U appliances — a realistic populated configuration for a security or AV head-end.
• 10-32 threaded rack rails: The 10-32 rail standard is universal among commercial AV and security equipment. Unlike cage-nut systems that require separate hardware and careful alignment, threaded 10-32 rails accept standard rack screws directly — faster installs, fewer parts on the floor, and no risk of a stripped cage nut dropping your equipment mid-run. Rack accessories including shelves and blanks are widely available in this format.
• TAA-compliant and UL Listed: TAA compliance means this enclosure qualifies for GSA Schedule purchases and other federal procurement vehicles without a waiver. The UL listing addresses commercial building code requirements in jurisdictions that mandate listed enclosures for electrical equipment. Both certifications are confirmed on this SKU — not a family-level claim.
• Steel construction with black powder coat finish: The powder coat finish resists chipping, corrosion, and the kind of surface wear that makes control rooms look neglected after a few years. Steel construction keeps the frame rigid under load, which matters for any rack that gets moved during commissioning or periodic equipment swaps.
• 10.65-inch panel width (27.1 cm): At just over 10.5 inches wide, the HRF-814 can mount flush inside a wall-mount rack cavity or sit on a narrow shelf without overhanging adjacent equipment — a practical constraint in dense head-end rooms where every inch of horizontal clearance counts.

Integration and Compatibility

The HRF-814 is built around the 10-32 threaded rail standard, which covers virtually all rack-mount security, networking, and AV equipment produced in the last two decades. If your NVR, PoE switch, or access control panel ships with standard rack ears, it mounts here without adapters. The 14-inch usable depth accommodates most 1U shallow-mount devices as well as mid-depth 2U appliances — verify your equipment's rack depth against the 14-inch usable figure before ordering deep chassis units. The Middle Atlantic rack product line includes complementary shelves, blanks, and mounting accessories designed to the same half-rack width standard, so filling out the enclosure with non-rack equipment (UPS units, cable management) is straightforward within the same product family.

Frequently Asked Questions

Q: Is the Middle Atlantic HRF-814 TAA compliant?

A: Yes. The HRF-814 is confirmed TAA compliant and UL Listed, making it eligible for GSA Schedule and other federal procurement vehicles without a waiver. Country of origin is Mexico.

Q: What rail type does the HRF-814 use?

A: The HRF-814 uses 10-32 threaded rack rails — the standard format for commercial AV and security rack-mount equipment. No cage nuts required; standard 10-32 rack screws mount directly.

Q: How much equipment weight can the HRF-814 support?

A: The weight capacity is 125 lbs (56.7 kg). For a fully-populated 8U half-rack, this is sufficient for dense 1U and 2U appliances without frame deflection.

Q: What is the usable depth inside the HRF-814?

A: The usable depth is 14 inches (35.6 cm), matching the total enclosure depth. Most 1U and 2U security, networking, and AV appliances fit without modification — verify deep-chassis units against this figure before ordering.

Q: What is the overall width of the HRF-814?

A: Overall width is 10.65 inches (27.1 cm) with a panel width of 10.63 inches (27 cm). This is a half-rack width enclosure, not a standard 19-inch rack.

Q: Can the HRF-814 be used in a government or federally-funded installation?

A: Yes. TAA compliance is confirmed for this SKU (UPC 656747185809), and country of origin is Mexico — satisfying Trade Agreements Act sourcing requirements for federal, education, and government-contract installations.

Eden Phillips

The HRF-814 comes up often in security head-end installs where the integrator has a tight alcove or shallow equipment closet to work with. The 125 lb weight capacity is the spec I check first on half-racks — plenty of enclosures in this form factor top out at 60–75 lbs, which starts to get dicey once you've got a populated NVR and a managed PoE switch sharing the same frame. The HRF-814 handles that load without drama.

Technical Highlights:

• 10-32 threaded rails: Eliminates the cage-nut step entirely — every standard rack-ear device threads directly in. On a job with multiple installs, this is a real time saver and removes the failure mode of a dropped cage nut behind the equipment.
• 14 in usable depth: The full 14 inches runs all the way to the rail — no offset from the front panel eating into your usable space. Most 1U appliances and shallow 2U NVRs land comfortably inside this envelope.
• TAA + UL Listed on the SKU: Both certifications are confirmed on the HRF-814 specifically, not just claimed at the product family level. That matters when a government or education end-user requests compliance documentation — you can point to the UPC (656747185809) directly.

Deployment Considerations:

• At 10.65 inches wide, this is a half-rack format — confirm your mounting surface or enclosure cutout accommodates that dimension before spec'ing it. Wall-mount brackets rated for half-rack width are required; standard 19-inch wall-mount rails won't work here.
• The 14-inch depth is the limiting constraint for deeper chassis. Any device with a rack depth exceeding 14 inches — certain UPS units, some rackmount servers — will not fit. Measure before you spec.

The HRF-814 is the right call for compact security head-end rooms, municipal government telecom closets, and education AV equipment alcoves where TAA compliance is a procurement requirement and the half-rack footprint is a hard constraint, not a preference.
