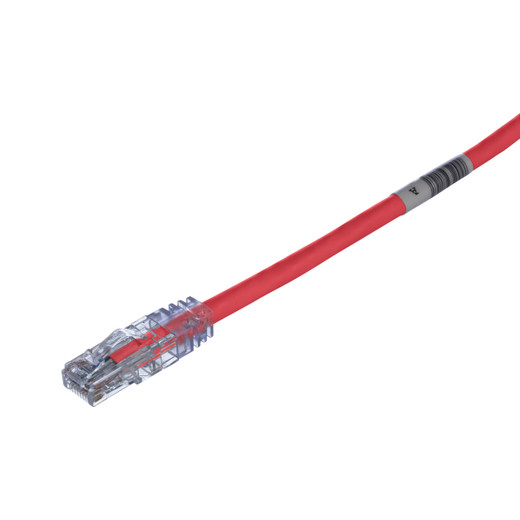

Panduit UTPSP7RDY Patch Cord

Overview

The Panduit UTPSP7RDY is a 7-foot, red, Category 6 Unshielded Twisted Pair (UTP) patch cord. Constructed with 24 AWG stranded copper, this cable is designed for high-performance data transmission in enterprise and data center environments. Its tangle-free latch mechanism simplifies moves, adds, and changes by preventing snags, while the slender strain relief boot ensures easy access in high-density rack installations. This cable supports IEEE 802.3bt Type 3 and Type 4 Power over Ethernet (PoE++) applications, delivering up to 100W of power, making it suitable for powering network devices like cameras or access points directly through the cable.

Compatibility

This Cat 6 UTP patch cord is engineered to exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for frequencies up to 250 MHz. It is compatible with all standard RJ45-equipped networking equipment, including Gigabit Ethernet (1000BASE-T) and 10 Gigabit Ethernet (10GBASE-T) over limited distances. The cable is wired to support both T568A and T568B wiring schemes. It is also rated to support IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) power delivery standards.

Installation Notes

The cable features a patented tangle-free latch that requires a simple push for release, streamlining port mapping and cable management. The 24 AWG stranded conductor construction offers flexibility for routing in tight spaces. The CM flammability rating indicates suitability for use in general-purpose riser applications within commercial buildings, subject to local codes.
