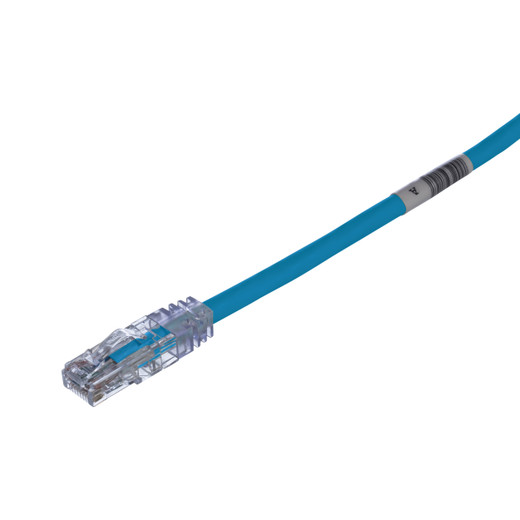

Panduit UTPSP6BUY Cat 6 UTP Patch Cord
The Panduit UTPSP6BUY delivers TX6™ PLUS performance in a 6-foot Cat 6 UTP patch cord engineered for high-density structured cabling deployments. Built with 24 AWG stranded copper and factory-terminated with Panduit's centered de-embedded modular plugs, this blue patch cord exceeds ANSI/TIA-568.2-D Category 6 specifications across the full 1–250 MHz spectrum while supporting 10GBASE-T over limited distances, PoE++ (802.3bt Type 3/4 at 60–100W), and Gigabit Ethernet. The patented tangle-free latch and slender strain relief boot streamline moves, adds, and changes in congested patch panels, distribution frames, and equipment racks where finger access is tight and snagging risks cable damage or unintended disconnects.
Key Features
- TX6 PLUS Category 6 Performance: Exceeds ANSI/TIA-568.2-D and ISO 11801 Class E across 1–250 MHz; supports 10GBASE-T (limited distance per IEEE standards), Gigabit Ethernet, and legacy 100BASE-T/10BASE-T applications
- RapidID Pre-Installed Barcodes: Embedded asset-tracking codes enable one-scan port mapping with Panduit's RapidID software, cutting documentation time and eliminating manual labeling errors during MAC-intensive projects
- Patented Tangle-Free Latch: Prevents cable snags and ensures fast, positive release in bundled runs; reduces force required to seat and unseat connections in densely populated patch fields
- Centered De-Embedded Plug Design: Integral pair manager maintains twist geometry through the termination, minimizing return loss and NEXT for margin-critical 10GBASE-T links
- PoE++ Ready (802.3bt Type 3/4): 24 AWG stranded conductors handle up to 100W PoE delivery for PTZ cameras, high-power APs, and LED lighting—tested to full ANSI/TIA-1096-A and IEEE 802.3bt thermal-rise limits
- Slender Strain Relief Boot: Low-profile jacket exit provides 360° bend protection without blocking adjacent ports; critical for 1U switch panels and blade-server patch arrays
Every UTPSP6BUY cord ships with 100% performance validation—wire map, NEXT, and return loss tested at the factory to guarantee channel compliance when paired with TX6 PLUS jacks and panels. The unshielded twisted-pair (U/UTP) construction uses stranded 24 AWG copper for flex-cycle durability in service loops and user-facing connections where solid-conductor patch cords risk conductor fatigue and intermittent opens. Panduit's centered de-embedded plug places the PCB trace terminations on-axis with the cable pairs, reducing impedance discontinuity and reflections that degrade margin at the 500 MHz signaling rate required for 10GBASE-T. The integral pair manager inside the plug body keeps twist separation under 0.5 inches from the cable jacket to the contact interface, a design detail that separates TX6 PLUS from generic Cat 6 patch cords when audited against TIA's alien crosstalk (ANEXT) guidelines for densely bundled horizontal links. When you're stacking 48-port switches in a 42U cabinet or dressing out a MDF with 200+ cross-connects, the tangle-free latch becomes the difference between a 20-second disconnect and a 90-second fumble with needle-nose pliers—multiply that across a 500-drop install and the labor savings self-fund the material premium.
Installers deploy the UTPSP6BUY across IP camera networks (especially PoE-fed PTZ and multi-sensor models), access-layer switch interconnects, IP telephony handset drops, and building-automation controller links where you need verified Category 6 bandwidth but don't want to stock both stranded patch cords and solid backbone cable. The CM (communications) flame rating covers plenum-return-adjacent spaces when used with plenum-rated horizontal cable; for air-handling installations, step up to Panduit's CMP-rated patch cord SKUs. RapidID barcode integration fits enterprise and campus projects where the IT group mandates asset-tracking at the port level—scan the label during installation, and the RapidID database auto-populates switch port, VLAN assignment, and physical location without a second trip or spreadsheet reconciliation. Carton quantity of 10 suits mid-sized rollouts; for larger projects, Panduit offers bulk spools and made-to-order lengths through their Pan-Net custom patch-cord program.
Compliance spans ANSI/TIA-1096-A (formerly FCC Part 68 telecom), IEC 60603-7 modular connector interoperability, UL 1863 and CAN/CSA-C22.2 (File E129886) safety listing, and RoHS restrictions—covering federal, telco, and green-procurement mandates for DoD, healthcare, and municipal integrators. The cord is wired T568A/B-compatible, so it mates with either wiring scheme without polarity issues. When you're bidding a project that specifies "Category 6 performance with documented test results and PoE++ support," the UTPSP6BUY delivers the third-party certifications and factory test reports the engineer-of-record needs to sign off—no field testing required, no change-order risk, no callbacks for marginal links that fail certification on day 90.
