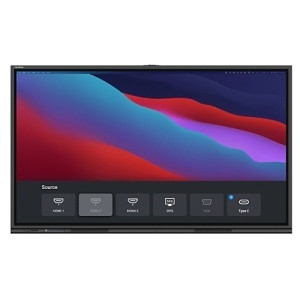

ACTi STV-6524-PLUS 65-Inch 4K UHD Surveillance Display
Overview
The STV-6524-PLUS is a 65-inch 4K UHD display (3840×2160 resolution) purpose-built for surveillance control rooms and monitoring stations. It delivers 270 nits of brightness with a 4000:1 dynamic contrast ratio—sufficient for indoor facilities where you need to read detail on live camera feeds without excessive glare. The anti-glare glass surface eliminates reflections from overhead lighting, a practical advantage in windowless NOC environments. Built-in Wi-Fi and smart TV integration simplify content distribution without additional network hardware.
Compatibility
The STV-6524-PLUS integrates with any surveillance VMS or IP camera system that outputs HDMI or network video streams—no vendor lock-in. It supports standard 16:9 widescreen aspect ratio and 60 Hz refresh, compatible with ONVIF-compliant cameras, NVRs, and video management platforms over ethernet or Wi-Fi. The 65-inch size fits mid-to-large control rooms where wall or rack mounting is available; smaller facilities may prefer the 55-inch STV-5524-PLUS variant, while larger deployments can scale to the 75-inch (STV-7524-PLUS) or 85-inch (STV-8524-PLUS) models in the same STV+ series.
Installation Notes
Operates on 110–240V AC (50/60 Hz) with normal power consumption of 160W—plan for a dedicated 15A circuit if running continuously. Standby power draw is ≤0.5W. The display supports both wall and rack mounting; verify your mounting hardware can handle the physical footprint (56.2 × 31.6 inches display area) before installation. Storage and transport temperature range is 0–85% RH at 0–60°C (no condensing). Built-in 2×10W speakers provide audio monitoring for two-way intercom or alarm audio without external amplifiers.
What's in the Box
- 1× STV-6524-PLUS display unit
- Power cord (110–240V, 50/60 Hz)
- Wall/rack mounting bracket hardware
- User documentation and quick-start guide
