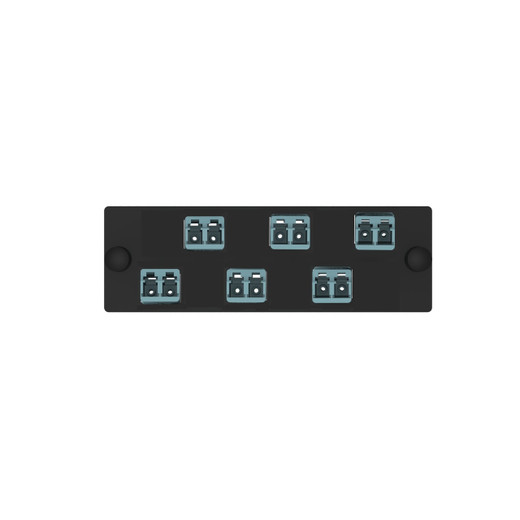

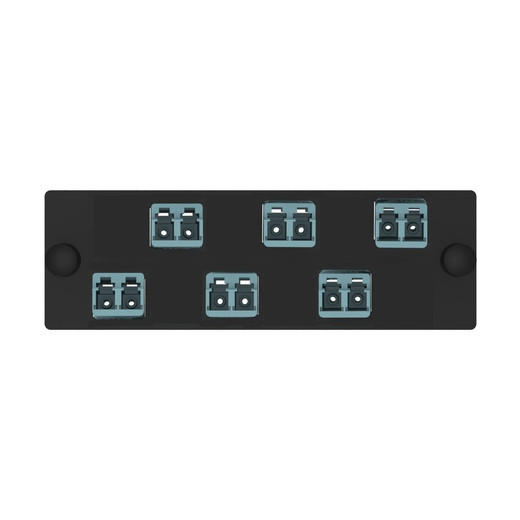

Panduit FAP6WHAQDLCZ 6-Position Keyed LC Fiber Adapter Panel
Overview
The Panduit FAP6WHAQDLCZ is a 6-position keyed LC fiber adapter panel from Panduit's Opticom® line, finished in H-Aqua — a color designation that supports polarity and fiber-type identification in high-density structured cabling installations. If you're building out or expanding a fiber optic cabling infrastructure, this panel drops into a compatible Panduit patch panel housing and provides six keyed LC duplex adapter positions in a single unit.
The keyed LC adapter format is the operative detail here: keyed connectors physically prevent accidental cross-connection between fiber types or polarity configurations, which matters in any environment where multiple fiber grades or polarities share the same panel real estate — data centers, campus MDF/IDF rooms, or multi-tenant installations where misconnection carries real operational risk. This is a passive component, so there is no power, no management interface, and no firmware — its job is to hold adapters securely, maintain alignment, and survive the connector insertion cycles a working telecom room generates over years of moves, adds, and changes.
The H-Aqua color coding on the FAP6WHAQDLCZ aligns with Panduit's fiber identification scheme. In a rack with multiple adapter panels, color-differentiated faceplates reduce the time a technician spends tracing connections under load — a small detail that compounds across a large installation. For the full range of Panduit structured cabling components, including compatible panel frames and fiber management accessories, see the complete Panduit catalog.
Key Features
- 6 Keyed LC Adapter Positions: Six positions per panel means you can terminate 12 fibers (LC is duplex by default) in a single panel slot — density that matters when rack space is finite and fiber counts are climbing.
- Keyed Connector Format: Physical keying prevents misconnection between fiber types or polarity configurations at the adapter level — a hardware-enforced safeguard that works even when labeling degrades or new technicians are unfamiliar with the installation.
- H-Aqua Color Identification: The H-Aqua finish supports Panduit's color-coded identification system, making it straightforward to differentiate panel types, fiber grades, or network segments at a glance in a dense fiber patch panel environment.
- Opticom® Platform Compatibility: Designed as part of Panduit's Opticom system, this panel is engineered to integrate with compatible Panduit frames and housings — pairing with the right frame is required for correct installation, so verify housing compatibility before ordering.
- Passive, Maintenance-Free Operation: No electronics, no firmware, no scheduled maintenance. Once installed in a compatible structured cabling housing, the panel's operational burden is zero — swap connectors, clean end-faces, and move on.
Integration and Compatibility
The FAP6WHAQDLCZ is designed for use within Panduit's Opticom® fiber adapter panel ecosystem. Correct installation requires a compatible Panduit panel frame or housing — verify the specific frame model against Panduit's compatibility documentation before procurement. LC keyed adapters require LC keyed connectors on the patch cords; standard LC connectors will not mate with keyed adapters, which is the point of the keyed format but also a procurement consideration if your existing patch cord inventory is standard LC. For larger fiber consolidation needs, fiber optic assemblies and accessories are available to complement this panel in a complete channel build.
Frequently Asked Questions
Q: What does the H-Aqua color designation mean on the FAP6WHAQDLCZ?
A: H-Aqua is a color identification used in Panduit's Opticom fiber adapter panel line to differentiate panel types, fiber grades, or network segments within a structured cabling installation. It supports at-a-glance identification in high-density rack environments.
Q: How many fiber connections does the FAP6WHAQDLCZ support?
A: The panel has 6 keyed LC adapter positions. Since LC connectors are duplex, this panel supports up to 12 individual fiber terminations per panel unit.
Q: Can I use standard (non-keyed) LC patch cords with the FAP6WHAQDLCZ?
A: No. The keyed LC adapter format requires keyed LC connectors. Standard LC patch cords will not mate with keyed adapters — this is intentional to prevent misconnection, but it means your patch cord inventory must also use the keyed format.
Q: What Panduit housing or frame does the FAP6WHAQDLCZ install into?
A: The FAP6WHAQDLCZ is part of Panduit's Opticom fiber adapter panel system and requires a compatible Panduit panel frame or housing. Verify specific frame compatibility with Panduit's product documentation or your Panduit catalog before ordering.
Q: Is the FAP6WHAQDLCZ suitable for both single-mode and multimode fiber?
A: Fiber type compatibility (single-mode vs. multimode) depends on the specific adapter sleeves used in the panel. Confirm the adapter sleeve specification against your fiber type requirements before deployment.
The FAP6WHAQDLCZ is one of those components that looks trivial on a BOM until you're standing in a telecom room at 11 PM trying to figure out why a circuit is dark — and the answer is a misconnected LC. The keyed adapter format on this panel is the right call for any installation where multiple fiber types or polarities share panel space, because it makes misconnection physically impossible at the adapter level, not just procedurally discouraged.
Technical Highlights:
- 6-Position Keyed LC Format: Twelve fiber terminations per panel in a keyed configuration — density without the misconnection risk that comes with standard LC in mixed-fiber environments.
- H-Aqua Color Coding: Panduit's Opticom color scheme means this panel is visually distinct from adjacent panels on the same frame, cutting trace time in dense racks where every minute of technician time has a cost.
- Opticom Platform Integration: Designed specifically for Panduit's Opticom housing system — not a universal fit. The platform integration means mechanical alignment is engineered-in, which matters for insertion loss consistency over thousands of mating cycles.
Deployment Considerations:
- Housing compatibility is non-negotiable: the FAP6WHAQDLCZ requires a Panduit Opticom-compatible frame. Procuring the panel without confirming the frame model is a common mistake that delays installation.
- Keyed LC adapters require keyed LC patch cords throughout the channel — if your existing patch cord stock is standard LC, budget for replacements or plan the keyed segments carefully to avoid a mixed inventory problem.
This panel is the right pick for MDF/IDF rooms and data center fiber distribution points where multiple fiber grades or polarities are managed on shared hardware and misconnection carries real downtime risk — not for installations where standard LC is consistent end-to-end and keying adds no practical protection.
