Signamax UFE-B-06ST 6-Port ST Fiber Adapter Plate

Overview

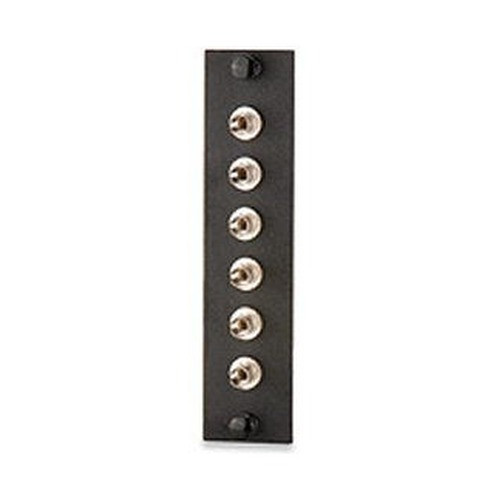

The Signamax UFE-B-06ST is a 6-port adapter plate designed to terminate ST fiber optic connectors within Signamax fiber optic enclosures. This plate facilitates the connection of up to six OM1 or OM2 multimode fiber optic cables, providing a structured interface for network backbone connectivity in surveillance systems or data centers. Its bronze sleeve ensures precise alignment for optical signals.

Compatibility

This adapter plate is engineered for use with Signamax fiber optic enclosures, including their patch panels and wall-mount boxes. It is specifically designed for ST connectors and supports OM1 and OM2 multimode fiber types, commonly deployed for shorter-distance, high-bandwidth applications. Ensure your enclosure supports standard adapter plate form factors for seamless integration.

Installation Notes

Installation involves snapping the UFE-B-06ST plate into a compatible Signamax fiber enclosure. The ST connectors are pre-loaded onto the plate, simplifying field termination. Ensure proper fiber optic cleaning procedures are followed before and during connector mating to maintain signal integrity and prevent contamination. The bronze sleeve offers durability and precise alignment.
