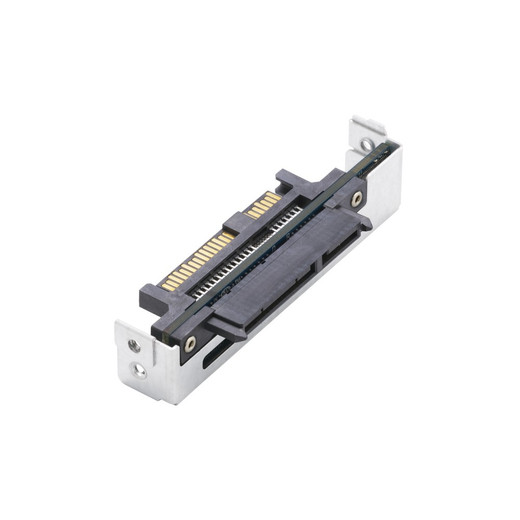

QNAP 6 GBPS 2.5-Inch Sas To SATA Drive Adapte - QDA-SA3-4PCS

QNAP QDA-SA3-4PCS SAS to SATA 2.5-Inch Drive Adapter 4-Pack

Overview

The QDA-SA3-4PCS is a four-pack of 6 Gbps SAS-to-SATA drive adapters from QNAP, designed to let standard 2.5-inch SATA SSDs or hard drives occupy SAS drive bays in compatible QNAP storage systems. If your enclosure ships with SAS backplanes but your drives are SATA — a common scenario when mixing storage tiers or sourcing cost-effective SATA SSDs for a SAS-equipped chassis — these adapters bridge the interface gap without requiring a backplane swap or additional HBA. Each adapter converts the SAS bay connector to accept a 2.5-inch SATA device, passing data at up to 6 Gbps, which matches the maximum throughput of SATA III and won't become a bottleneck for SATA SSDs or spinning drives. Buying as a four-pack keeps spares on hand for future drive additions without separate orders.

Compatibility

The QDA-SA3-4PCS is designed for use with QNAP NAS enclosures and expansion units that feature SAS drive bays — specifically models in the QNAP high-density and rackmount families equipped with SAS backplanes. Verify that your specific QNAP chassis model supports SAS-to-SATA adapter use before deploying; not every SAS backplane supports SATA negotiation even with a physical adapter present. Consult the QNAP storage catalog or your chassis documentation for confirmed compatibility. These adapters are not intended for use with third-party or non-QNAP enclosures, and SATA drive performance is bounded by the drive itself — installing a SATA HDD will not yield SAS-class IOPS regardless of the adapter.

Installation Notes

Seat the 2.5-inch SATA drive into the QDA-SA3-4PCS adapter frame before inserting into the SAS bay carrier. Ensure the SATA data and power connectors are fully engaged — partial seating causes intermittent detection. Hot-swap support depends on the host enclosure's backplane capabilities, not the adapter itself. Check your NAS enclosure documentation to confirm hot-swap behavior before pulling drives under load.
