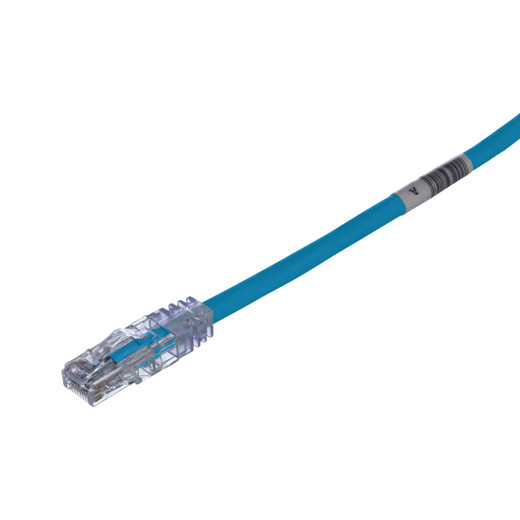

Panduit UTPSP5BUY Patch Cord
Overview
The Panduit UTPSP5BUY is a 5-foot Category 6 unshielded twisted pair (UTP) patch cord designed for reliable network connectivity. Built with 24 AWG stranded copper conductors and a PVC jacket, this cord supports applications up to 10GBASE-T Ethernet, ensuring high-speed data transfer for demanding network environments. Its blue color and clear boots aid in visual identification and cable management. This patch cord is rated CM for flame retardancy, making it suitable for in-wall or riser installations.
Compatibility
This Panduit patch cord is engineered to exceed ANSI/TIA-568.2-D and ISO 11801 Class E standards, ensuring compatibility with network equipment supporting Ethernet 10BASE-T, 100BASE-T, 1000BASE-T, and 10GBASE-T. It is also rated for 2500 connection cycles with IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) Power over Ethernet standards, making it suitable for powering devices like IP cameras, wireless access points, and VoIP phones without requiring separate power supplies. The T568B wiring scheme is standard for most enterprise networks.
Installation Notes
The Panduit UTPSP5BUY features a nominal cable outside diameter of 0.235 inches (6mm) and clear modular 8-position plugs. It is rated for operation between -10°C (14°F) and 60°C (140°F), and storage temperatures from -40°C (-40°F) to 70°C (158°F). The CM flammability rating ensures compliance with building codes for riser applications. This patch cord is also RapidID™ enabled for quick identification in complex installations.
