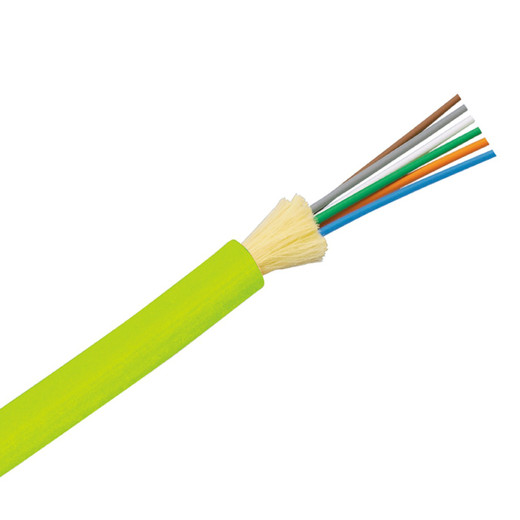

Panduit FODPW24Y OM5 24-Fiber Indoor Distribution Cable

Overview

The Panduit FODPW24Y is a 24-fiber OM5 multimode indoor distribution cable designed for high-density network backbone applications. Its 900um buffered fibers offer individual protection, simplifying termination and field splicing. The Plenum (OFNP) rating ensures compliance for installation within air-handling spaces in commercial buildings, making it suitable for data centers, enterprise networks, and telecommunications rooms where fire safety and performance are critical. This cable provides the necessary bandwidth for 100Gbps Ethernet and beyond, supporting demanding data transmission needs.

Compatibility

This Panduit Opti-Core® cable is designed for use with standard fiber optic termination and splicing equipment. Its OM5 multimode fiber type is backward compatible with OM3 and OM4 systems but specifically engineered to support Short Wavelength Division Multiplexing (SWDM) applications, enabling higher bandwidth over existing infrastructure. It is suitable for integration with a wide range of network switches, transceivers, and patch panels that support OM5 fiber specifications.

Installation Notes

The FODPW24Y features 900um buffered fibers, providing robust protection and ease of handling during termination. The Plenum (OFNP) rating mandates installation in accordance with local building codes for air-handling spaces. Maintain a minimum bend radius of 10x cable diameter during installation and 20x cable diameter after installation to prevent signal degradation. Termination typically involves stripping the buffer coating and connecting to appropriate LC, SC, or MPO connectors.
