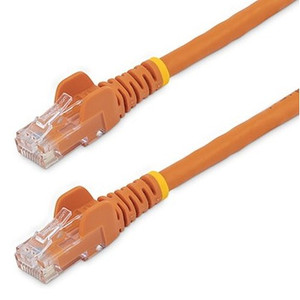

Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Description

StarTech N6PATCH50WH 50ft Cat6 Ethernet Cable White 100W PoE

Overview

The StarTech N6PATCH50WH is a 50-foot, white, Category 6 Ethernet cable designed for reliable data transmission and high-power Power over Ethernet (PoE) delivery. Its stranded copper conductors and CMG fire rating make it suitable for in-wall installations in commercial environments. This cable supports data rates up to 10Gbps over shorter distances and up to 100W of PoE power, making it ideal for powering high-demand network devices like surveillance cameras, access control panels, and wireless access points without requiring separate power injectors or outlets.

Compatibility

This Cat6 cable is backward compatible with Cat5e and Cat5 networks. It is designed to work with any standard RJ45-equipped network devices, including:

  • IP cameras supporting 100W PoE (e.g., high-performance PTZ cameras with IR illumination).
  • Managed and unmanaged network switches with PoE+ (802.3at) or PoE++ (802.3bt) capabilities.
  • Wireless access points requiring high power input.
  • Networked computers, servers, and other Ethernet-enabled devices.
It supports 1/2.5/5Gbps data rates and 10Gbps up to 160 feet (48.8 meters). For full 10Gbps performance at its maximum length of 50 feet (15.2 meters), ensure your network infrastructure supports these speeds.

Installation Notes

The cable features stranded copper conductors, offering greater flexibility than solid copper, which is beneficial for installations requiring frequent bending or routing through tight spaces. The CMG (Communications Multipurpose Grade) rating indicates it is suitable for use in general-purpose riser applications. Operating and storage temperatures range from -20°C to 80°C (-4°F to 176°F), with humidity tolerance between 15% and 65%.

What's in the Box

  • 1 - 50ft White Cat6 Ethernet Cable
Specifications
Cable Length: 50.0 ft [15.2 m]
Product Length: 50.0 ft [15.2 m]
Product Width: 0.5 in [1.3 cm]
Product Height: 0.6 in [1.6 cm]
Weight Of Product: 1.4 lb [0.7 kg]
Wire Gauge: 24 AWG
Conductor Type: Stranded Copper
Cable Jacket Material: PVC - Polyvinyl Chloride
Fire Rating: CMG Rated (General Purpose)
Wiring Standard: TIA/EIA-568-B.1-2001 T568B
Performance Cable Rating: CAT6 - 250 MHz
Connector A: 1 - RJ-45
Connector B: 1 - RJ-45
Operating Temperature: -20C to 80C (-4F to 176F)
Storage Temperature: -20C to 80C (-4F to 176F)
Humidity: 15 ~ 65%
Color: White
PoE Support: 100W
Data Rate: 1/2.5/5Gbps, 10Gbps up to 160'
Number Of Conductors: 4 Pair UTP
Connector Plating: 50-micron gold
Warranty: Lifetime
Brand: StarTech
MPN: N6PATCH50WH
Type: Ethernet Cable
Connectivity: Ethernet
Power: 100W
