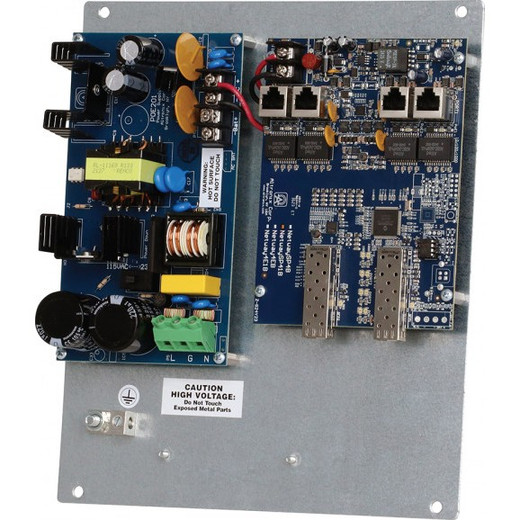

Altronix 4PT FIBER MED CONV/2SFP/BP - NETWAYSP41PL

Altronix NETWAYSP41PL Concise Descriptor

Overview

The Altronix NETWAYSP41PL is a 4-port Ethernet to fiber media converter designed to extend the reach of IP-based surveillance networks beyond the limitations of copper cabling. It facilitates the transmission of data over fiber optic infrastructure, ideal for connecting remote cameras or network segments back to a central NVR or VMS over distances far exceeding standard Ethernet limits. This unit is particularly useful in large campus environments or where electromagnetic interference from power lines or heavy machinery could disrupt copper connections. The NETWAYSP41PL model specifically includes two SFP (Small Form-factor Pluggable) slots, offering flexible fiber optic transceiver selection.

Compatibility

This media converter is designed to interface with standard Ethernet network devices. It supports any IP camera, NVR, or network switch that adheres to IEEE 802.3af/at/bt standards for PoE delivery and IEEE 802.3u/ab/az standards for Ethernet connectivity. The two SFP slots allow for compatibility with a wide range of single-mode and multi-mode fiber transceivers (sold separately), enabling connections to various fiber optic network infrastructures and distances.

Installation Notes

The NETWAYSP41PL requires the installation of appropriate SFP transceivers (sold separately) into its two SFP slots to establish fiber optic links. Each of the four RJ45 ports supports auto-detection of MDI/MDI-X and auto-negotiation for speed (10/100/1000 Mbps). Power is supplied via an included 110VDC to 24VAC power adapter, which connects to the unit's barrel connector. Ensure the ambient temperature remains within the operating range of 0°C to 50°C (32°F to 122°F) for optimal performance.

What's in the Box

• 1x Altronix NETWAYSP41PL Media Converter
• 1x 110VDC to 24VAC Power Adapter
• 1x Mounting Bracket
